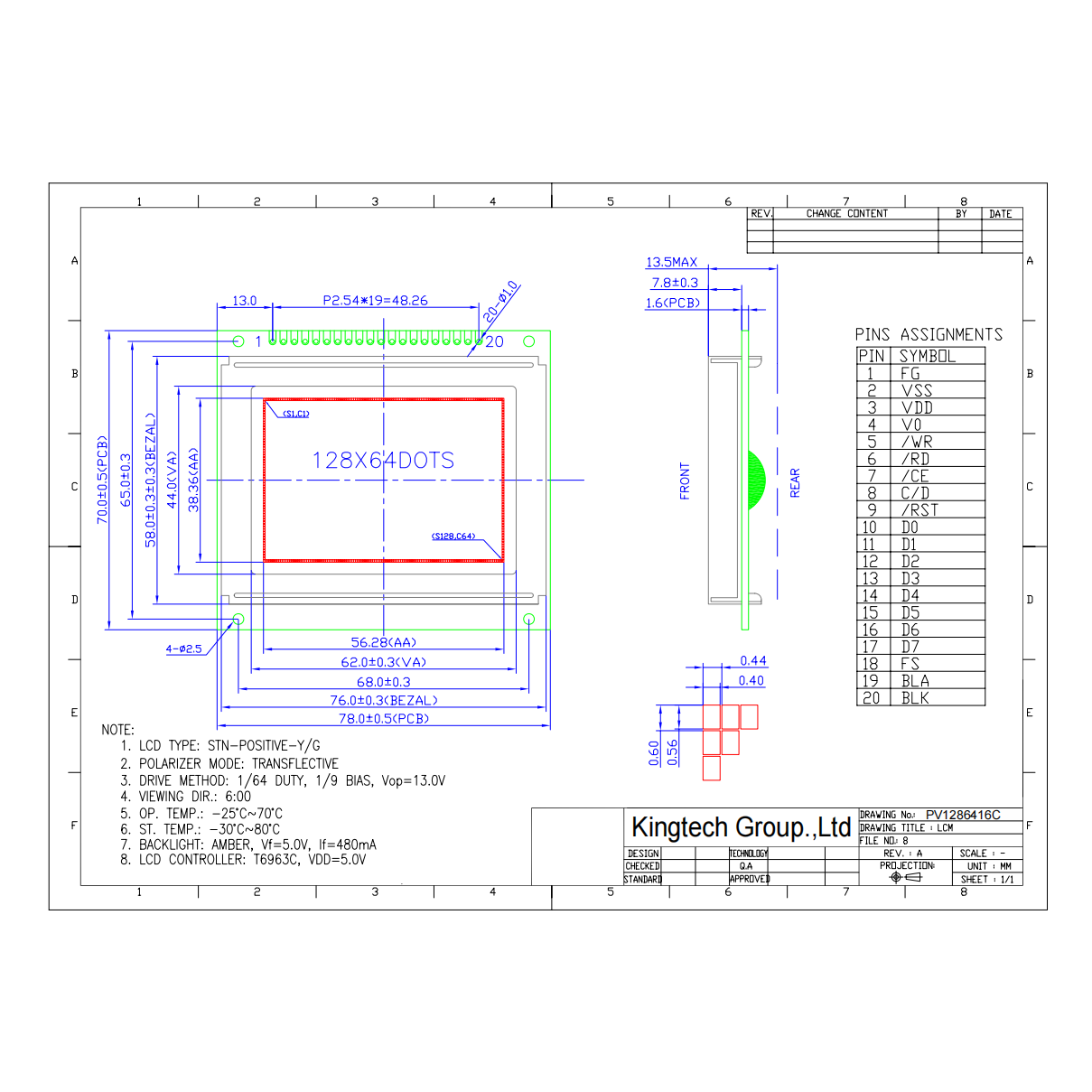

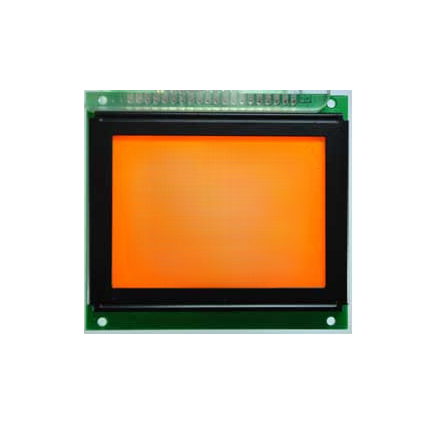

Display format | 128×64 dots, Amber LED Module |
Display mode | STN, Y/G, Positive, Transflective |
PCB size | 78x70x13.5mm |
VA size | 62x44mm |
AA size | 56.28×38.36mm |
dot size | 0.56×0.40mm |
Viewing angle | 0.25 |
Driving method | 1/64 Duty, 1/9 Bias |
Controller | T6963 or Equivalent |
Backlight | Amber, Vf=5.0+/- 0.2V, If<480mA |
Topr | -25~+70°c |
Tstg | -30~+80°c |
1)Display format:128×64 dots, Amber LED Module
2) Display mode: STN, Y/G, Positive, Transflective
3) PCB size: 78x70x13.5mm
4) VA size: 62x44mm
5) AA size: 56.28×38.36mm
6) dot size: 0.56×0.40mm
7) Viewing angle: 6:00
8) Driving method: 1/64 Duty, 1/9 Bias
9) Controller: T6963 or Equivalent.
10) Backlight: Amber, Vf=5.0+/- 0.2V, If<480mA
11) Topr: -25~+70°c
12) Tstg: -30~+80°c
