500 nits 800×480 ips custom touch display lcd tft

Item 7inch 800×480 IPS LCD display
Model No PV07046Y0140X
Resolution 800×480
Outline Dimension 165.4*104.59*5.8
Active Area(mm) 152.4*91.44
Interface LVDS 6/8 bit
Viewing Angle All
Display Mode Transmissive / Normally Black
Operating Temperature -20℃~70℃
Storage Temperature -30℃ to +80℃
Brightness 500nits
Touch screen Can custom capacitive touchscreen

For product pricing,customization,or other inquiries:

Share to:

7.0 inch 800×480 WVGA LVDS infterface IPS TFT LCD display module

1. PV07046Y0140X mainly application for Smart Home, industrial device , logistics device and medical devices.
2. It with 800×480 resolution , IPS / Free / Full / All / Wide viewing angle, High brightness/Sunlight readable/outdoor/500nits, LVDS 6/8 bit interface.
3. And it can custom the capacitive or resistive touch panel  as customer ‘s requirement .
4. It is the A grade product , with good quality for the industrial application

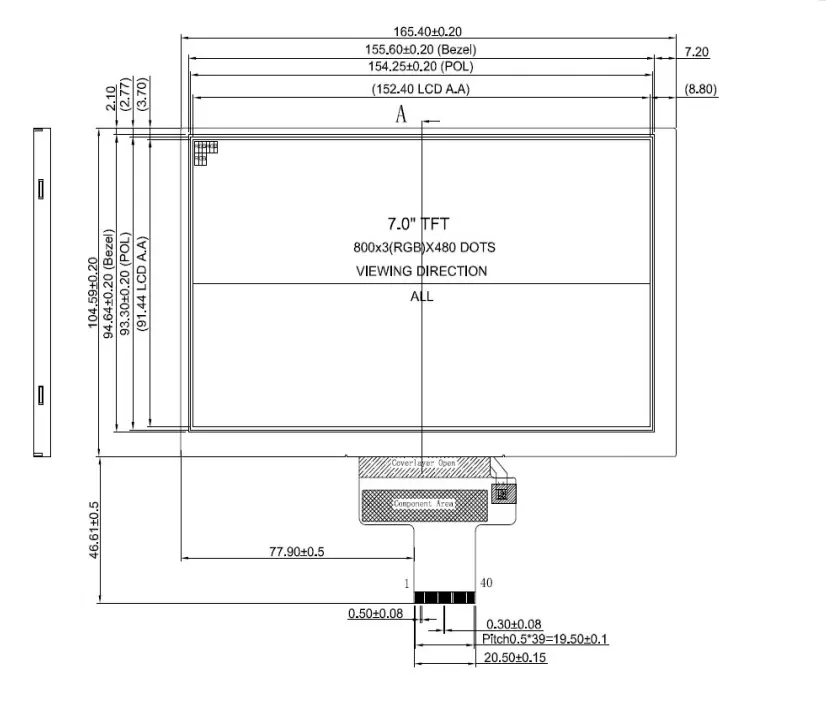

7.0 inch 800×480 IPS LCD display front view

PV07046Y0140X front

7.0 inch 800×480 IPS LCD display back view
