Kingtech 2.0 inch 240x320 resolution TFT LCD display
Kingtech 2.0 inch 240x320 resolution TFT LCD display

Kingtech 2.0 inch 240×320 resolution TFT LCD display

Item 2.0 inch 240×320 80 MCU16bit/ 80 MCU8bit LCD display

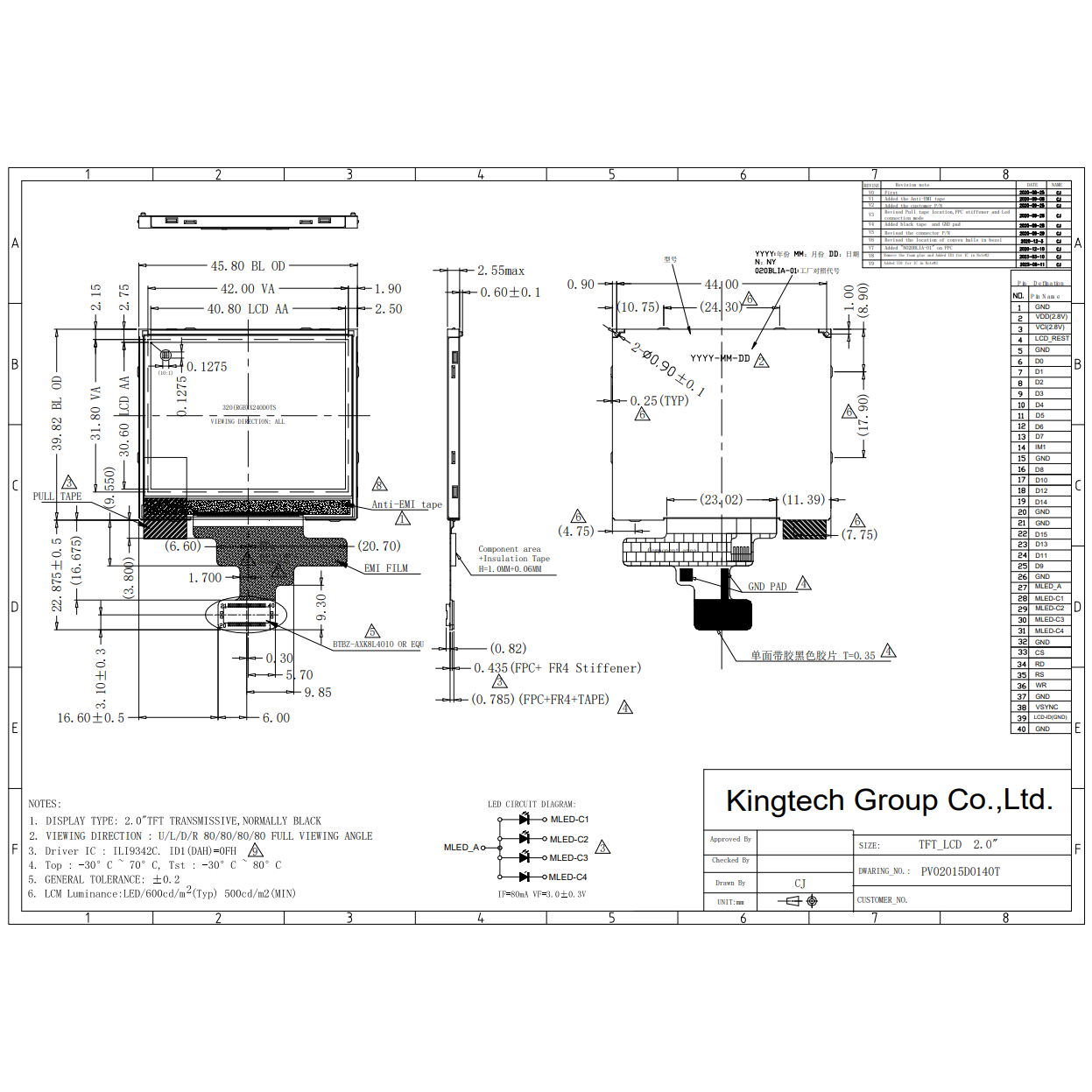

Model No. PV02015D0140T
Resolution 240*320
Outline Dimension (mm) 45.80*39.82*2.55
Active Area (mm) 40.80*30.60
Viewing Angle IPS
Brightness 600nits
Interface 80 MCU16bit/ 80 MCU8bit
Backlight 1*4LED
Driving IC ILI9342C
PIN No. 40
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial, smart watch

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. Small LCD display
  2. IPS/Wide/Free/All viewing angle
  3. Can custom resistive touch and capacitive touch
  4. QVGA resolution
