Kingtech PV10109LZR40G screen 10 inch IPS 1280*800 1000nits display with wide working temperature -30~80℃.
Screen 10 inch has a resolution of 1280*800 pixels and RGB vertical stripe color. It has a good viewing Angle and rich colors.
Regardless of the angle from which you observe, a highly vivid picture can be witnessed.
Screen 10.1 inch with high brightness and wide working temperature
High brightness displays has always been our strength. Usually high brightness products are accompanied by heat problems. Our products have high brightness and can also work at a temperature of -30~80, with very high reliability.
The feature of high brightness of 1000nits and wide working temperature of -30 to 80 ℃ make it widely used in industrial control, medical treatment and many outdoor equipment. For outdoor applications, we also treat our products with Anti-UV. Choose Kingtech products, you will get a good quality assurance.
This screen10.1 inch support LVDS interface, which is a standard 40 pin one.
Thus, you will have more options for the connector.

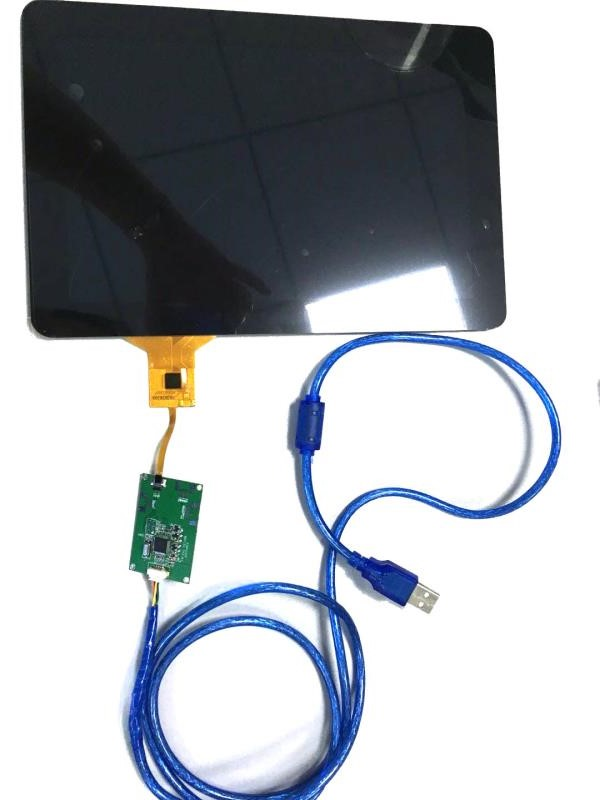

Screen 10.1 inch with Capacitive touch panel
It has a standard touch screen with the ILI2511 driver, and supports working in an environment of -30~80 ° C. In addition, both the I2C and USB interfaces are available.
We are a professional LCD module customization expert since 2003. Customization is available for LCD panel, FPC, Backlight, and Touch panel.
Product specification
| Item | 10.1inch IPS1280*800 display |
| Model No. | PV10109LZR40G |
| Resolution | 1280*800 |
| Outline Dimension (mm) | 229.80*149*5.95 |
| Active Area (mm) | 216.96*135.60 |
| Viewing Angle | All (85/85/85/85) |
| Brightness | 1000 |
| Interface | LVDS Interface |
| Operating Temperature | -30~80 |
| Storage Temperature | -30~85 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Features | High brightness, wide working temperature, sunlight readable |
| Application | Medical, POS, Industrial Control,EV charger, Parking systems |
Product Overview
