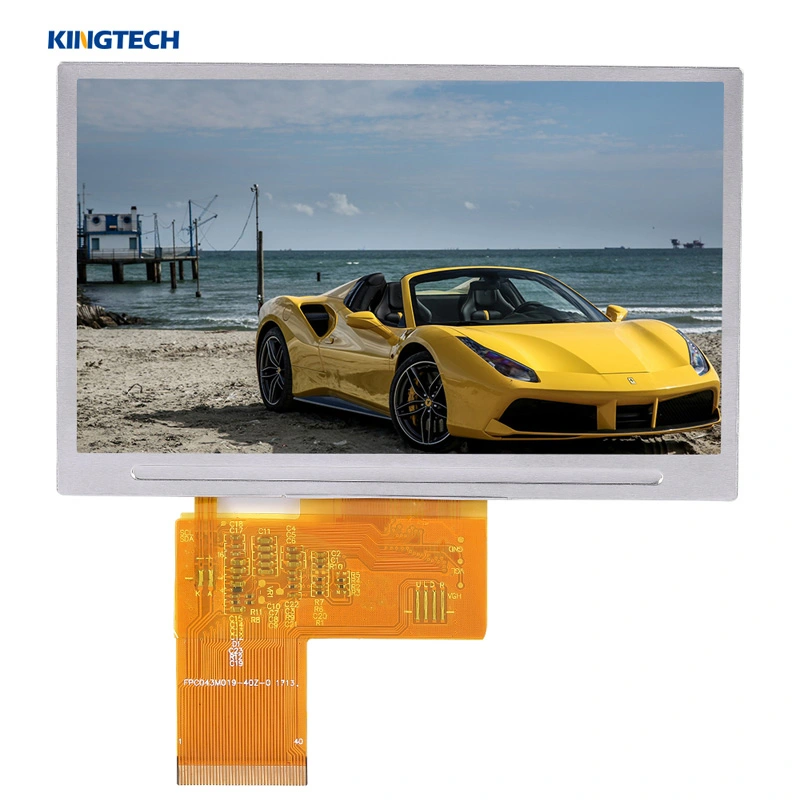

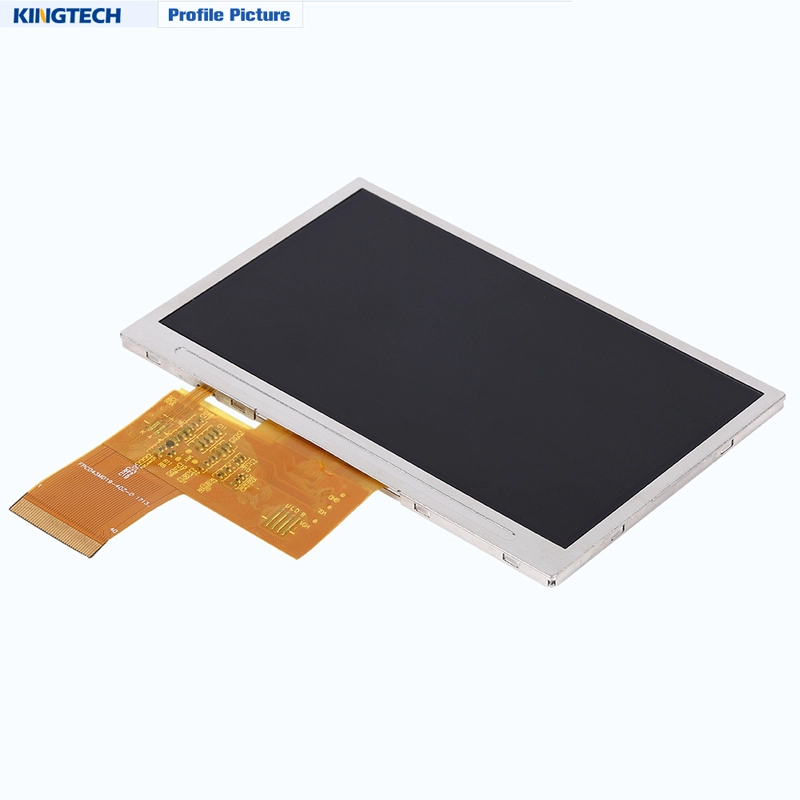

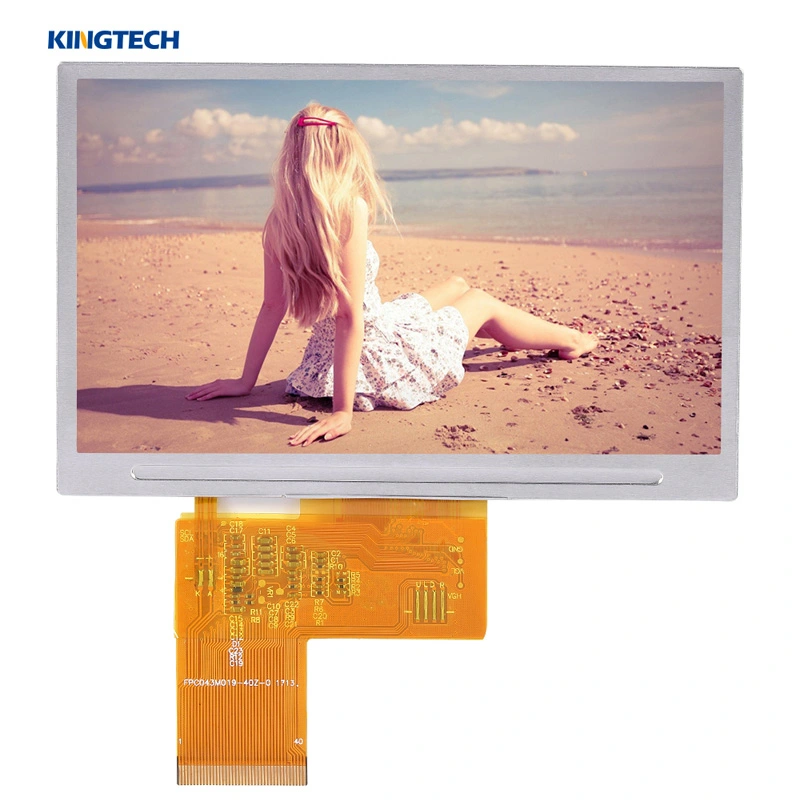

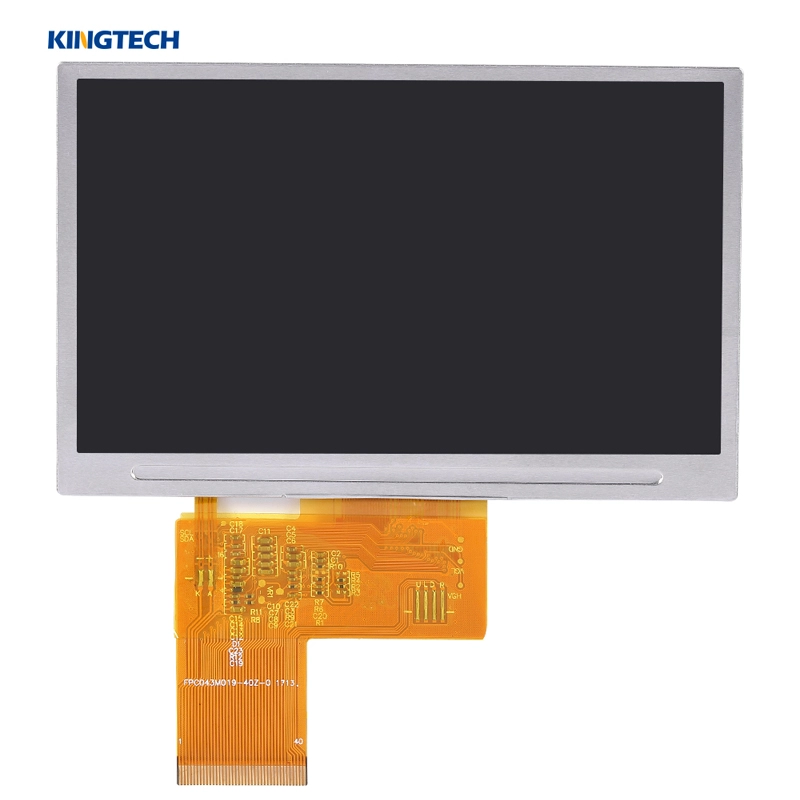

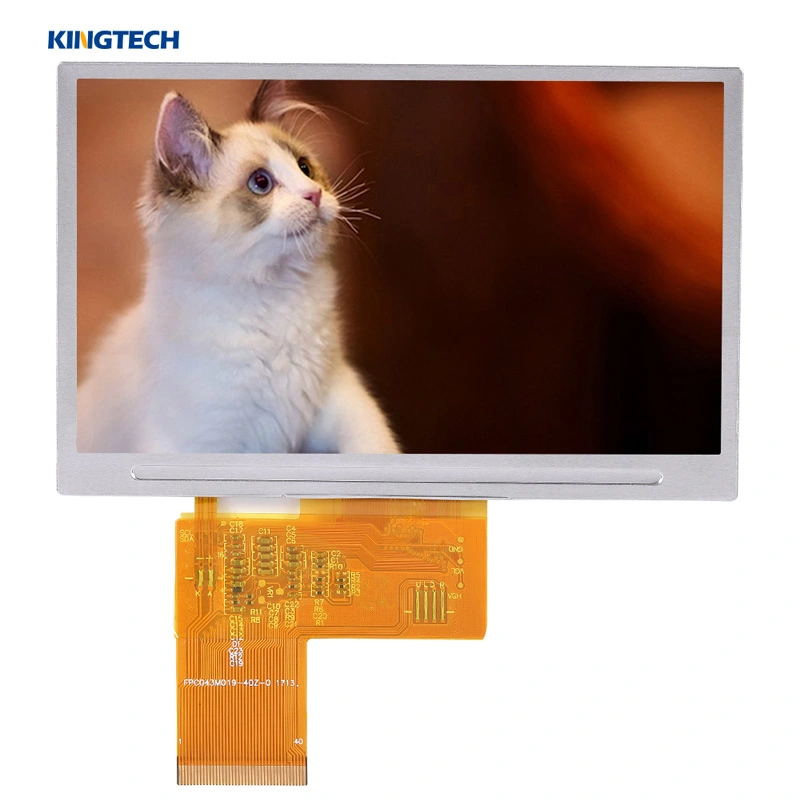

PV043029Y0130Z-CT is a diagonal size 4.3 inch TFT-LCD module with resolution WVGA 800x480 pixels. it supports MIPI interface. This module is IPS type with full View Angle 80/80/80/80.
It is landscape mode with brightness 400nits to 1000nits. The module also is available for with or without Capacitve Touch Screen. It can be operating at temperatures from -20C to +70C; its storage temperatures range from -30C to +80C.
TFT display
800*480 /WVGA
Stable supply
All/ Wide/All viewing angle/IPS
MIPI interface
400-1000nits brightness/Sunlight readable/High brightness
Capacitive touch
Medical, industrial, Smart Home Appliance, Security device
| Item | 4.3 inch TFT 800x480 module display |
| Model No. | PV043029Y0130Z-CT |
| Resolution | 800*480 |
| Outline Dimension (mm) | 105.9*67.60*8.8 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | IPS |
| Brightness | 400-1000nits |
| Interface | MIPI |
| Backlight | 8*2LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Capacitive touch screen |
| Application | Medical, hand-held device, industrial, Smart home Appliance |
The 4.3 inch 800*480 WVGA TFT display module can be used for Medical, Smart Home Appliance, industrial or others.
