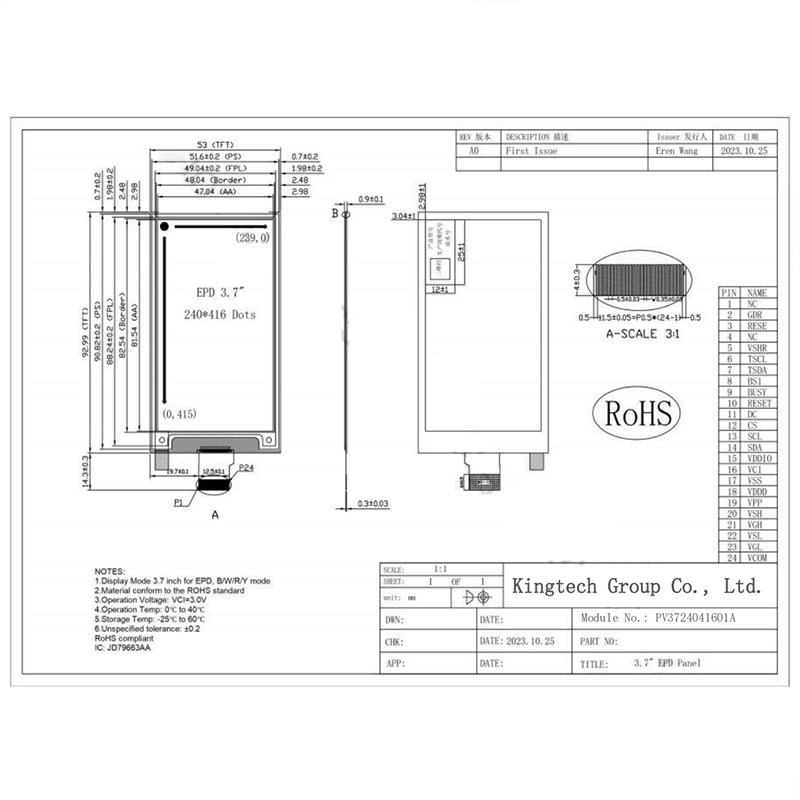

| No. | Item | Specification |
| 1 | Panel Size | 3.7”inch |
| 2 | Number of Pixels | 240(H)*416(V) |
| 3 | Panel Size | 53(H)x92.99(V) x0.9(D) mm |
| 4 | Border | 48.04(H)x82. 54(\V) mm |
| 5 | Active Area | 47.04(H)x81.536(V) mm |
| 6 | Pixel Pitch | 196(H)x196(V) um |
| 7 | PPI | 130 |
| 8 | Dispaly Colors | 4-Color(BlackWhite/Red/Yellow) |
| 9 | Dispaly Mode | Electrophoretic Bitmap Display |
| 10 | Interface | 3-wire SPI/ 4-wire SP |
| 11 | Driver IC | JD79663AA |
| 12 | Bi-stable State | No power supply is required for the end of image refresh |
| 13 | Operation Temperature | 0°C ~ +40°C |
| 14 | Storage Temperature | -25°C ~ +60°C |
| 15 | Weight | 8.9g士0.2g |
