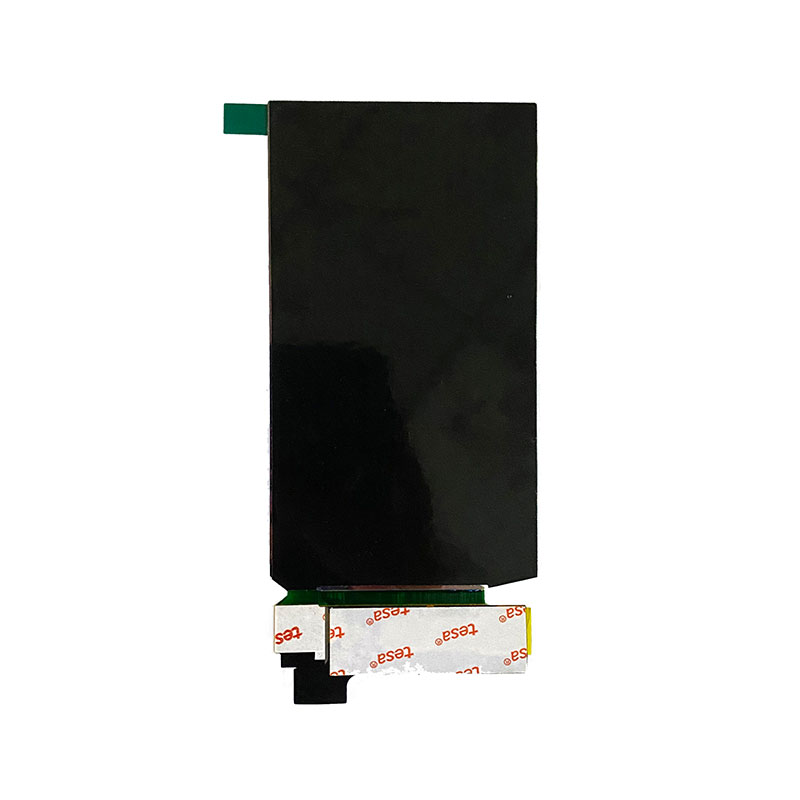

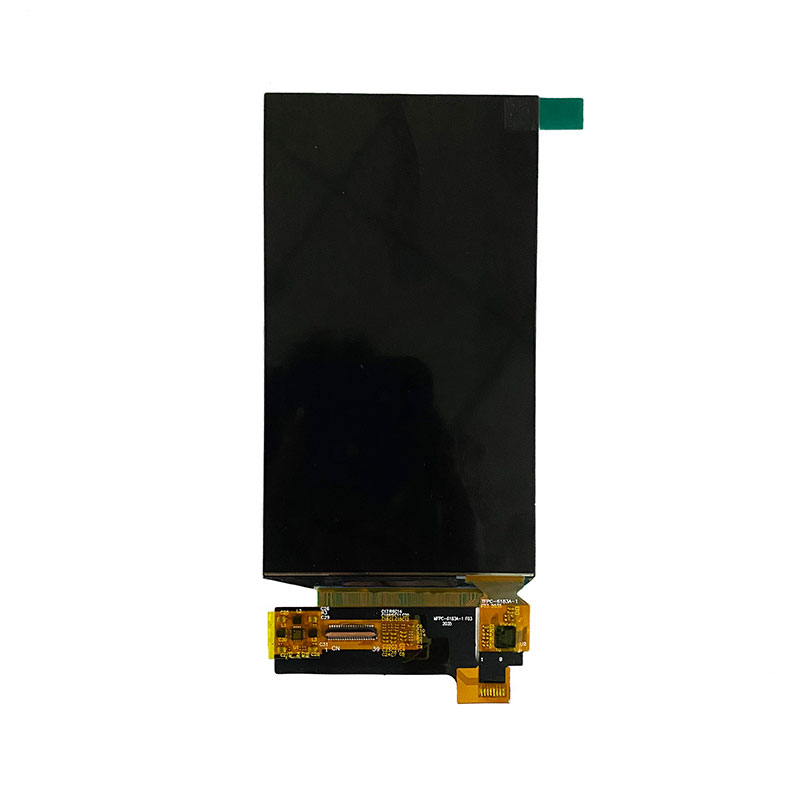

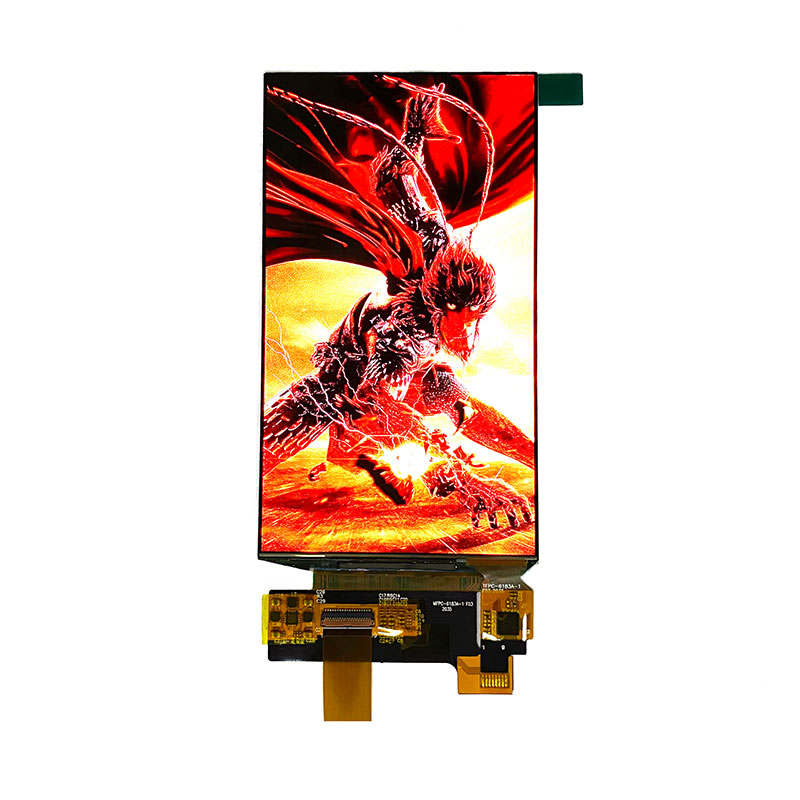

5.44 Inch 1080*1920 IPS AMOLED Display

Kingtech 5.44 inch 1080*1920 IPS AMOLED display supply very stable. This 5.44 inch supports MIPI interface. In addition, the 5.44 inch AMOLED module brightness is 350nits, and this 4.3 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to customer’s requirements.

Features of 5.44 Inch 1080*1920 IPS AMOLED Display

All/Free/Wide viewing angle/IPS
AMLED
1080*1920
MIPI interface
Stable supply
Can custom capacitive/ resistive touch screen

Specification of 5.44 Inch 1080*1920 IPS AMOLED Display

Item	5.44 inch 1080*1920 AMOLED display
Model No	PV544001PY39B
Resolution	1080*1920
Outline Dimension	69.74(W)×126.60(H)×0.82(T)
Active Area(mm)	67.82(W)× 120.58(H)
Viewing Angle	ALL
Technology type	AMOLED
Interface	MIPI
Driving IC	RM67199
Brightness	350nits
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Touch screen	Can custom capacitive touch

Application of 5.44 Inch 1080*1920 IPS AMOLED Display

The 5.44 inch 1080*1920 IPS AMOLED LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
