10.1 inch 1280*800 landscape touch monitor

Name: 10.1 inch 1280*800 landscape touch monitor
Brand: Kingtech Group Co., Ltd.
Price: 100 USD

Kingtech 10.1 inch 1280*800 landscape touch monitor supply very stable. This 10.1 inch monitor supports USB/HDMI/RJ45/Earphone interface. In addition, the 10.1 inch monitor brightness is 250nits, and this 10.1 inch monitor is IPS / Free / Full / Wide viewing angle type. For the touch part, this 10.1 inch monitor is 10-Point capacitive touch.

Features of 10.1 inch 1280*800 landscape touch monitor

1. Vertical screen

2. 1280*800

3. Stable supply

4. TF card/USB/HDMI/RJ45/Earphone interface

5. IPS / Free / Full / Wide viewing angle

6. Capacitive touch

Specification of 10.1 inch 1280*800 landscape touch monitor

PRODUCT INFORMATION SHEET
Model No	PV101R3288A28
Product type	Android Touch
Product Description	10.1" with touch screen
System	CPU	RK3288,Quad-core cortex A17,1.8GHz
	RAM	2GB
	Internal memory	8GB
	Operation system	Android 5.1/7.1
	Touch screen	10-Point capacitive touch
Display	Panel	10.1"LED panel
	Resolution	1280x800

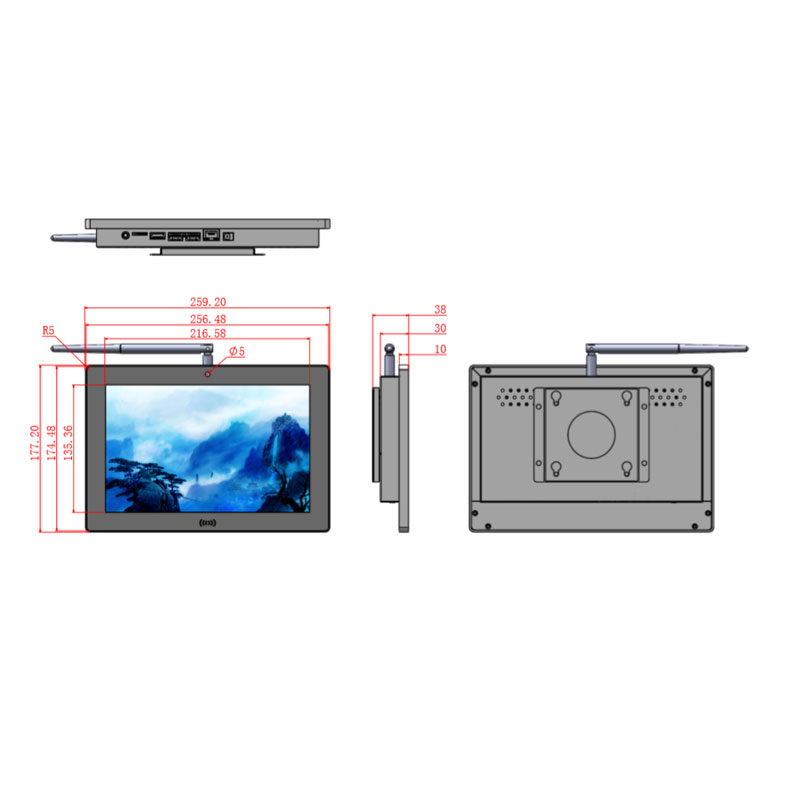

	Active area	216.96(H) X 135.96(V)
	Display mode	Normally black ,
	Viewing angle	85/85/85/85(L/R/U/D)
	Contrast ratio	600
	Luminance	250cd/m2
	Aspect Ratio	16:9
Network	WiFi	802.11b/g/n
Network	Ethernet	10M/100M ethernet
Interface	Card slot	TF card
	USB x 2	USB Host
	Micro USB	Micro USB OTG
	HDMI	HDMI output
	RJ45	RJ45
	Serial port	USB for serial port
	Power jack	DC power input
	Earphone	3.5mm earphone
Media play	Video format	MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4Kx2K(H.264)
	Audio format	MP3/WMA/AAC etc.
	Photo	jpeg
Other	Speaker	2*2W
	Power consumption	20W
	Working temp	0--40degree
	Certificates	CE/FCC/RoHS
	Language	Multi-language
Accessories	Adapter	Adapter,12V/2A
Accessories	User manual	yes

Application of 10.1 inch 1280*800 landscape touch monitor

The 10.1inch 1280*800 IPS capacitive touch monitor can be used for agricultural equipment, medical device, game console and smart home etc.
