Kingtech 10.1 inch 1280*800 IPS LCD display supply is very stable. This 10.1inch supports LVDS and MIPI interface. It is a wide work temperature of -30℃~80℃. In addition, the 10.1 inch TFT module has an existing HDMI Board. The lifetime is 50000h, the brightness is 1000nits sunlight-readable, and this 10.1-inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer's requirements.
All/Free/Wide/Full viewing angle/IPS
1280x800/WXGA
Stable supply
HDMI board/Convert board
Wide temperature/-30℃~+80℃
High brightness/Sunlight readable/outdoor/1000nits
Can custom capacitive touch screen
| Item | 10.1inch 1280x800 LCD display |
| Model No | PV101016LZR40P |
| Resolution | 1280x800 / WXGA |

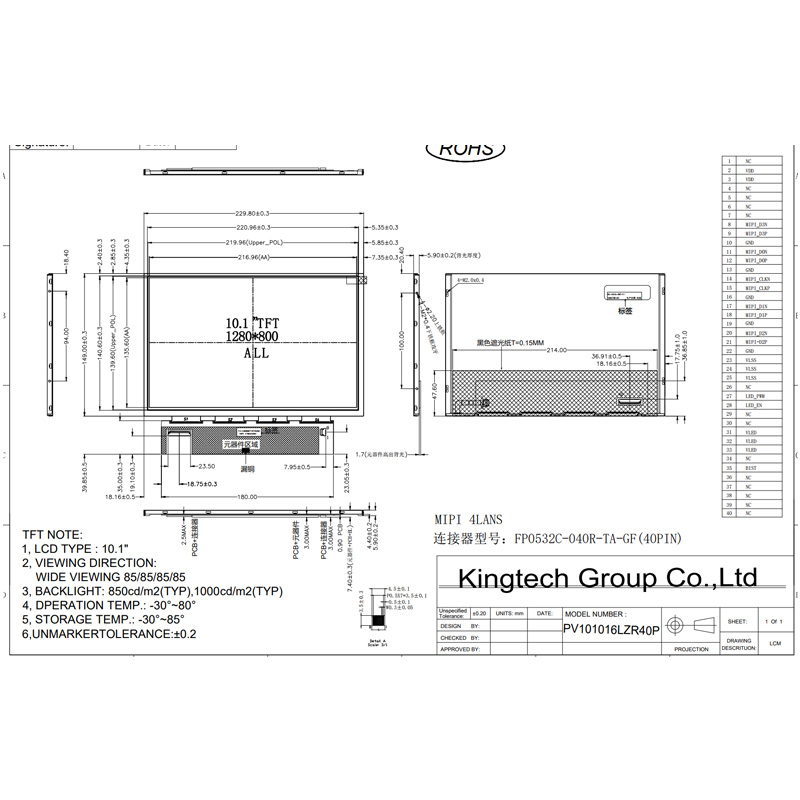

| Outline Dimension | 229.8(W)×149(H)×5.9(T) |
| Active Area(mm) | 216.96(W)×135.60(H) |
| Interface | MIPI 4LANS / LVDS |
| Brightness | 1000nits |
| Viewing Angle | All |
| LED life | 50000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 40 |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -30℃~85℃ |
| Board | Convert Board |
| Touchscreen | Can custom capacitive touchscreen |
The 10.1inch 1280x800 IPS TFT LCD display can be used for industrial control, agricultural equipment, medical device, game console, outdoor and smart homes, etc.
