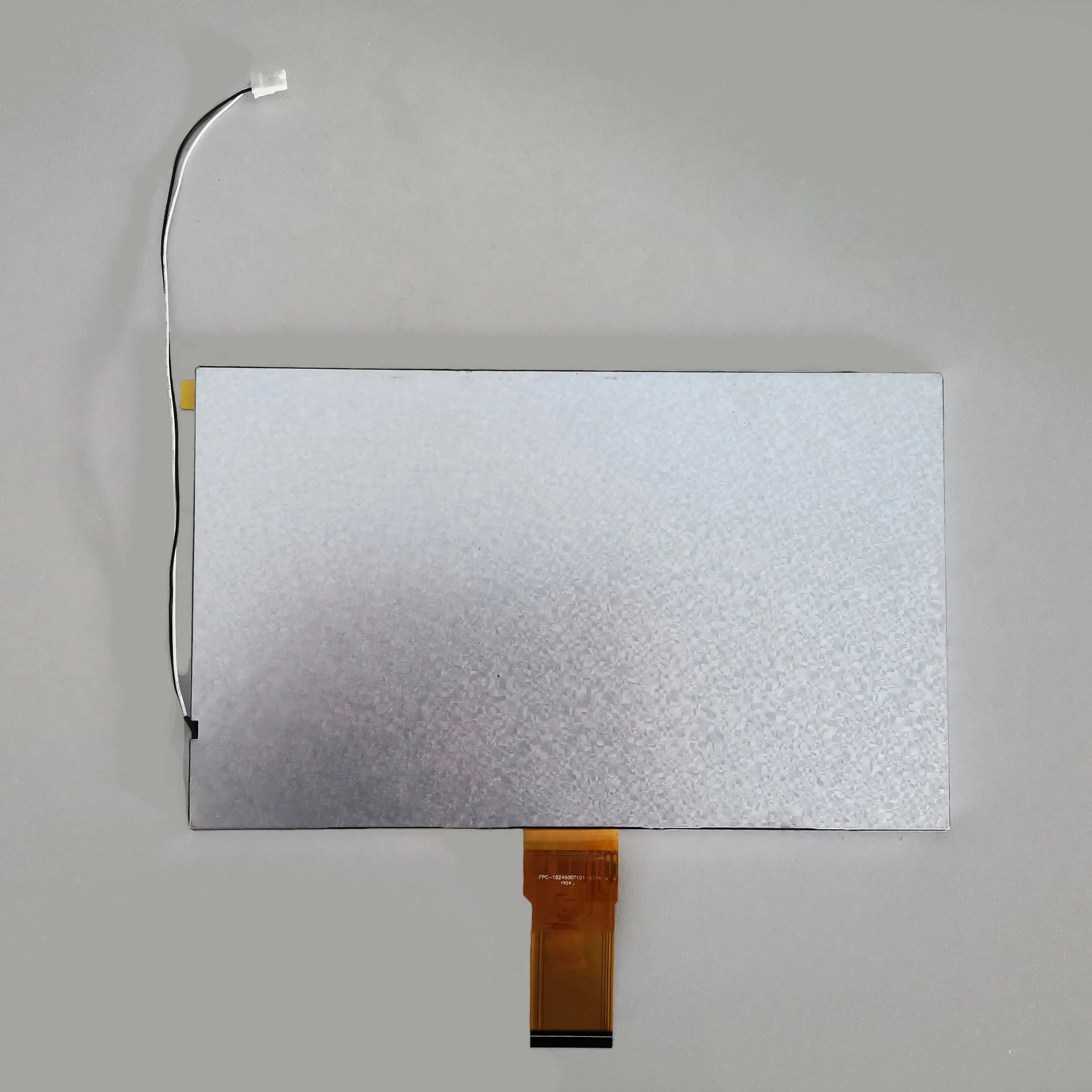

Kingtech 10.1 inch 1024*600 TFT display supply very stable. This 10.1 inch WSVGA LCD module supports MIPI interface. In addition, the 10.1 inch 1024*600 TFT display module brightness is 450 nits, and this 10.1 inch display is 6 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
10.1 inchTFT display
1024*600/WSVGA
Stable supply
6 O'clock
MIPI interface
450nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
| Item | 10.1 inch TN 1024*600 TFT display |
| Model No. | PV101037Y0130A |
| Resolution | 1024*600 |
| Outline Dimension (mm) | 235*143*4.55 |
| Active Area (mm) | 222.72*125.28 |
| Viewing Angle | 6 O'clock |
| Brightness | 450nits |
| Interface | MIPI |
| Backlight | 6*7LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, others |
The 10.1 inch 1024*600 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
