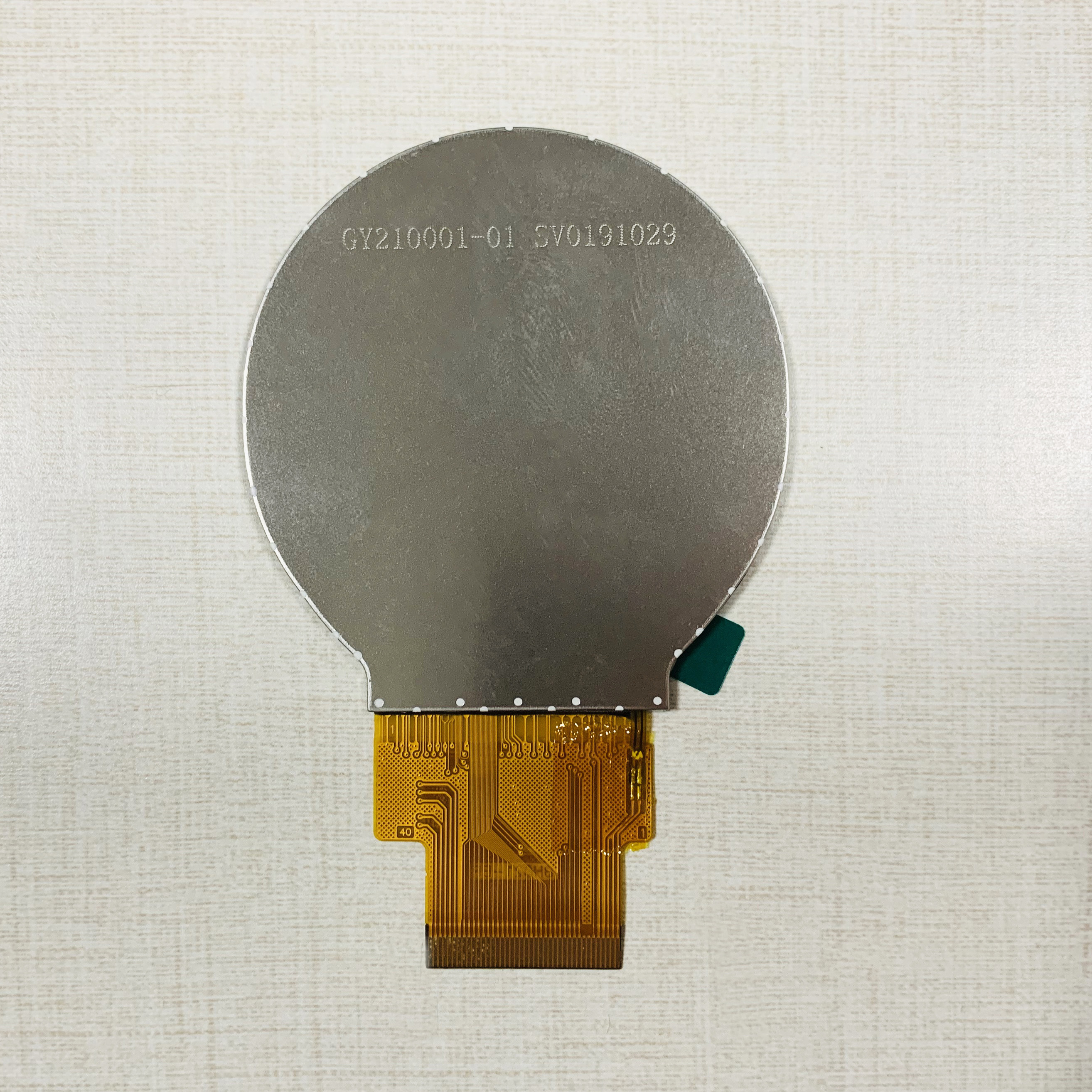

Kingtech 2.1inch 480x480 resolution IPS MIPI GC9503V round display supply very stable. This 2.1 inch round screen supports MIPI interface. In addition, the backlight is 4 LED, driver IC is GC9503V, and this 2.1 inch circular module is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can be customized according to the customer’s requirements.
All/Free/Wide viewing angle/IPS
480x480 resolution
Stable supply
Small / tiny display
MIPI interface
Round / Circular shape
Can custom capacitive touch

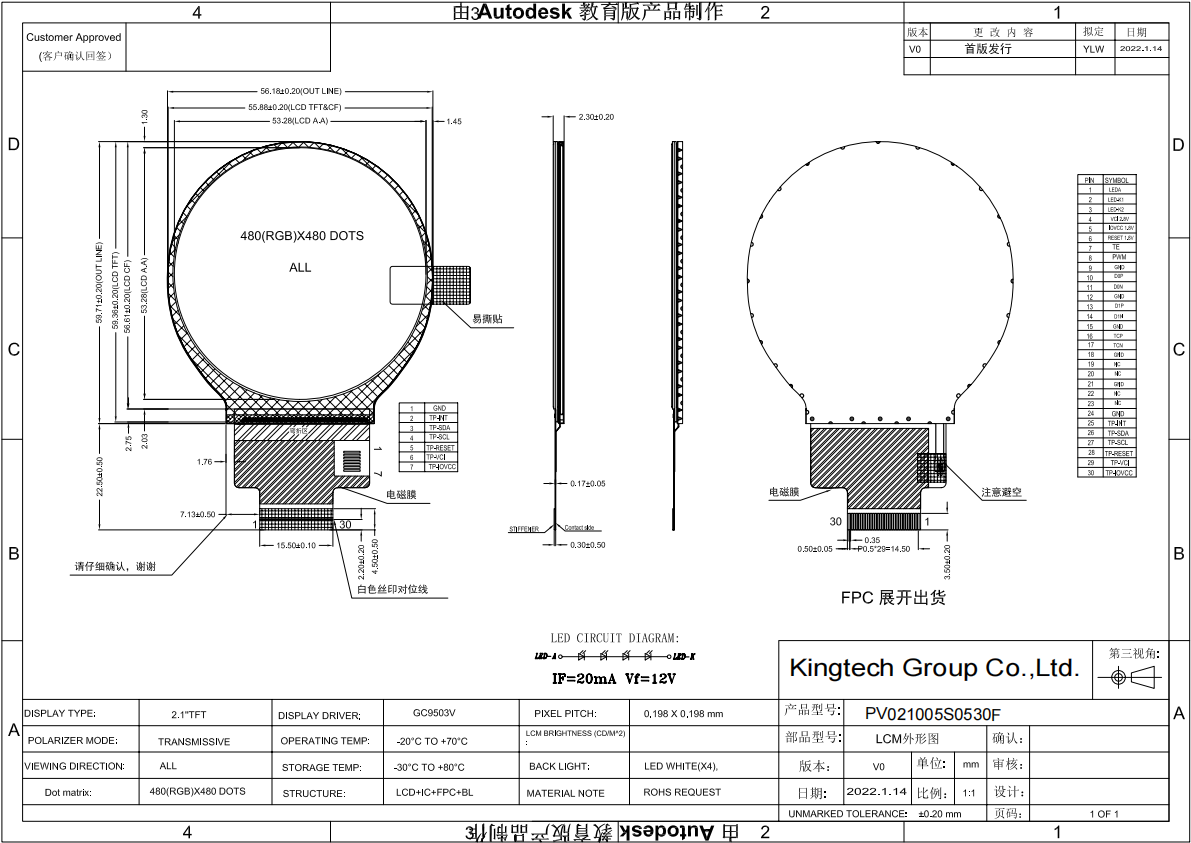

| Item | 2.1 inch 480x480 round LCD display |
| Model No | PV021005S0530F |
| Resolution | 480x480 |
| Outline Dimension | 56.18*59.71*2.3 |
| Active Area(mm) | 53.28*53.28 |
| Viewing Angle | All |
| Interface | MIPI |
| Driving IC | GC9503V |
| PIN | 30 |
| Backlight | 1*4LED |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch screen | Can custom capacitive touch |
The 2.1 inch 480X480 IPS round TFT LCD display can be used for Smart watch and wearable.
