Kingtech 2.7 inch 960*240 TFT display supply very stable. This 2.7 inch supports RGB 18bit interface. In addition, the 2.7 inch 960*240 TFT display module brightness is 180 nits, and this 2.7 inch display is 9 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
2.7 inch TFT display
960*240
Stable supply
9 O'clock
RGB 18bit interface
180nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
| Item | 2.7 inch TN 960*240 LCD display |
| Model No. | PV02701TD40A-R |
| Resolution | 960*240 |

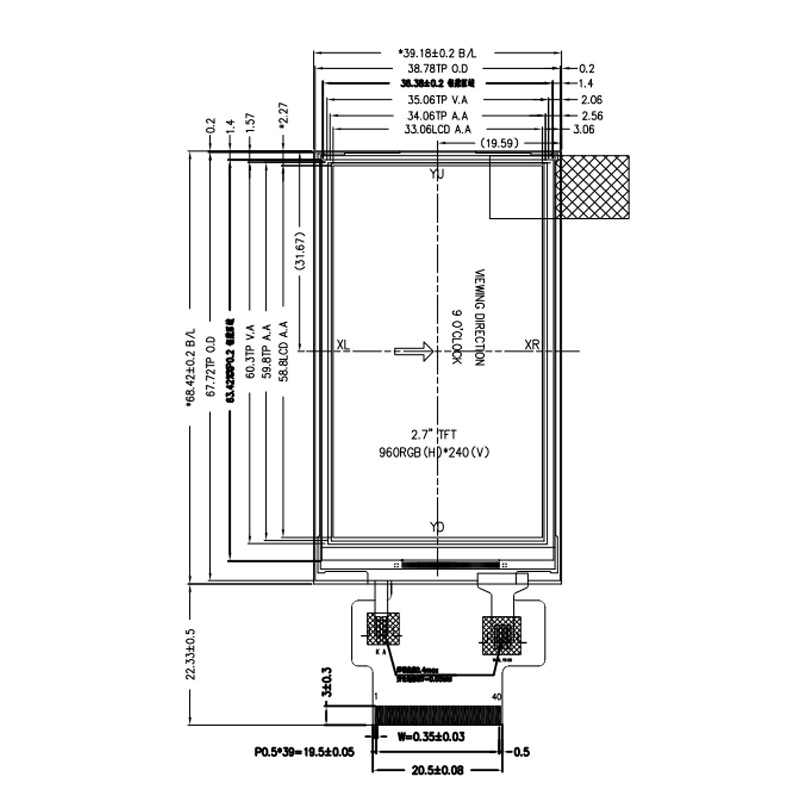

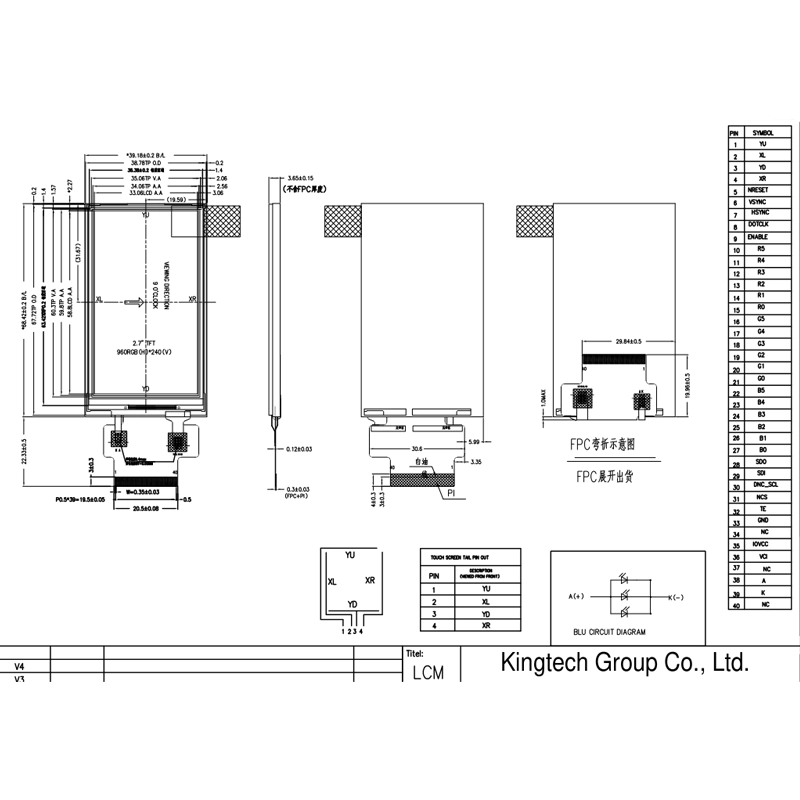

| Outline Dimension (mm) | 39.18*68.42*3.65 |
| Active Area (mm) | 33.06*58.8 |
| Viewing Angle | 9 O'clock |
| Brightness | 180nits |
| Interface | RGB 18bit |
| Backlight | 1*3LED |
| Driving IC | ILI8961 |
| PIN No. | 40 |
| Operating Temperature | -10~60 |
| Storage Temperature | -20~70 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 2.7 inch 960*240 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
