21.5 inch 1920*1080 Landscape TFT LCD display

Kingtech 21.5 inch 1920*1080 Landscape TFT LCD display supply very stable. This 21.5 inch supports LVDS interface. In addition, the 21.5 inch TFT module brightness is 250nit , and this 21.5 inch screen is IPS / Free / Full / Wide viewing angle type. For the touch part, Kingtech can custom the touch according to customer's requirements.

Features of 21.5 inch 1920*1080 Landscape TFT LCD display

Landscape / Horizontal screen
1920*1080
Stable supply
IPS / Free / Full / Wide viewing angle
High color gamut/ 72% of NTSC
LVDS interface
Can custom capacitive touch and resistive touch

Specification of 21.5 inch 1920*1080 Landscape TFT LCD display

Item	21.1inch 1920*1080 LCD display
Model No	PV215002YH30C
Resolution	1920*1080

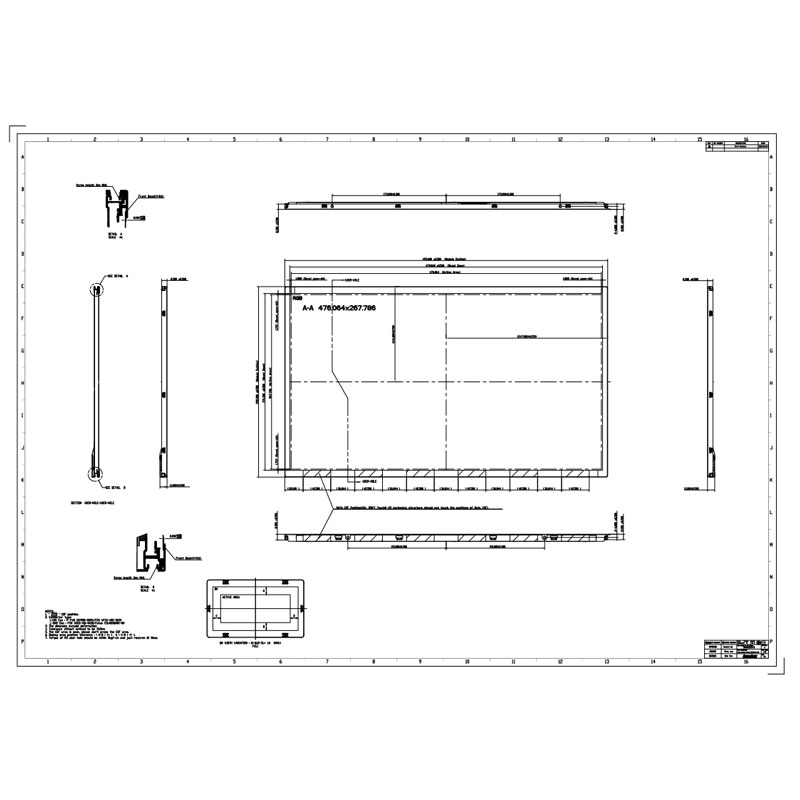

Outline Dimension	495.6292.211.0
Active Area(mm)	476.064*267.786
Interface	LVDS
Brightness	250
Viewing Angle	All
Display Mode	Transmissive / Normally Black
PIN	30
Operating Temperature	0℃~50℃
Storage Temperature	-20℃~60℃
Color Gamut	72% of NTSC

Application of 21.5 inch 1920*1080 Landscape TFT LCD display

The 21.5inch 1920*1080 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
