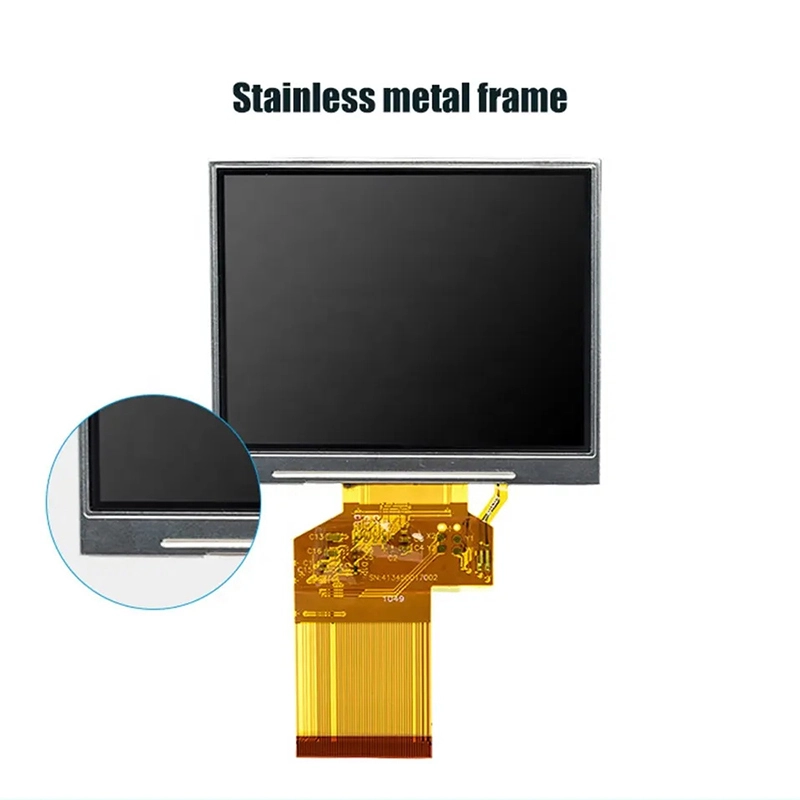

3.5inch 320x240 54pin HX8238-D LCD module
Super Low Cost USD4.9/pc(Market price:USD7.5/pc)
RoHs Reach Certificated
No MOQ
Fast Delivery,1 week Lead Time

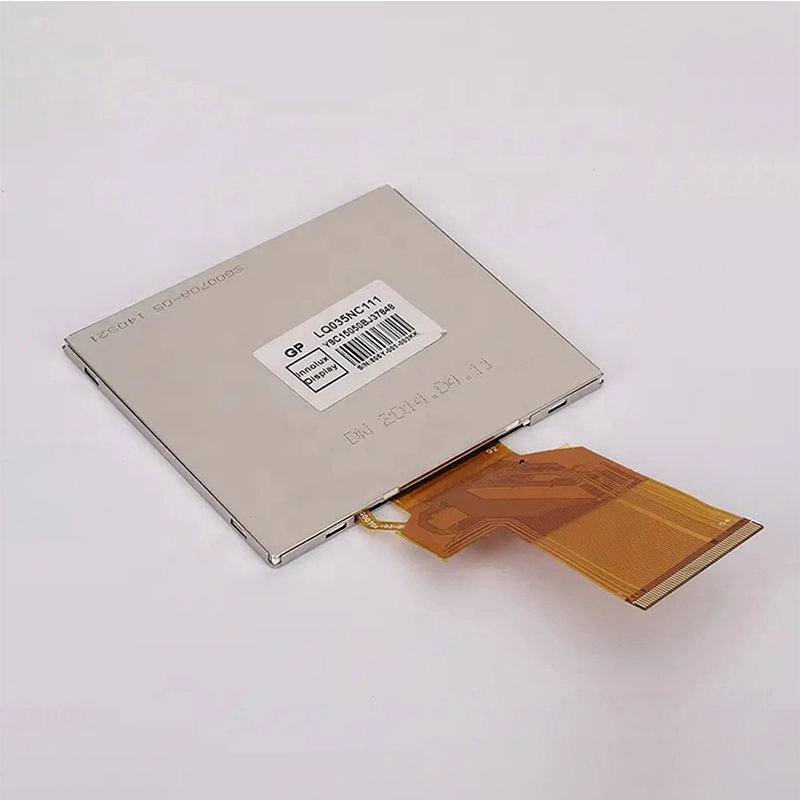

Alternative for LQ035NC111

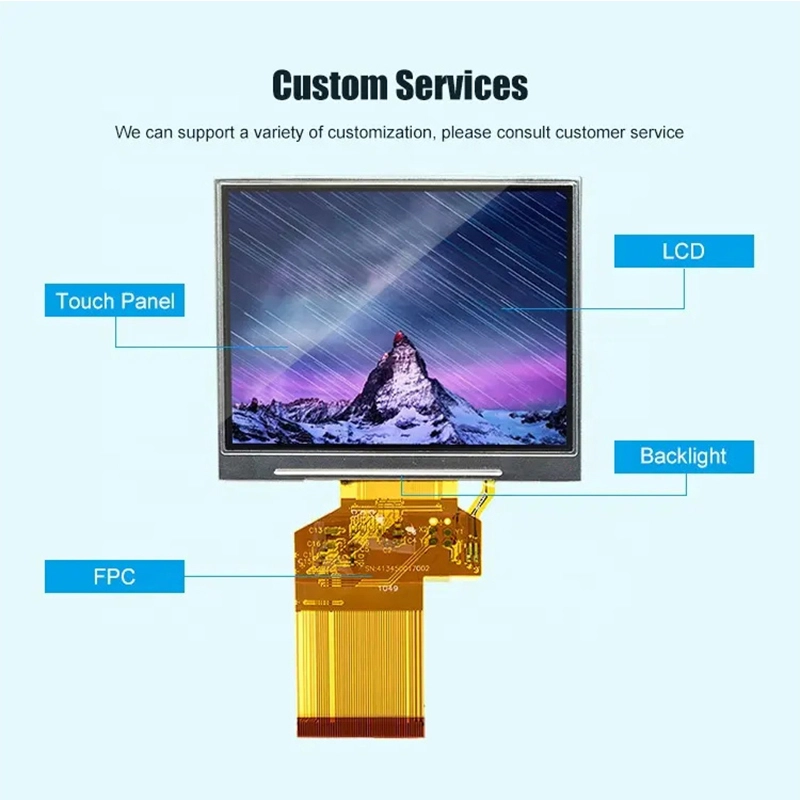

RTP/CTP available
HMI board/software design available
Stable supply
| LCD Type | TFT |
| Display color | 16.7M |
| Viewing Direction | 12 O’clock |
| Operating temperature | -20~+70℃ |
| Storage temperature | -30~+80℃ |

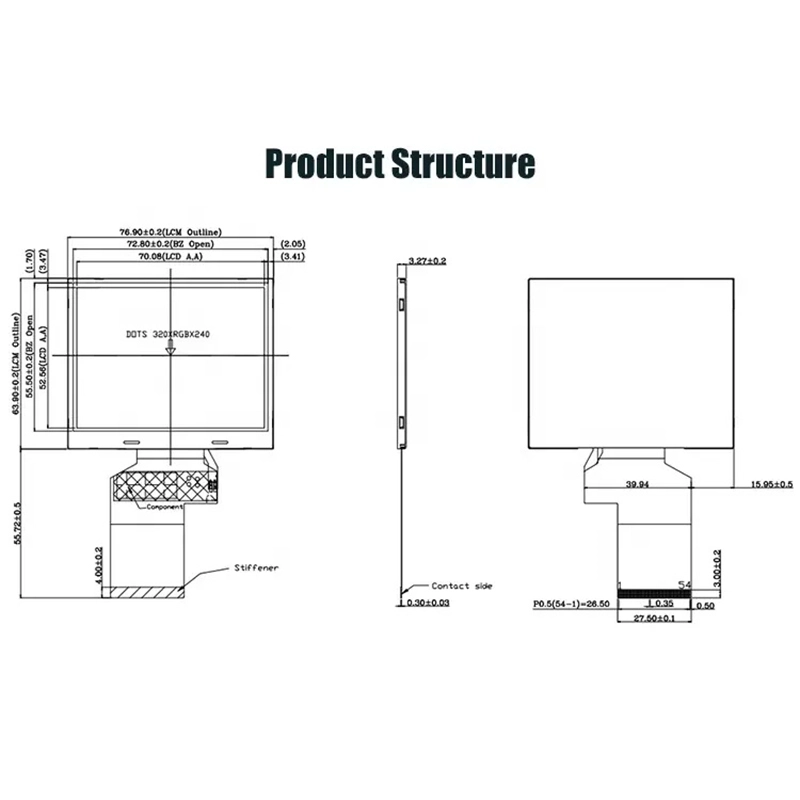

| Module size | Refer to outline drawing |
| Active Area(W×H) | 70.08X52.56 |
| Number of Dots | 320x240 |
| Controller | HX8238D |
| Power Supply Voltage | 3.3 |
| Outline Dimensions | Refer to outline drawing |
| Backlight | 6-LEDs (white) |
| Weight | --- |
| Interface | RGB |
