Kingtech 4.3 inch 800x480 resolution with HMI LCD display with stable production. This 4.3 inch TFT-LCD display supports serial port connection, 380nits brightness. It is IPS, full/wide/all viewing angle, with better display effect. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
| Size | 4.3 inch |
| Resolution | 800*480 |
| Operating Temperature | -20～+70℃ |
| Storage Temperature | -30～+80℃ |
| Display Type | IPS LCD screen |
| Backlight | LED |
| Brightness (cd/m²) | 380 |
| Backlight Life-time(h) | >20,000 |
| Contrast | 800:1 |
| Viewing Angle (L/R/T/B) | 80/80/80/80 |
| Touch Type | Capacitive touch screen |
| Capacitive Screen Touch Mode | Single-point, swipe touch |
| Capacitive Screen Light Transmittance | More than 90%. |
| The Number of Capacitive Screen Touch | The number of capacitive screen touches is theoretically unlimited, and the touch life is related to the working environment (dust, humidity). |
| Capacitor Cover Customized | The "glass cover + capacitive touch" integrated lamination service can be customized according to the user's drawing size. |
| Touch Type | Resistive and Capacitive Touch Screen |
| Resistive Screen Touch Mode | Single-point, swipe touch |
| Light Transmittance of Resistive Screens | More than 80%. |
| Resistive Screen Touch Life-time | The number of single points of the same pixel is more than 1 million. |

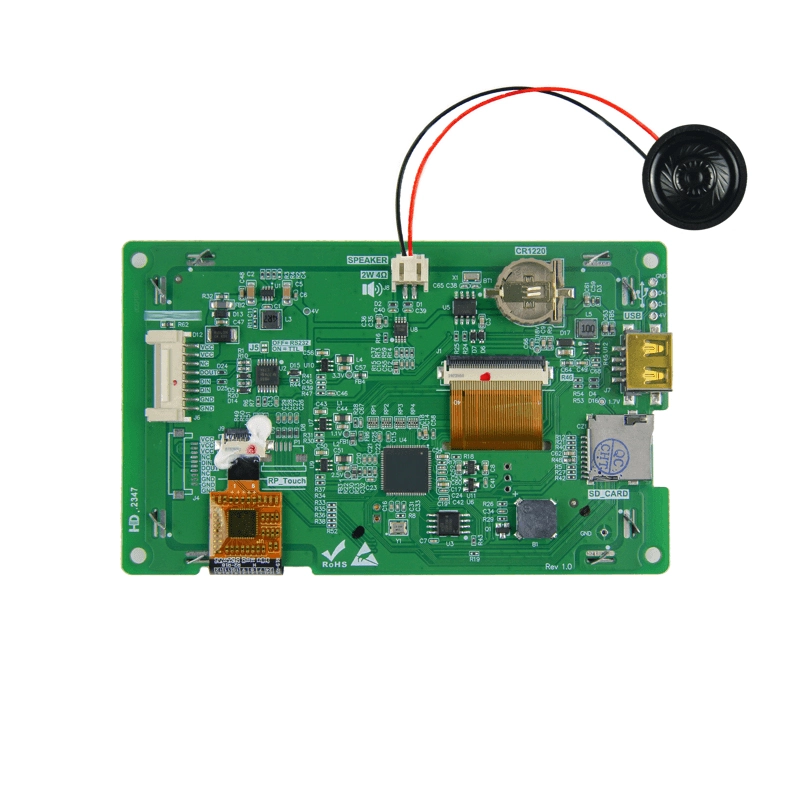

TFT-LCD module with HMI board
800x480/WVGA
Stable supply
IPS / Wide viewing angle / All viewing angle / Free viewing angle
Serial port connection
380nits brightness
Support resistive touch and capacitive touch
-20~70 operating temperature
Life-time 30000H
The 4.3 inch IPS 800x480 TFT LCD with HMI board display can be used for Medical, Hand-held device, Industrial or EV-chargers, Margin, Agriculture, Smart-Home device.
