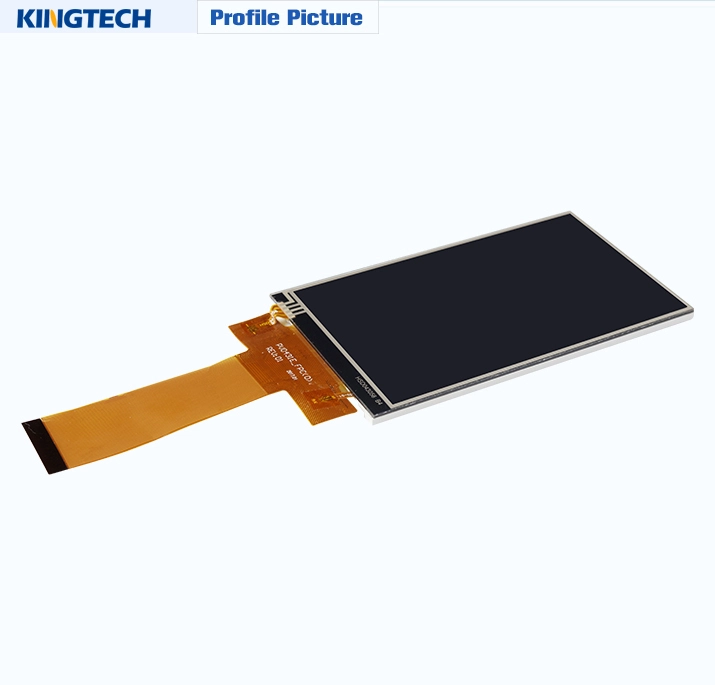

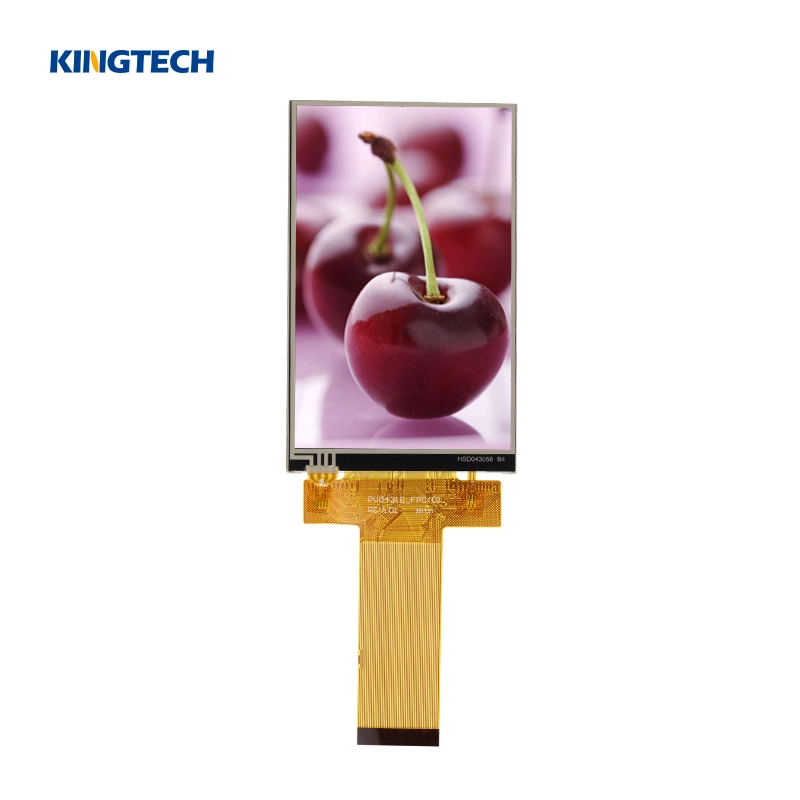

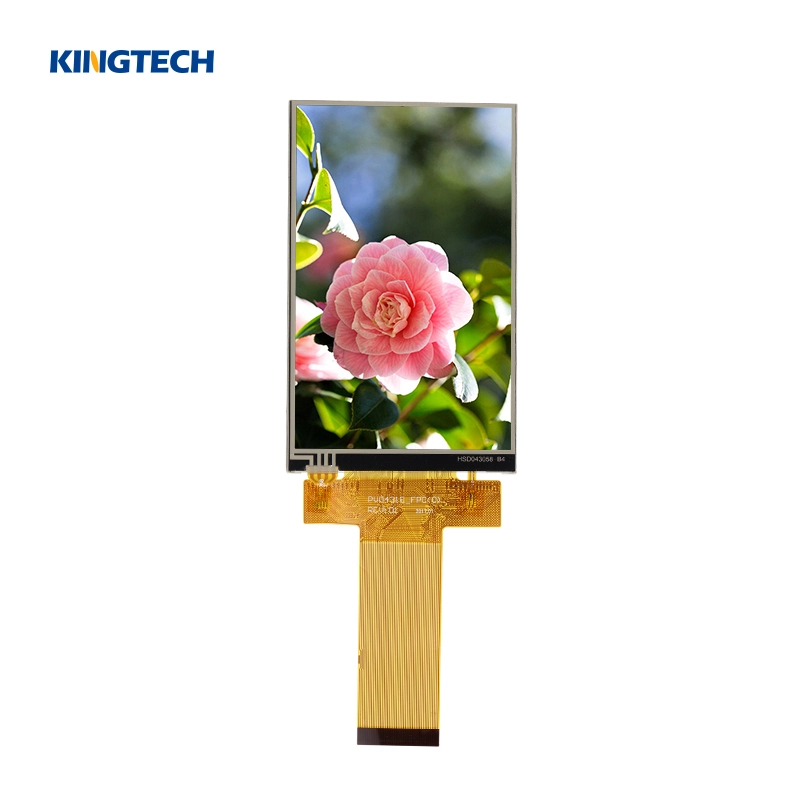

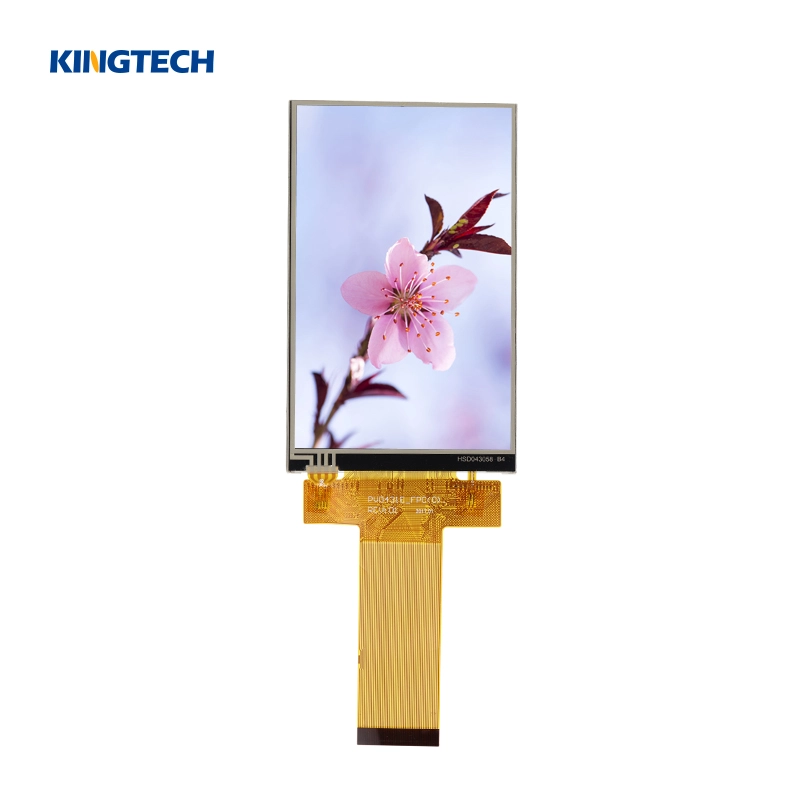

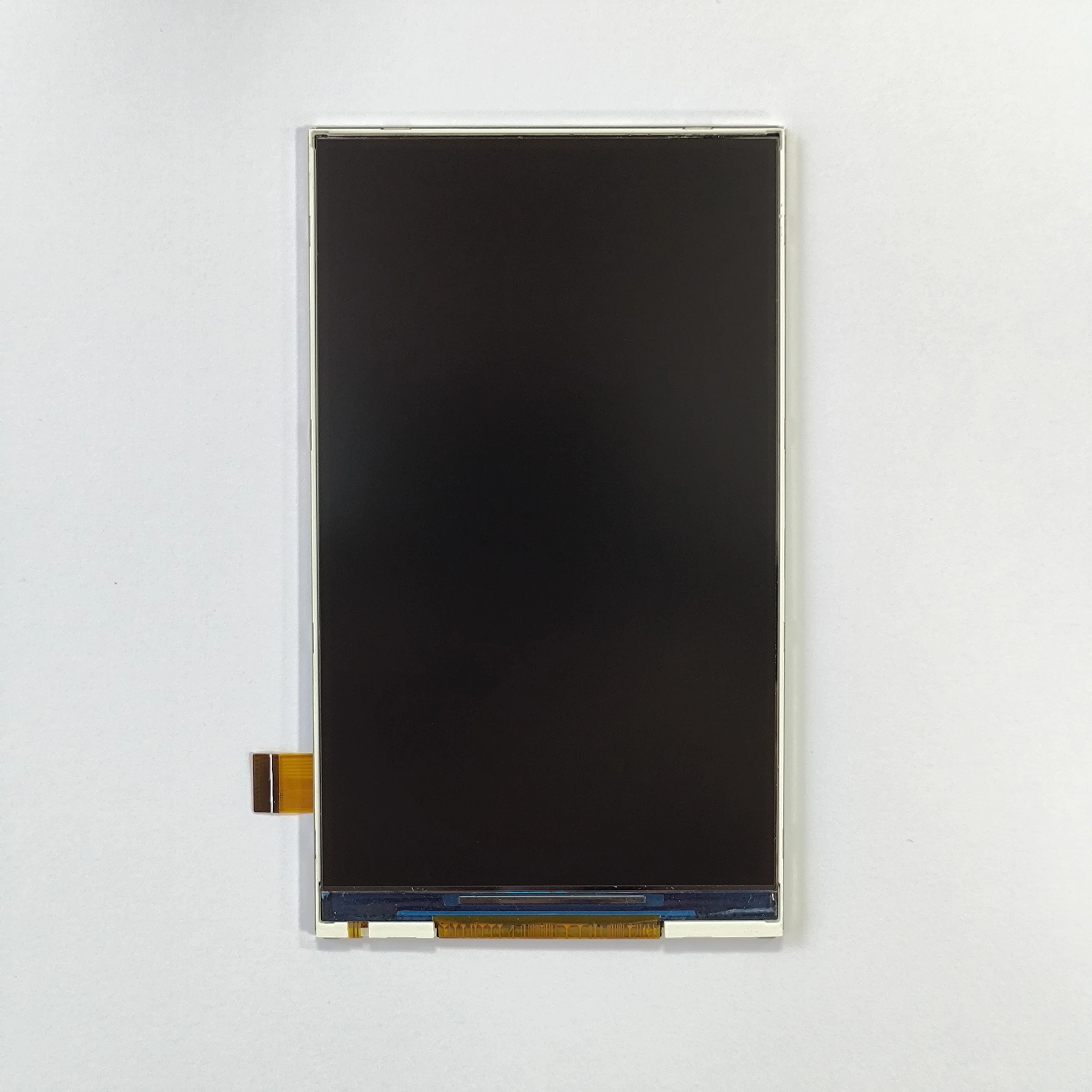

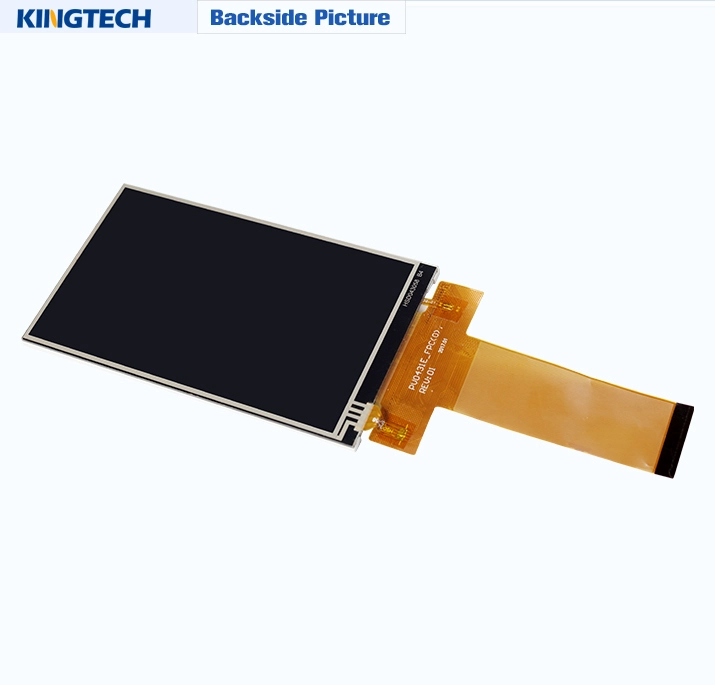

Kingtech PV04303TD25E is a diagonal size 4.3 inch TFT-LCD module with resolution WVGA 480 x800pixels. It is with Full Viewing angle 80/80/80/80/IPS/Wide viewing angle and All viewing angle. This module is built in with ST7701S IC. The brightness is 400nits. It supports MIPI interface and supply voltage (Vdd) range from 2.5~3.6V.
TFT display
480*800/WVGA
Stable supply
Full Viewing angle 80/80/80/80/IPS/Wide and All viewing angle
MIPI Video Mode interface
400nits brightness
Can custom resistive touch and capacitive touch
Medical, industrial, Smart home Appliance
| Item | 4.3 inch IPS TFT 480x800 module display |
| Model No. | PV04303TD25E |
| Resolution | 480*800 |
| Outline Dimension (mm) | 60.96*104.5*1.74 |
| Active Area (mm) | 56.16*93.60 |
| Viewing Angle | IPS |
| Brightness | 400nits |
| Interface | MIPI |
| Backlight | 9*1LED |
| Driving IC | ST7701S |
| PIN No. | 25 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can customize resistive and capacitive touch screen |
| Application | Medical, industrial, Smart home Appliance |
The 4.3 inch 480*800/WVGA TFT display module can be used for Medical, Smart Home Appliance, industrial or others.
