PV05031PY40C is a 4.97-inch AMOLED display, which is self-luminous and On-Cell Touch. The operating temperature of this product is -40 ~ 60°C, and the storage temperature is -55 ~ 125°C, portrait mode, With Touchscreen. The 4.97inch is 350 cd/m², and full viewing angle. This product can display 16.7M colors, and its display color saturation also reaches 105% (NTSC). It uses MIPI (4 data lanes) interface, a total of 40 pins, and uses terminal connection.
AMOLED display
4.97inch 720x1280
Stable supply
All/Wide/Full/IPS viewing angle
350nits brightness
Oncell touch
Wide temperature/-40~+70C
| Item | 4.97inch 720x1280 AMOLED display |
| Model No. | PV05031PY40C |
| Resolution | 720*1280 |
| Outline Dimension (mm) | 64.12*116.72*0.84 |
| Active Area (mm) | 61.88*110.02 |
| Viewing Angle | All |
| Brightness | 350nits |
| Interface | MIPI |
| Backlight | self-luminous |
| Driving IC | RM67295 |
| PIN No. | 40 |
| Operating Temperature | -40℃~60℃ |
| Storage Temperature | -40℃~70℃ |

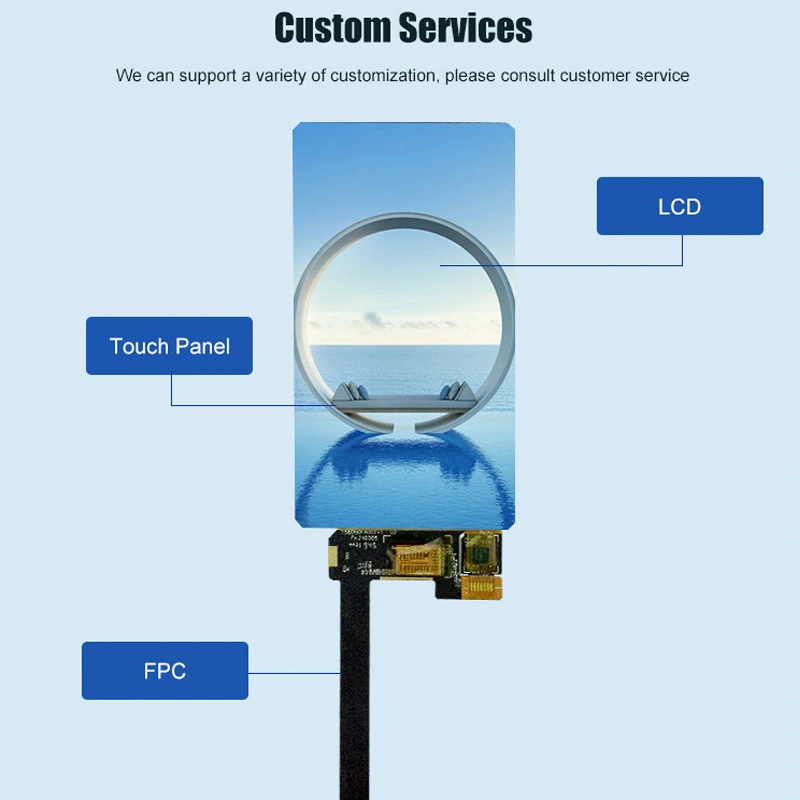

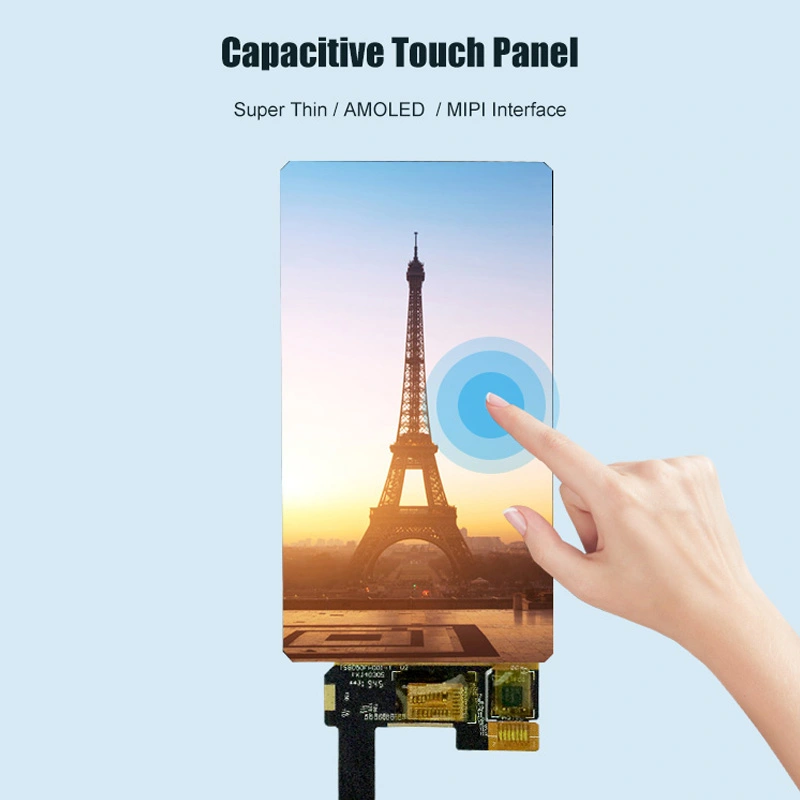

| Touch screen | Support custom capacitive touch |
| Application | Industrial, Cope with most indoor scenes, Access control, Home appliance |
The 4.97inch Amoled is applicable for hand-held device, smart home application and others.
