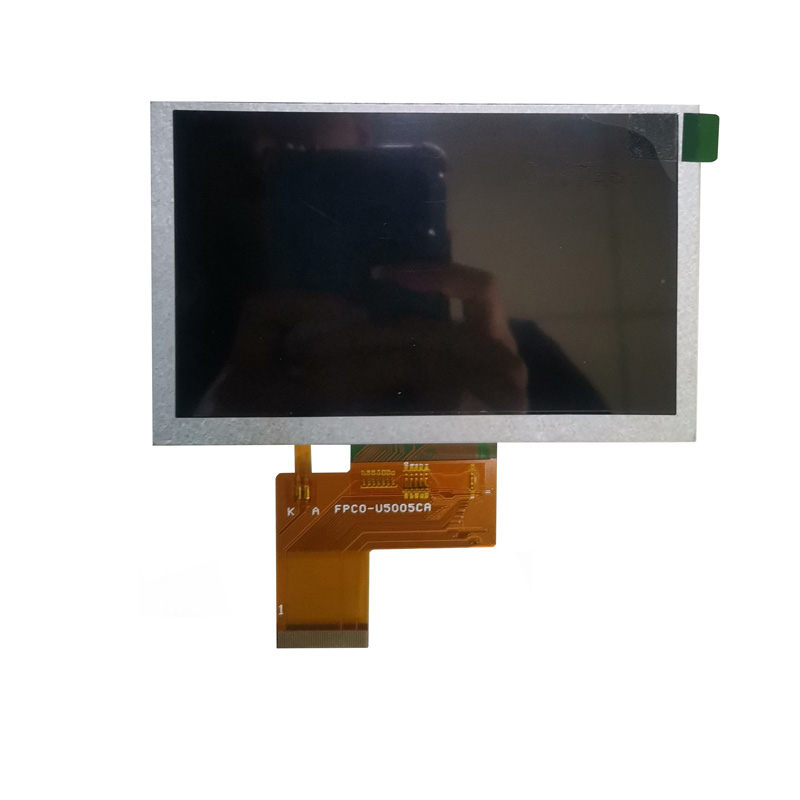

Kingtech 5.0inch 800*480 LCD display supply is very stable. This 5.0-inch WVGA module supports the RGB interface. In addition, the 5inch TFT used ST7262 driver IC and it is full/all/wide viewing angle. For the touch part, Kingtech can custom the 5inch IPS LCD touch panel according to the customer's requirements.
IPS / Full / Wide / All viewing angle /Normally black
800x480 / WVGA resolution
ST7262 IC
Can custom capacitive/resistive touchscreen
RGB interface
| Item | 5.0 inch 800x480 RGB interface LCD module |
| Model No | PV05010HZ40M |
| Resolution | 800x480 |
| Outline Dimension | 120.70*75.80*2.95 |
| Active Area(mm) | 108.00*64.80 |
| Interface | RGB |
| Driver IC | ST7262 |
| Brightness | 300 |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | Transmissive / Normally black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 5.0 inch 800X480 IPS LCD module can be used for agricultural equipment, medical device, game console, and smart home, etc.
