Kingtech 5.0 inch 720x1280 LCD display supply is very stable. This 5.0 inch supports the MIPI interface. In addition, the 5inch module used ILI9881D driver IC and its full/all/wide IPS viewing angle. For the touch part, Kingtech can custom the 5inch 720x1280 LCD touch panel according to the customer's requirements.
IPS/All/Full/Wide viewing angle/Normally black
720x1280 resolution
ILI9881D IC
Support capacitive touch
Can custom capacitive touchscreen
MIPI interface
| Item | 5.0 inch 720x1280 LCD module |

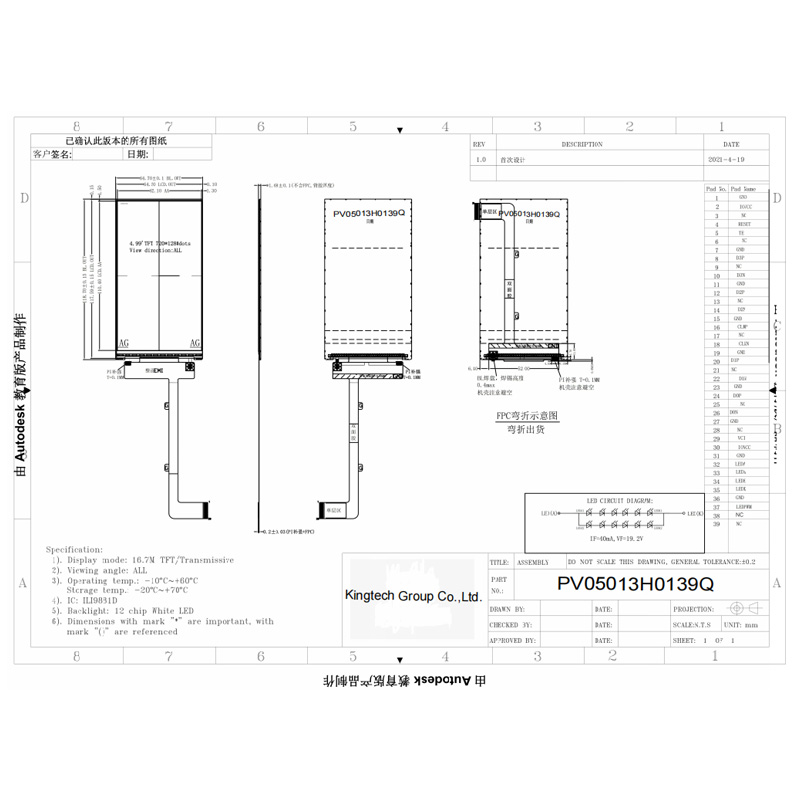

| Model No | PV05013H0139Q |
| Resolution | 720x1280 |

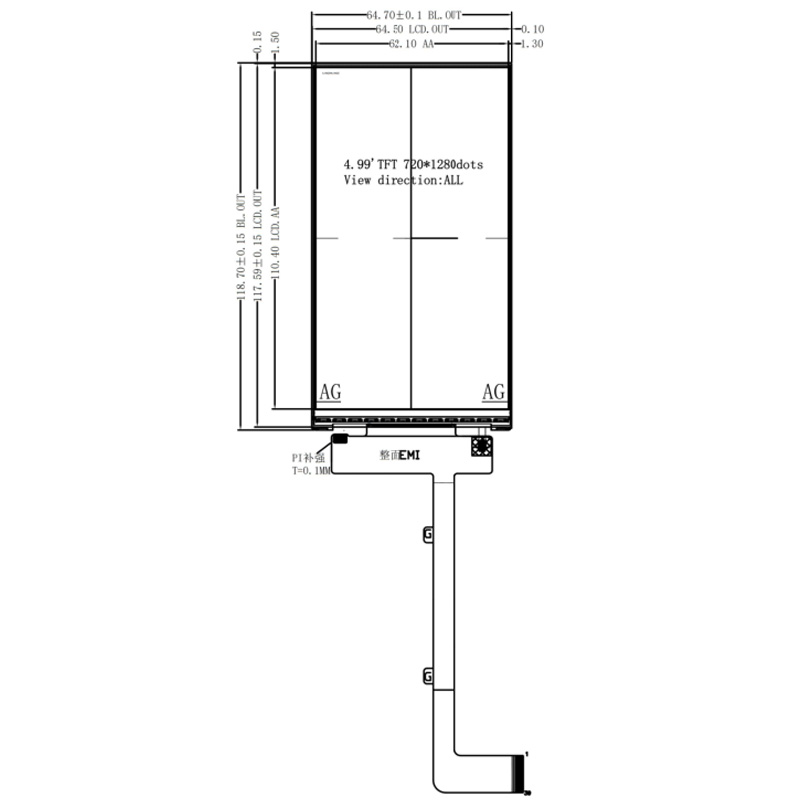

| Outline Dimension | 64.70(H ) x118.70(V) x1.68(T) |
| Active Area(mm) | 62.10(H) x110.40(V) |
| Interface | MIPI |
| Driver IC | ILI9881D |
| Brightness | 350nits |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | Transmissive / Normally black |
| PIN | 39 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch panel | Support capacitive touch |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 5.0 inch 720x1280 IPS MIPI LCD module can be used for agricultural equipment, medical device, game console, smart home, etc.
