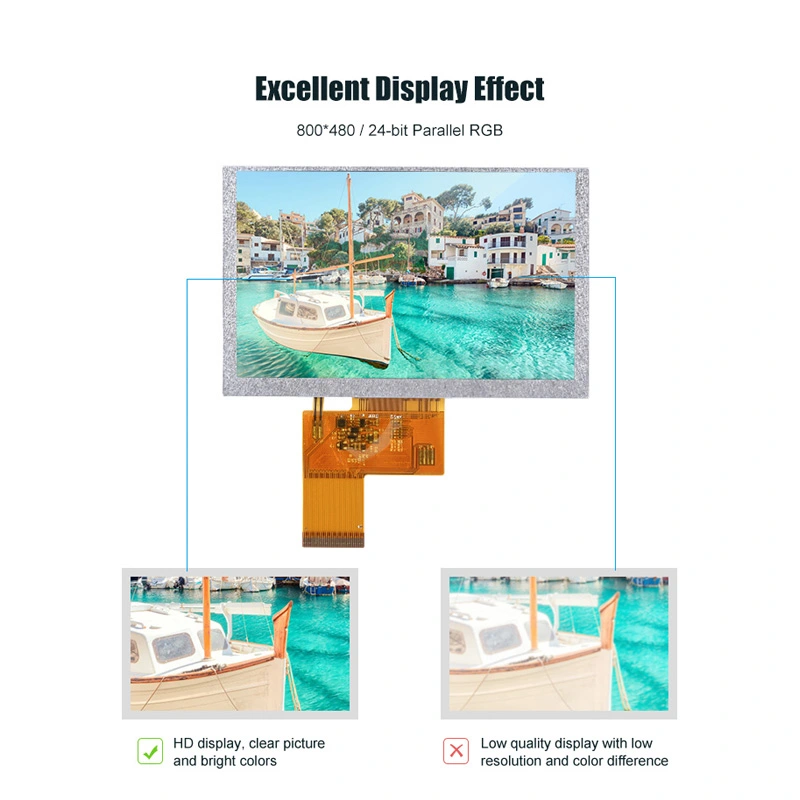

PV05014Y0150RT is 5-inch WVGA LCD module using an TN technology with a standard resolution of 800x480, with 1000nits brightness technology provides sunlight-readable image quality with higher brightness, better color reproduction and image consistency. Whether you need a display for your industrial HMI application or outdoor equipment, this display provides the solution.
5.0inch 800x480/WVGA display

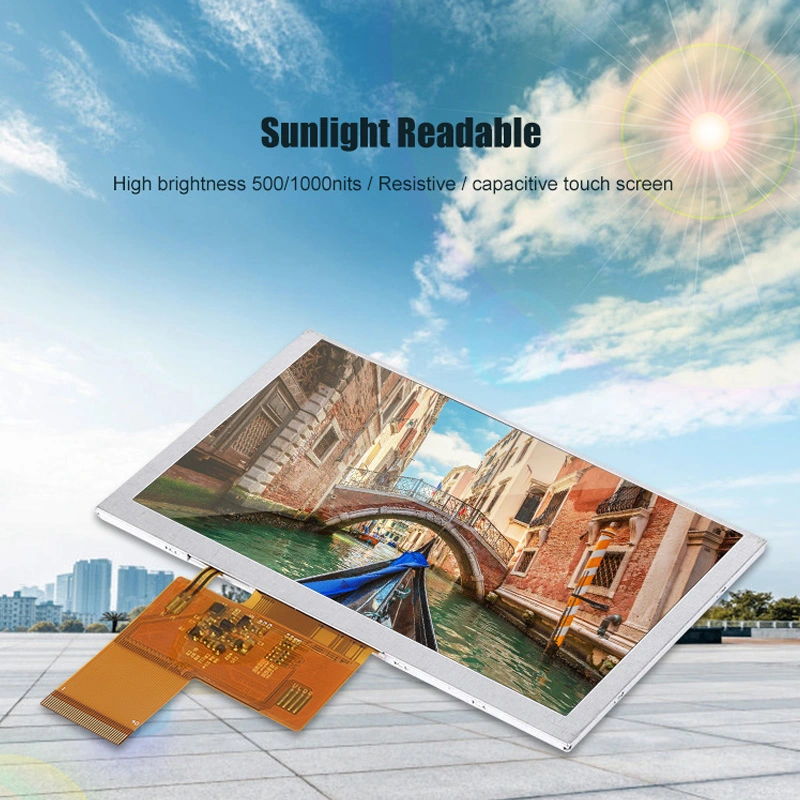

1000nits/High brightness/Sunlight readable/Outdoor
Stable supply
Viewing angle:12 o’clock
RGB/MIPI/LVDS interfaces
Resistive touch and capacitive touch optional
| Item | 5.0inch 800x480 high brightness LCD screen |
| Model No. | PV05014Y0150R |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.7*75.80*3.00 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | 12 O'clock |
| Brightness | 1000nits |
| Interface | 24bit RGB |
| Backlight | 3*5LED |
| Driving IC | ILI6122+ILI5960 |
| PIN No. | 50 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |

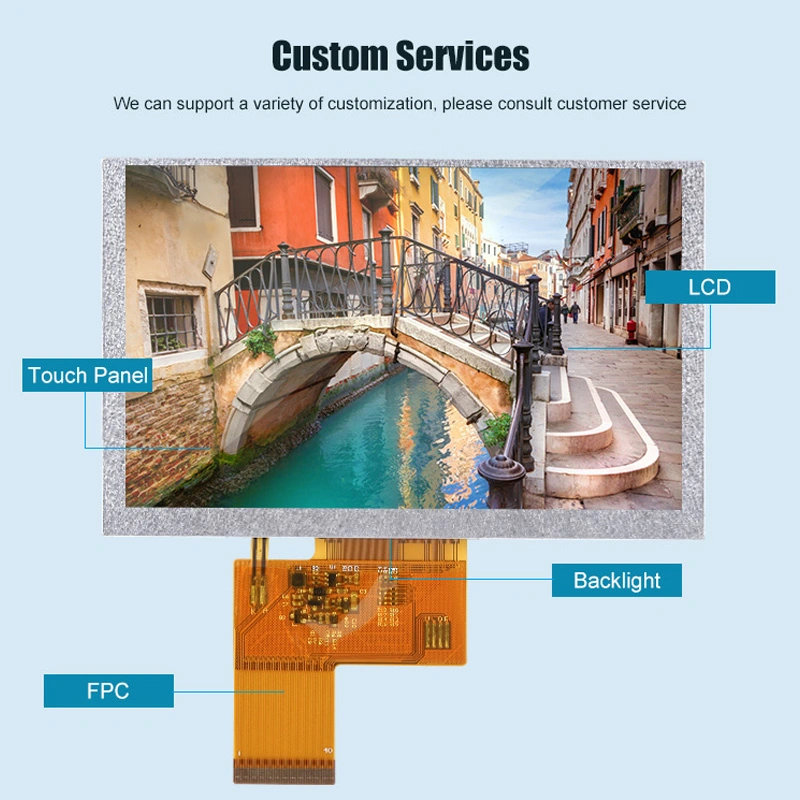

| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Motor, Industrial HMI, Outdoor device, Farming machine etc |
PV05014Y0150RT is applicable for motor, industrial HMI, Farming machine, outdoor device.
