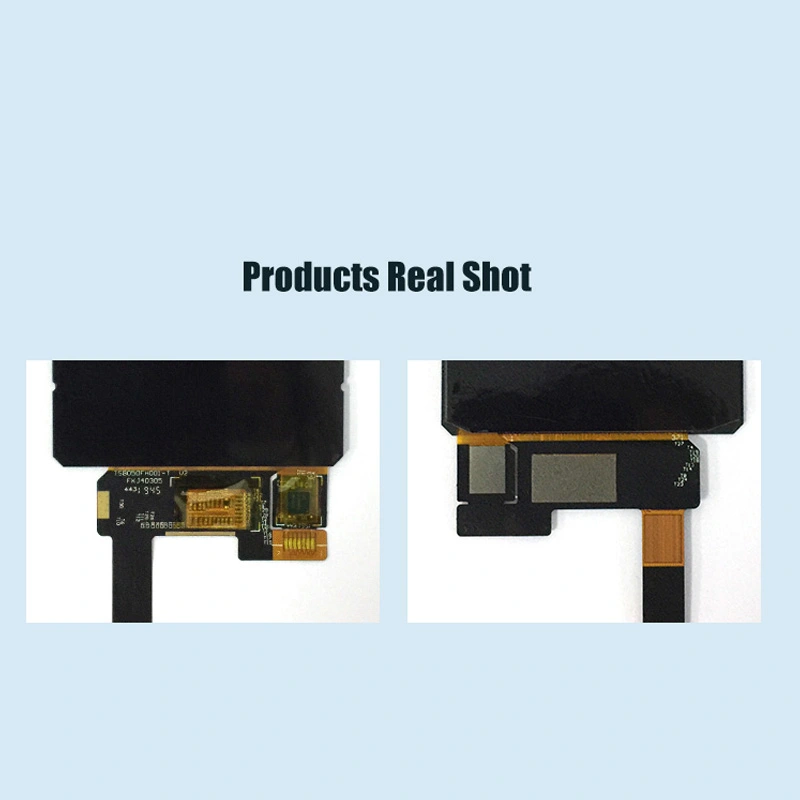

Kingtech PV05021T0240X is a 5.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with a WLED backlight, and has no touch. It has an operating temperature of -20 ~ 70°C, a storage temperature of -30 ~ 80°C.This model is suitable for industrial applications.its resolution is 480(RGB)*854. It uses an 3SPI+RGB24 BIT interface with a total of 40 pins, which is connected by terminals and the screen drive voltage is 3.3V (Typ.).
5.0inch480x854 display
430nits
Stable supply
All/Wide/Full/IPS viewing angle
Applicable for smart home equipment, hand-held device

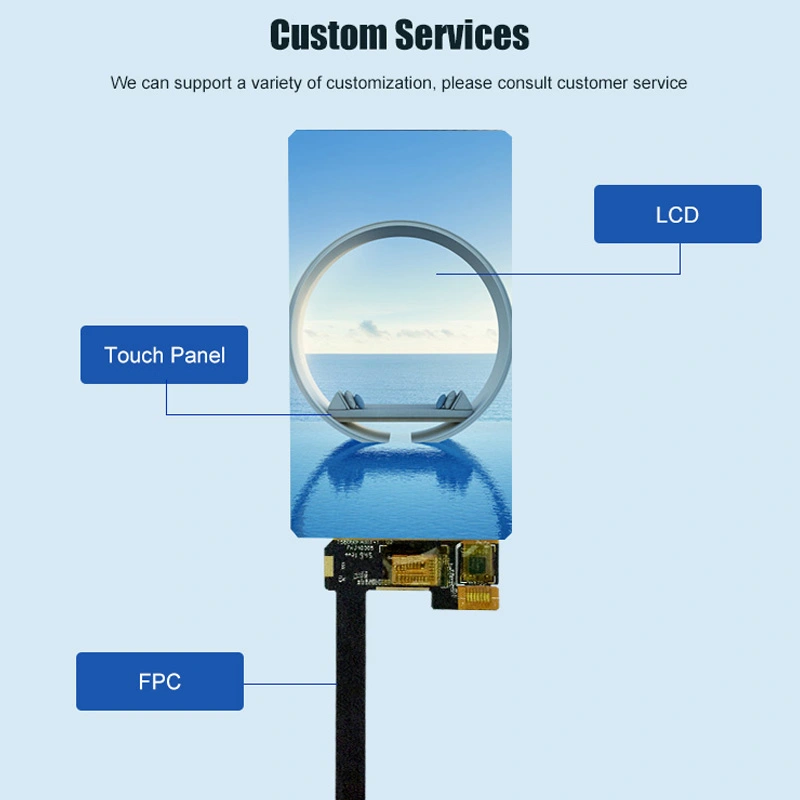

Touch Optional
| Item | 5.0inch 480x854 |
| Model No. | PV05021T0240X |
| Resolution | 480x854 |
| Outline Dimension (mm) | 66.4*120.05*2.08 |
| Active Area (mm) | 61.56*109.53 |
| Viewing Angle | All |
| Brightness | 430nits |
| Interface | 3SPI+RGB24 BIT |
| Backlight | 6*2LED |
| Pin nums | 40pins |
| Driving IC | ST7701S |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | without |
| Application | 5.mobile phone,handheld device |
PV05021T0240X is applicable for smart home equipment, hand-held device, industrial and so on.
