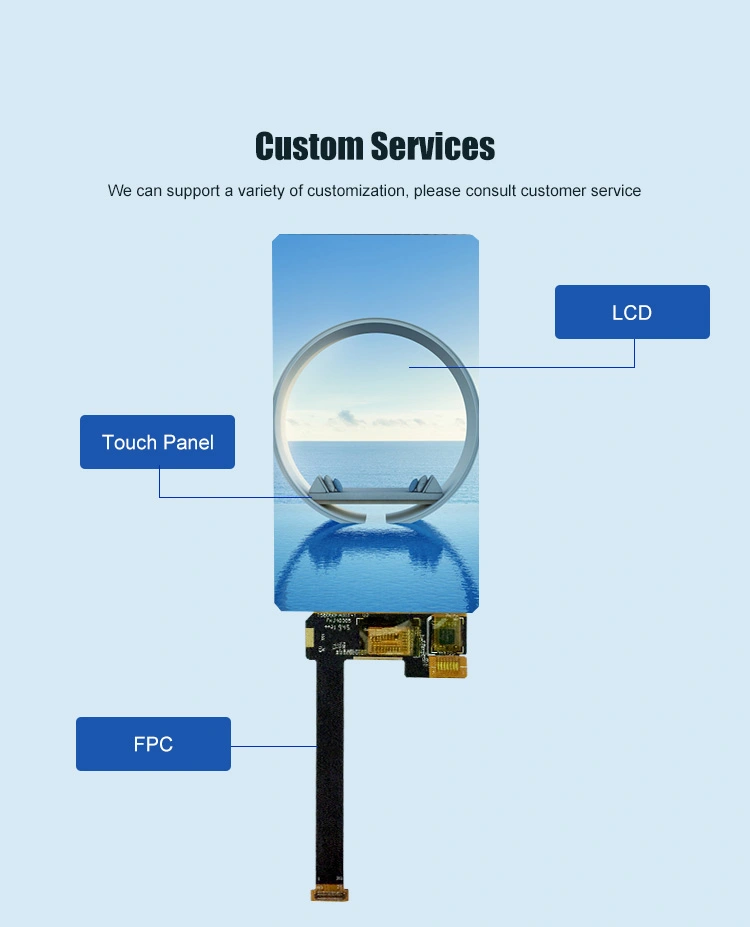

Kingtech PV05027D0131Y is a 4.97-inch 1080*1920 dots LCD module using IPS TFT-LCD technology. It is composed of a TFT LCD panel, driver IC, FPC, backlight. It can display up
to 16.7M colors. It is Full Viewing angle 80/80/80/80. It is integrated with HX8399C driver IC. It supports MIPI interface. Its work temperature is -10-60. It is with backlight of 6*2LED. Its brightness is 500nits for outdoor. It is suitable for consumer electronic products such as mobile phone, hand-held device, etc.
4.97inch 1080*1920 LCD
Full/Wide/All/IPS viewing angle
High brightness/Sunlight readable/Outdoor

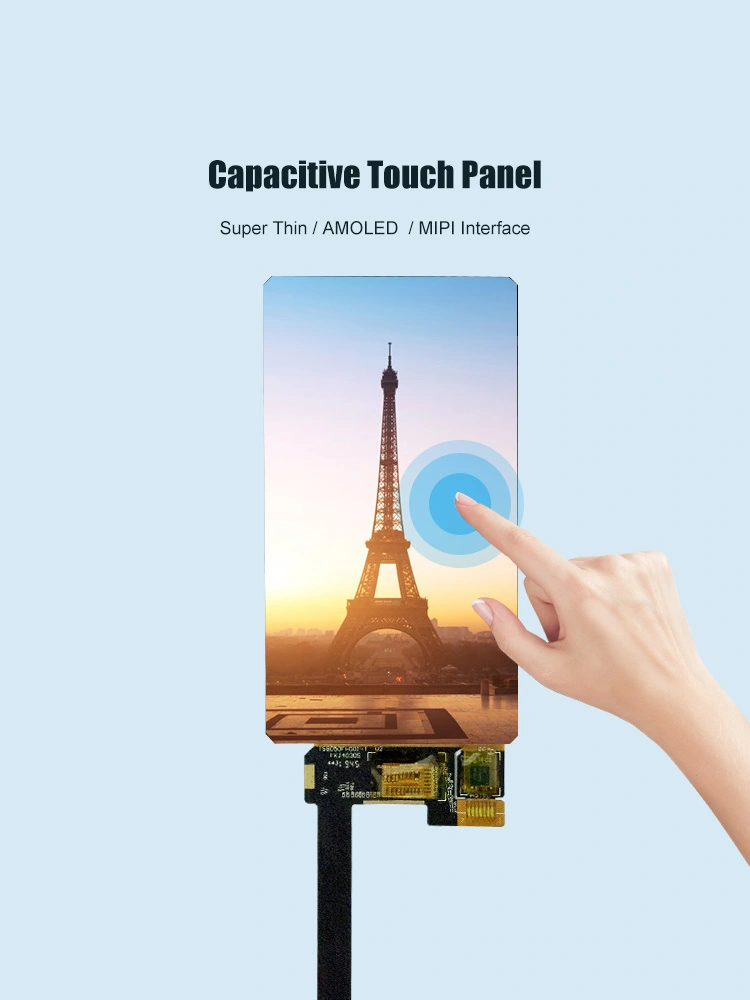

Can custom capacitive touch and resistive touch
Competitive price
| Item | 4.97inch IPS 1080x1920 module display |
| Model No. | PV05027D0131Y |
| Resolution | 1080*1920 |
| Outline Dimension (mm) | 105.5*67.2*2.90 |
| Active Area (mm) | 61.64*109.58 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | MIPI |
| Backlight | 6*2LED |
| Driving IC | HX8399C |
| PIN No. | 31 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Resistive touch and capacitive touch for optional |
| Application | Mobile phone, telecom device, handheld device, E-bike |

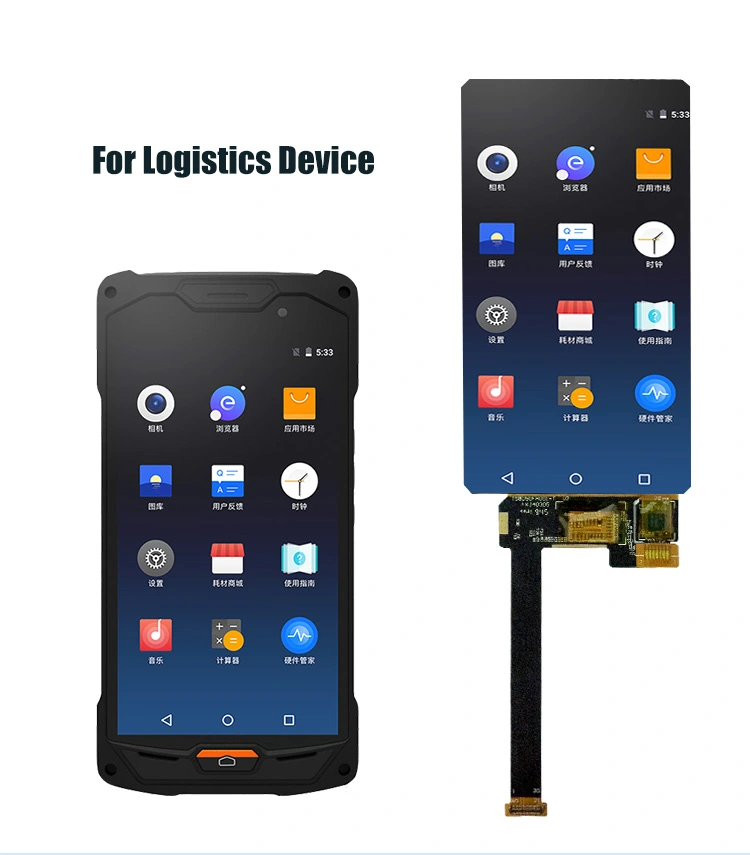

The 4.97inch 1080x1920 TFT LCD module display can be used for consumer electronic products such as mobile phone, hand-held device, medical, Telecom device, outdoor device etc.
