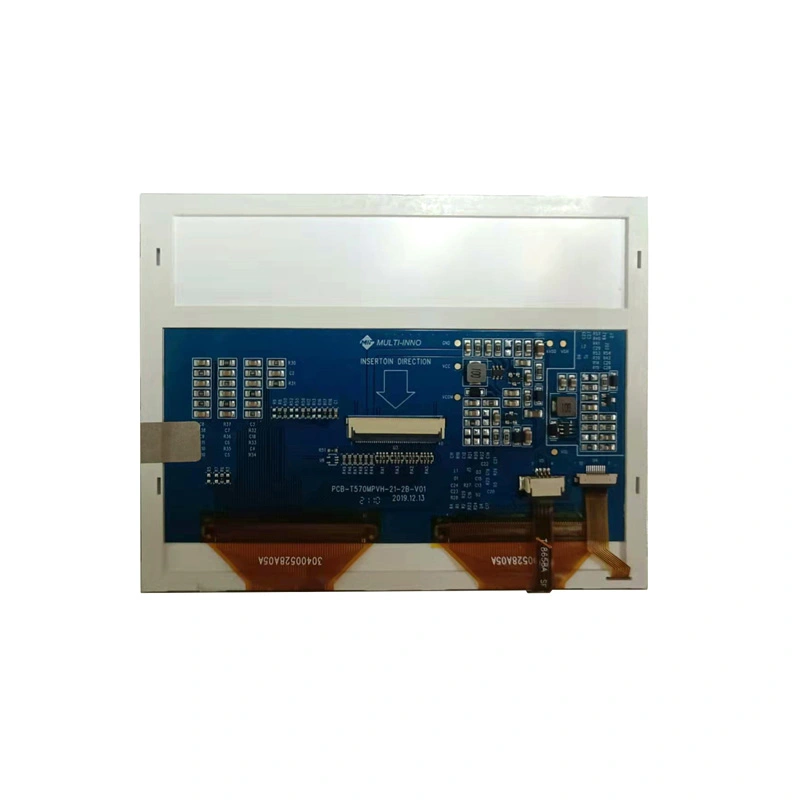

Kingtech PV05708D0140J-CT is a 5.7-inch 640x480 dots TFT LCD module. It is composed of a TFT LCD panel,driver IC, FPC, backlight. It is IPS glass with Full viewing angle 6 o’clock. Its display color is up to 262k. LCD ic is integrated with JD9168S. It is with capacitive touch with ST1633I. It supports RGB interface. Its work temperature is -20-70. It is with backlight of 3 Serial 7 Parallel LEDs (white). Its brightness is 425nits. Capacitive touch is optional. It is suitable for industrial, medical, Hand-held device, smart home, outdoor, etc. This product accords with ROHS environmental.
5.7inch 640x480 LCD with capacitive touch
Full/All/Wide viewing angle
Brightness is 425nits
Capacitive Touch can be customized
| Item | 5.7inch 640x480 LCD with capacitive touch LCD module |
| Model No. | PV05708D0140J-CT |
| Resolution | 640*480 |
| Outline Dimension (mm) | 127.00*98.43*8.7 |
| Active Area (mm) | 115.20*86.40 |
| Viewing Angle | All |
| Brightness | 425nits |
| Interface | RGB |
| Backlight | 3*7LED |
| Pin nums | 40 |
| Driving IC | JD9168S+ST1633I |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch optional |
| Application | Industrial, Medical, Smart Home, Home appliance, Meter |
The 5.7inch 640x480 TFT LCD module display can be used for used for Medical, hand-held device, industrial, advertising, E-bike, meter, thermostat, elevator, video door, automotive and 3D printer.
