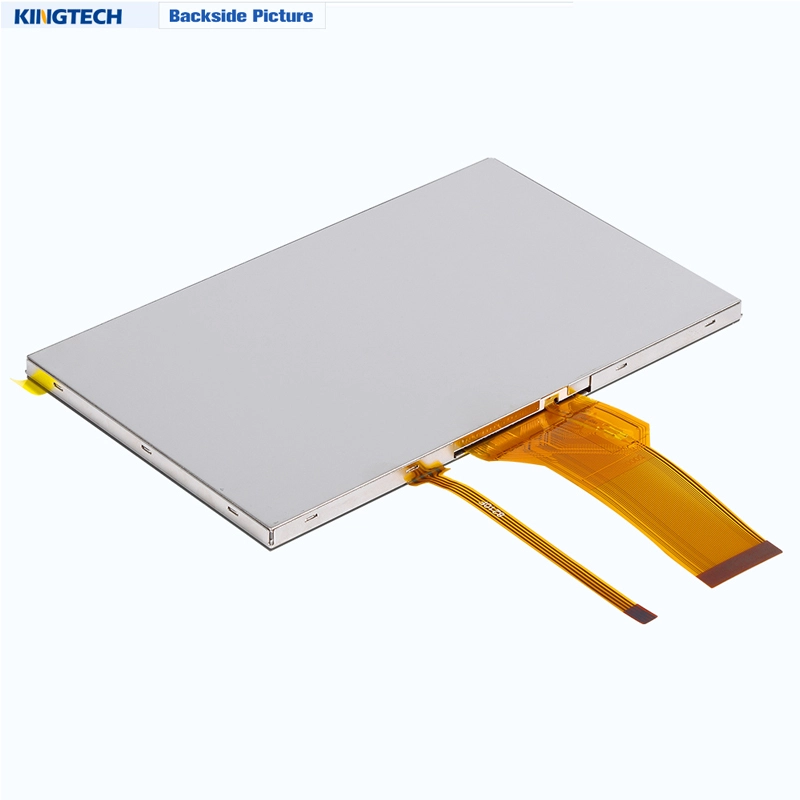

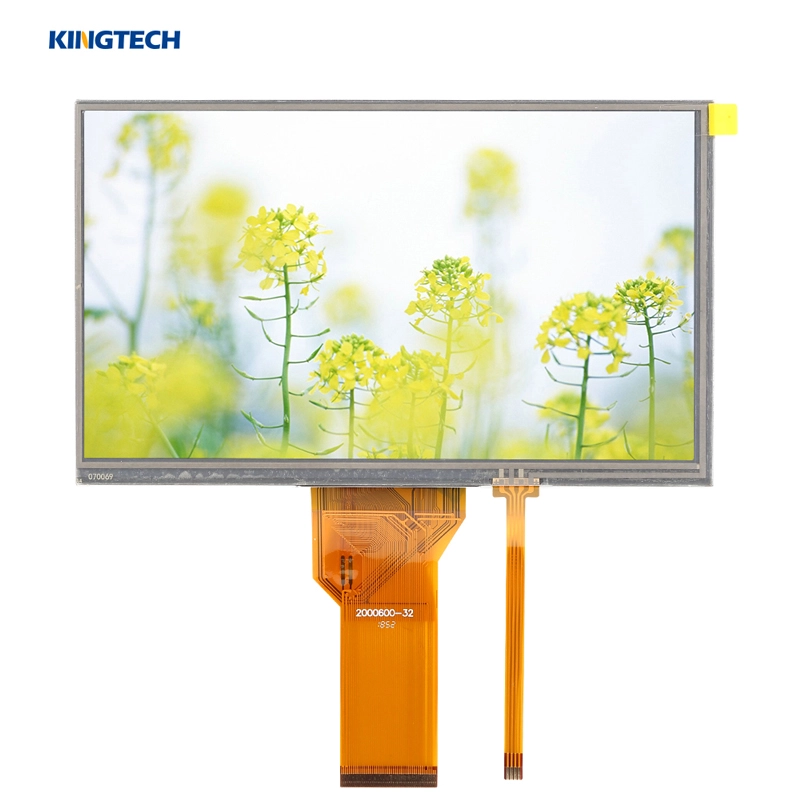

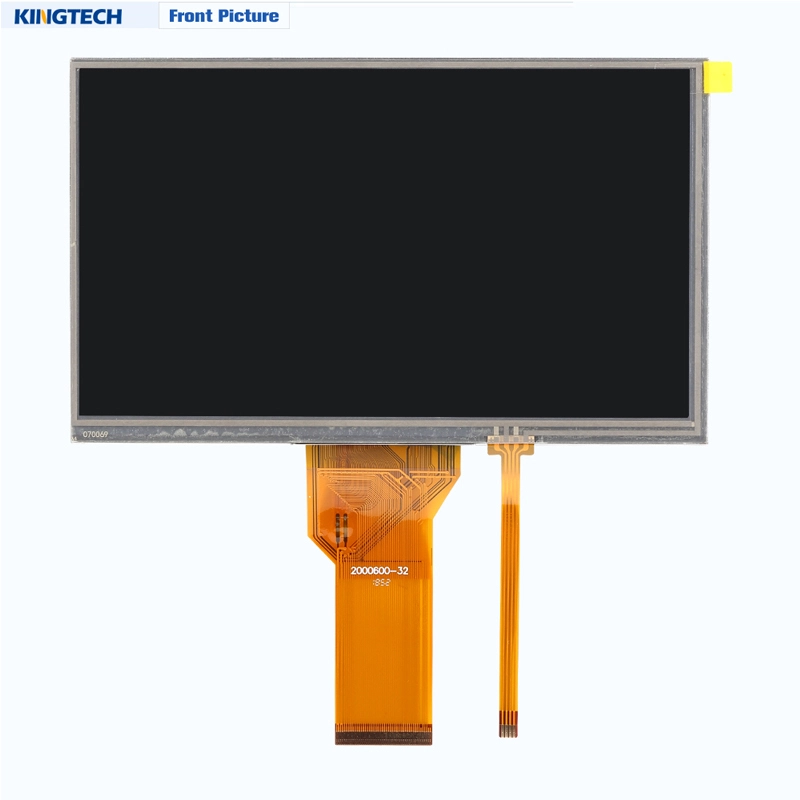

PV07037Y0150N is a 7 inch WVGA LCD module product with a-Si TFT-LCD technology. It is high brightness, 1000nits, suitable for outdoor. It is with integrated WLED backlight. Resolution is 800x480 (WVGA). In terms of backlight, this product uses a 8S3P WLED light-emitting side-entry light source. Its interface is 24bit-RGB. It can be with and without capacitive touch.
TN TFT LCD display
800x480 /WVGA
Stable supply
Full/Wide/All/IPS viewing angle
24 bit RGB interface
1000nits brightness/High brightness/Sunlight readable/Outdoor
With/without capacitive touch and resistive touch
Outdoor device, industrial equipment, medical products, white goods, POS system, Kiosk and so on
| Item | 7.0 inch TFT 800x480module display |
| Model No. | PV07037Y0150N |
| Resolution | 800x480 |
| Outline Dimension (mm) | 164.9*100*5.7 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | 24bit Interface |
| Backlight | 3*9LED |
| Pin nums | 50 |
| Driving IC | / |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | with capative touch screen |
| Application | Outdoor, industrial equipment, medical products, white goods, POS system, Kiosk, and so on |
The 7 inch 800x480 WVGA TFT display module can be used for Industrial equipment, such as small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator etc.
