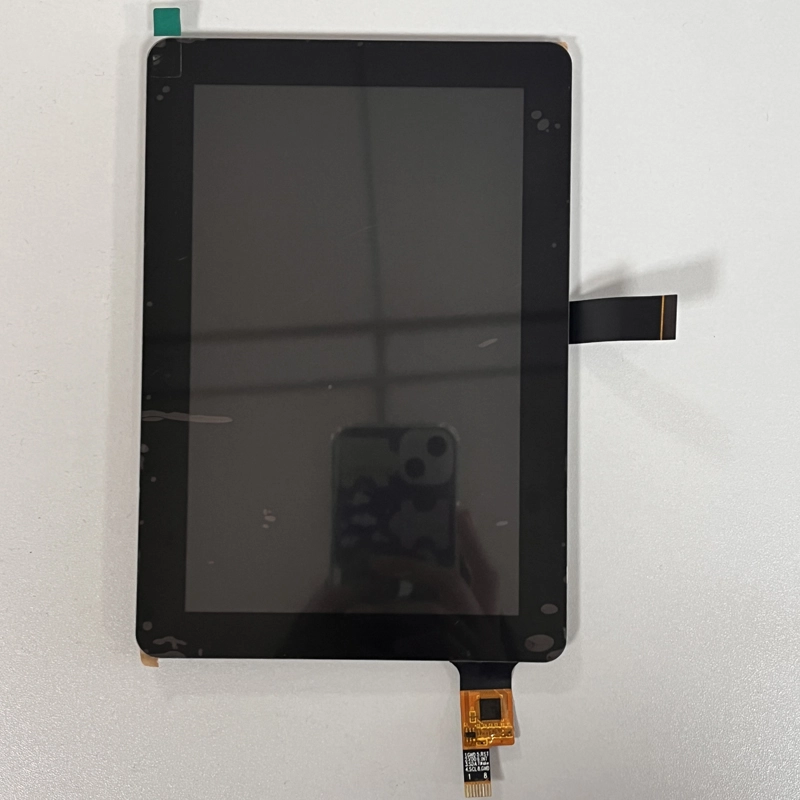

PV07040T0240R is Kingtech 7inch IPS LCD display module.It is with a a-Si TFT, transmissive, normally black, it’s Full/Wide/All/IPS viewing angle. Its resolution is portrait 800x1280. It has each 4 serial in 5 parallel line with brightness 1000nit/Sunlight readable/High brightness. It is suitable for outdoor consumer products. Its working temperature is only -10-60.
7inch IPS LCD display module
Portrait/vertical type
800x1280dots
Full/Wide/All/IPS viewing angle
1000nits/High brightness/Sunlight readable
MIPI Video Mode interface
Opt: -10-60
Resistive touch and capacitive touch optional
| Item | 7.0 inch TFT 1024x600 module display |
| Model No. | PV07040T0240R |
| Resolution | 800*1280 |
| Outline Dimension (mm) | 99.59*160.88*2.33 |
| Active Area (mm) | 94.2*150.72 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | MIPI VDIEO MODE |
| Backlight | 4*5LED |
| Pin nums | 40 |
| Driving IC | JD9365DA-H3 |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Touch screen | without capative touch screen |
| Application | Consumer electronics, tablet, Advertising display, Elevator, Security device, Cashier |
PV07040T0240R is 7inch 800x1280 TFT LCD display, it used for consumer electronics, tablet, Advertising display, Elevator, Security device, Cashier and so on.
