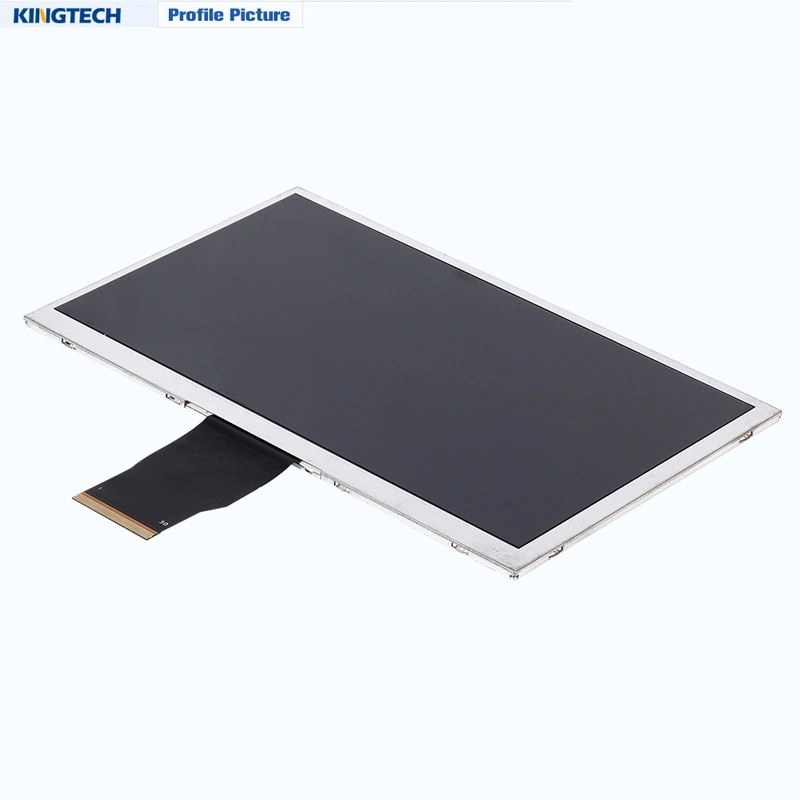

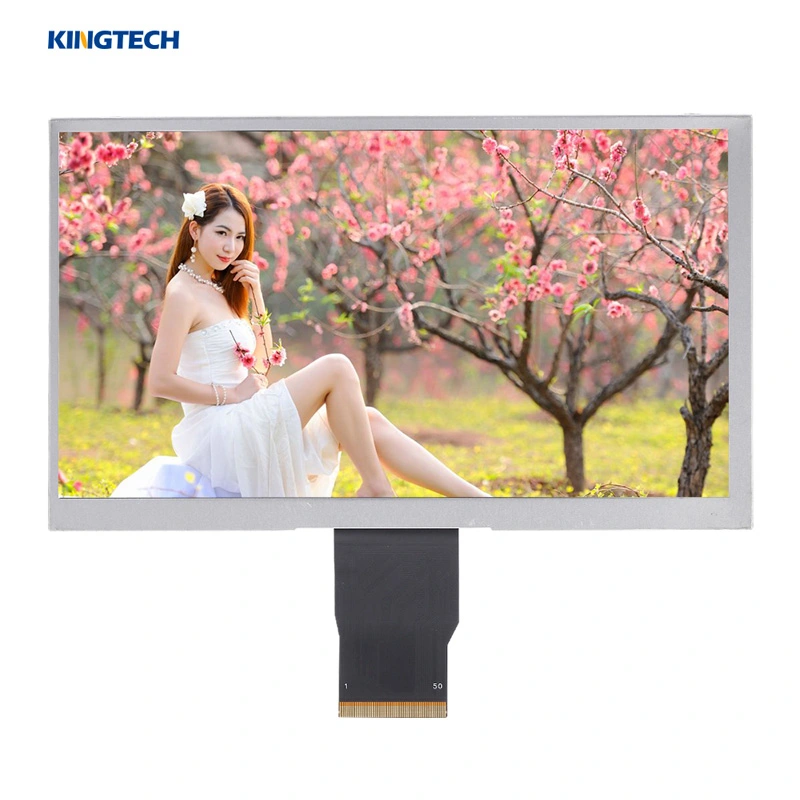

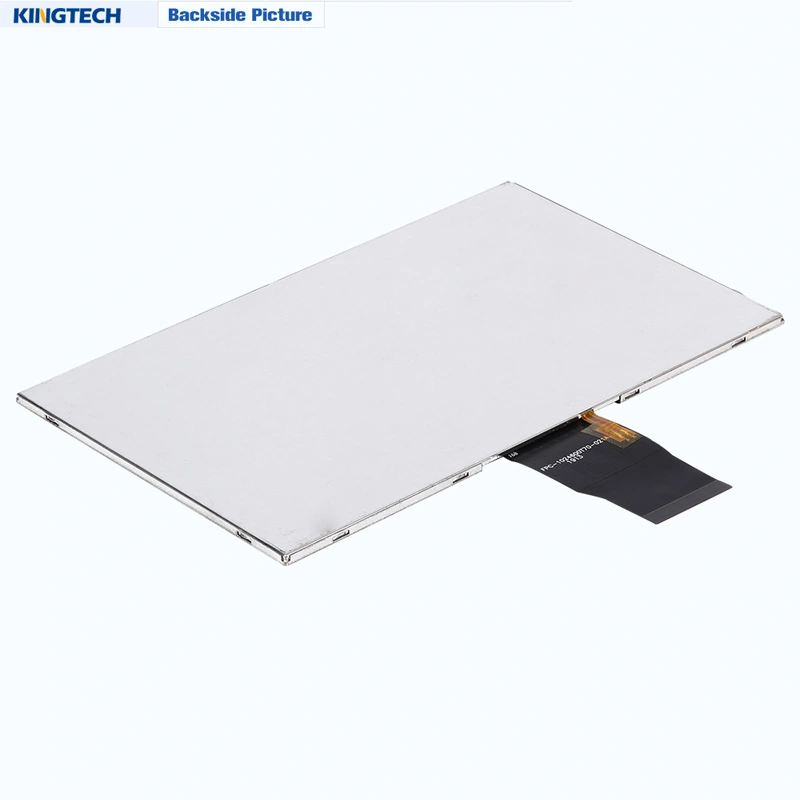

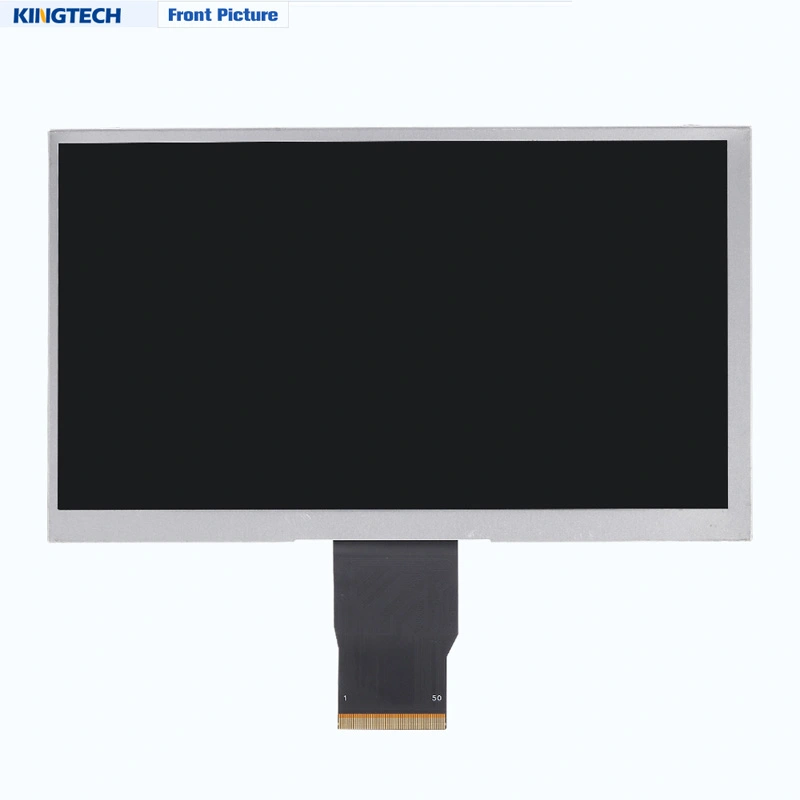

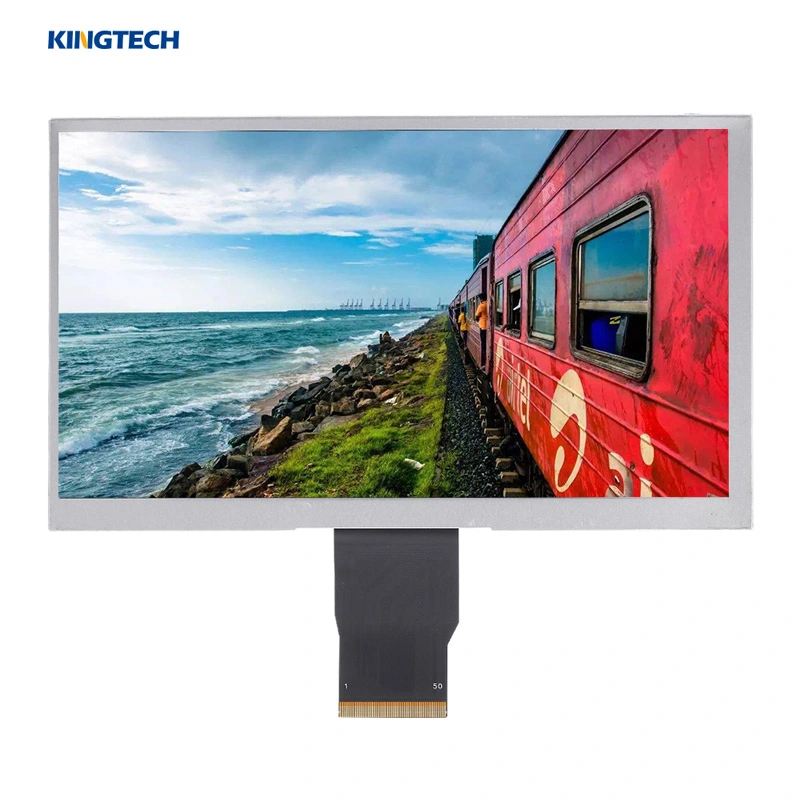

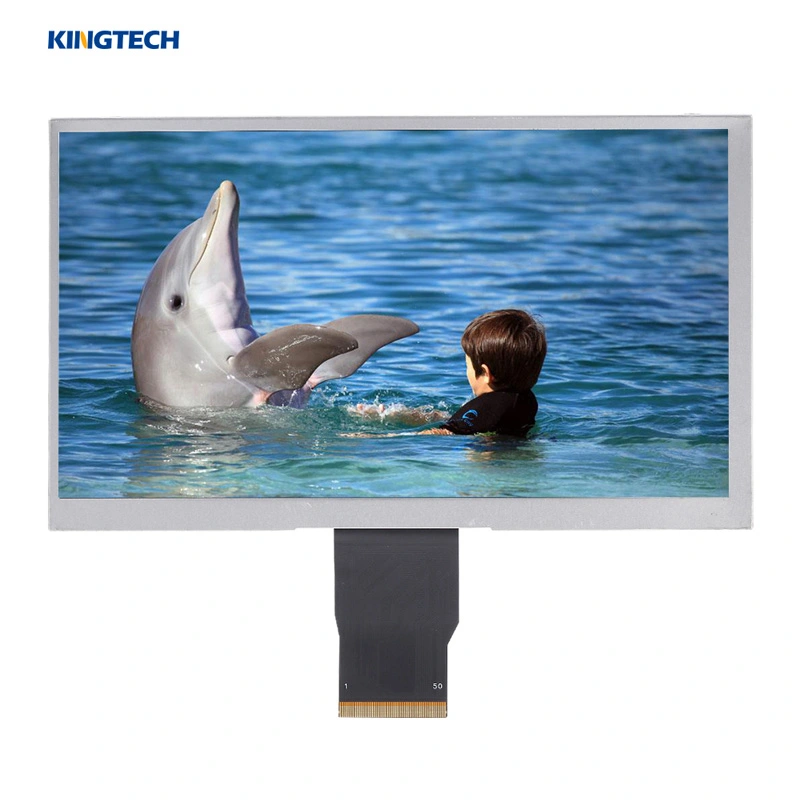

Kingtech PV07063Y0150Q is 7” color TFT LCD with a module size of 164.80*100.00*2.8mm, and active area 154.21*85.92mm. It is a a-Si TFT, Normally black, Transmissive glass with a 1024*600 resolution. Its brightness is 450nits with a contrast ratio of 800. Driver IC is undefined with LVDS interface and a zero insertion force type flex interconnect.
7inch 1024x600
450nits~1000nits/High brightness/Sunlight readable/Outdoor

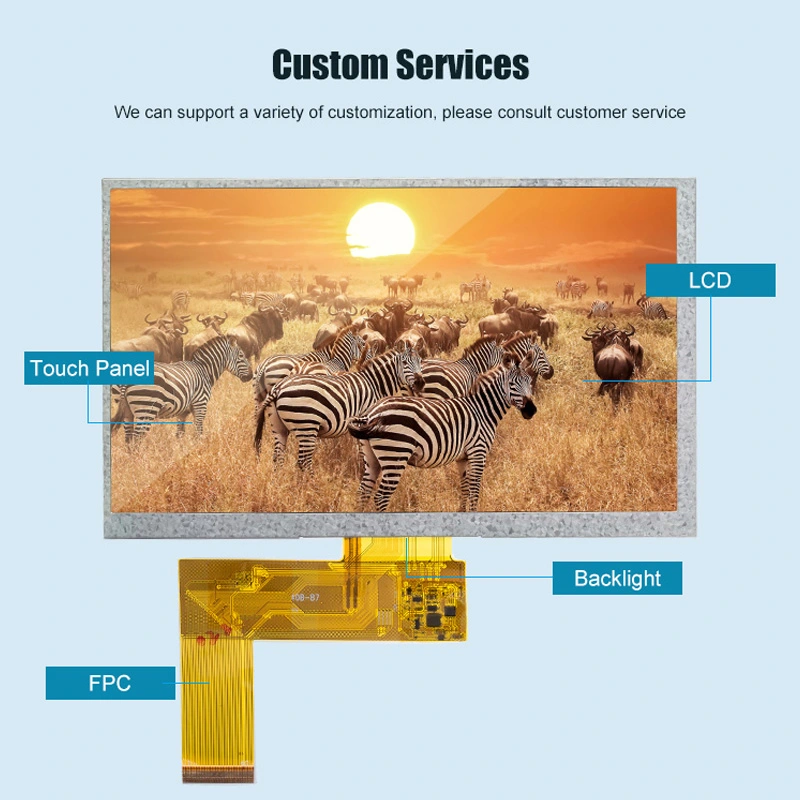

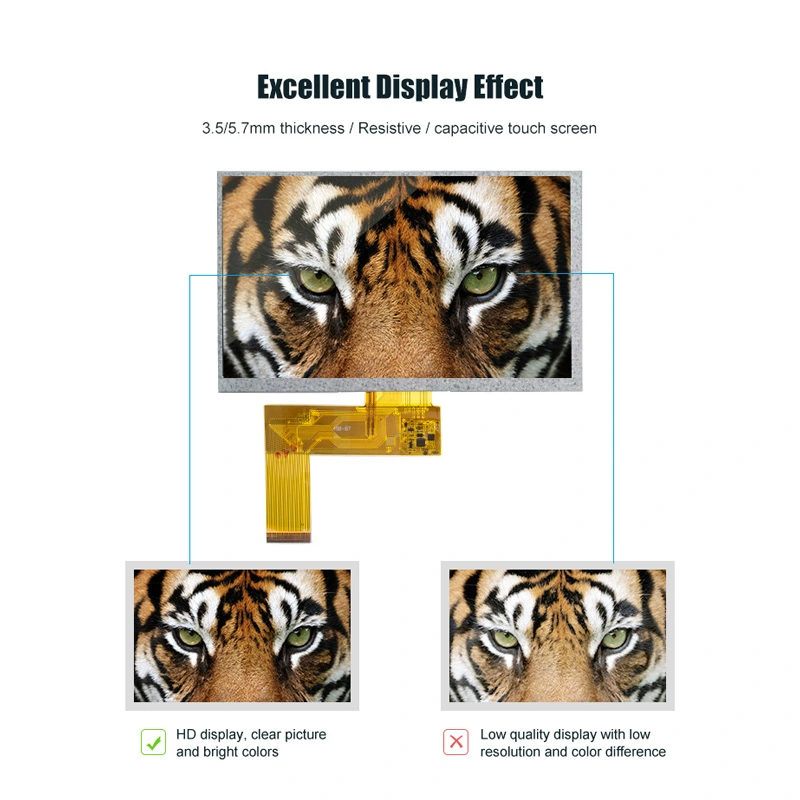

Capacitive touch and resistive touch optional
IPS/Full/All/Wide viewing angle

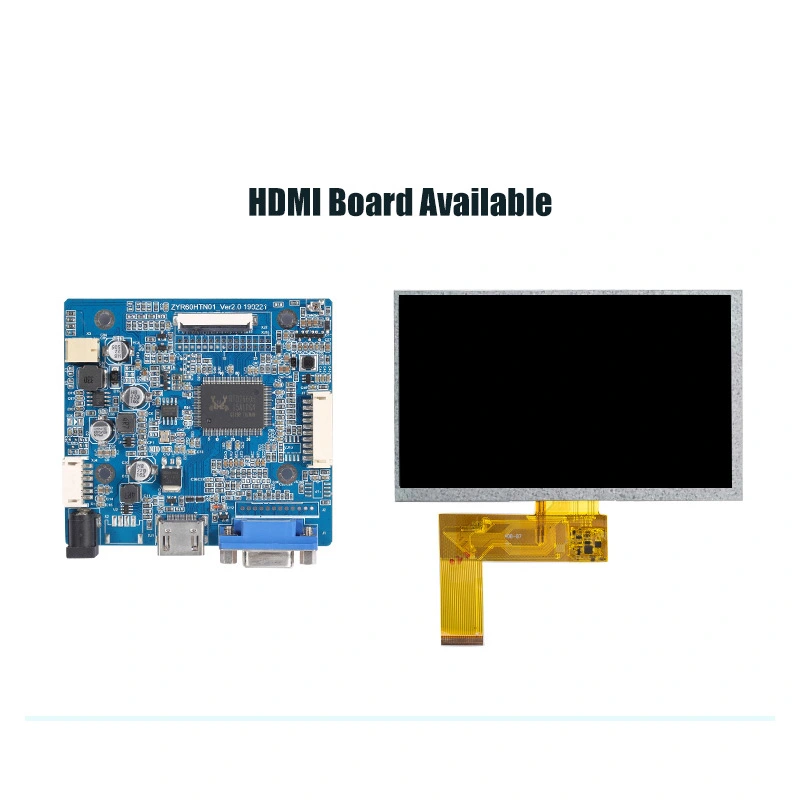

HDMI board
| Item | 7.0 inch TFT 1024x600 module display |
| Model No. | PV07063Y0150Q |
| Resolution | 1024*600 |

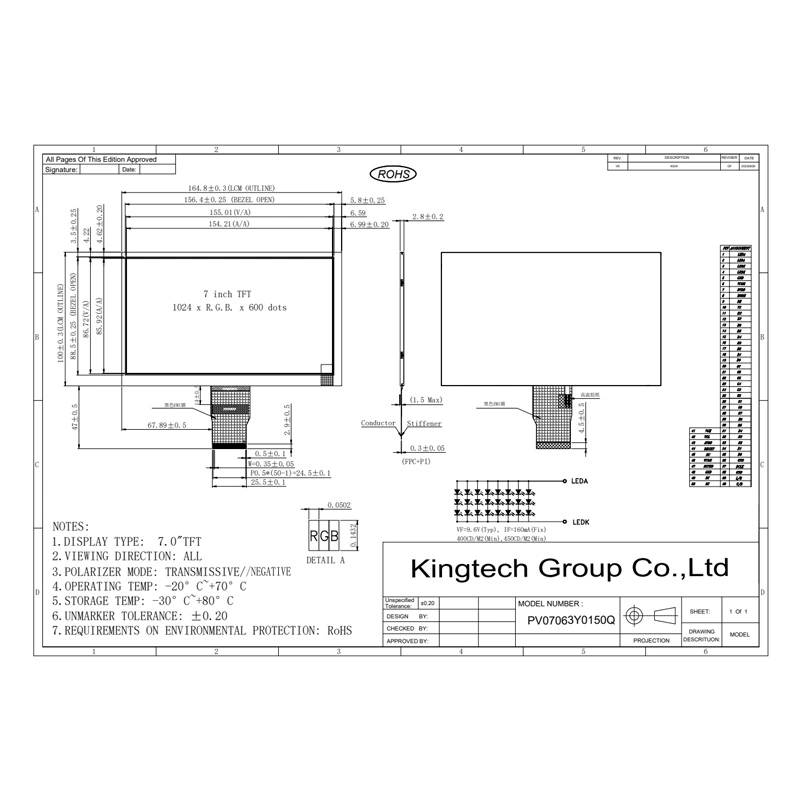

| Outline Dimension (mm) | 164.80*100.00*2.8 |
| Active Area (mm) | 154.21*85.92 |
| Viewing Angle | Full |
| Brightness | 450nits |
| Interface | TTL (Digital, RGB) |
| Backlight | 3*8LED |
| Driving IC | / |
| PIN No. | 50 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capacitive touch and resistive touch custom |
| Board | HDMI board |
| Application | Kiosk, POS, Motor, Vendor machine, Industrial control |
This 7inch can be used for Driving Recorder, Fitness Equipment, Auto Payment, Car Parking System, Access Control System, Car Diagnostics, Driving Recorder.
