Kingtech 8inch 800x600 RGB interface supply is very stable. This 8inch SVGA LCD display supports a 24bit RGB interface. The 8inch TFT module is 500nits brightness, it can be sunlight readable and outdoor. The life-time is 50000h. For the touch part, Kingtech can custom the touch panel according to the customer's requirements.
800x600/SVGA
12 o'clock
Landscape/Horizontal type
RGB interface
Stable supply
Capacitive touch screen to be customized
| Item | 8inch 800x600 Landscape RGB interface display |
| Model No | PV08005YP50E |
| Resolution | 800x600 |

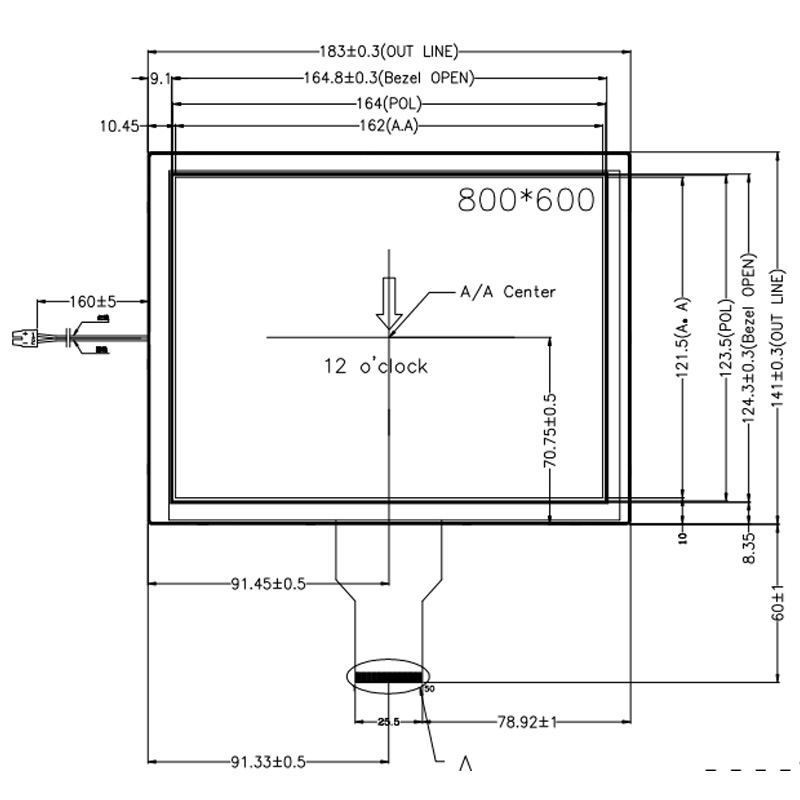

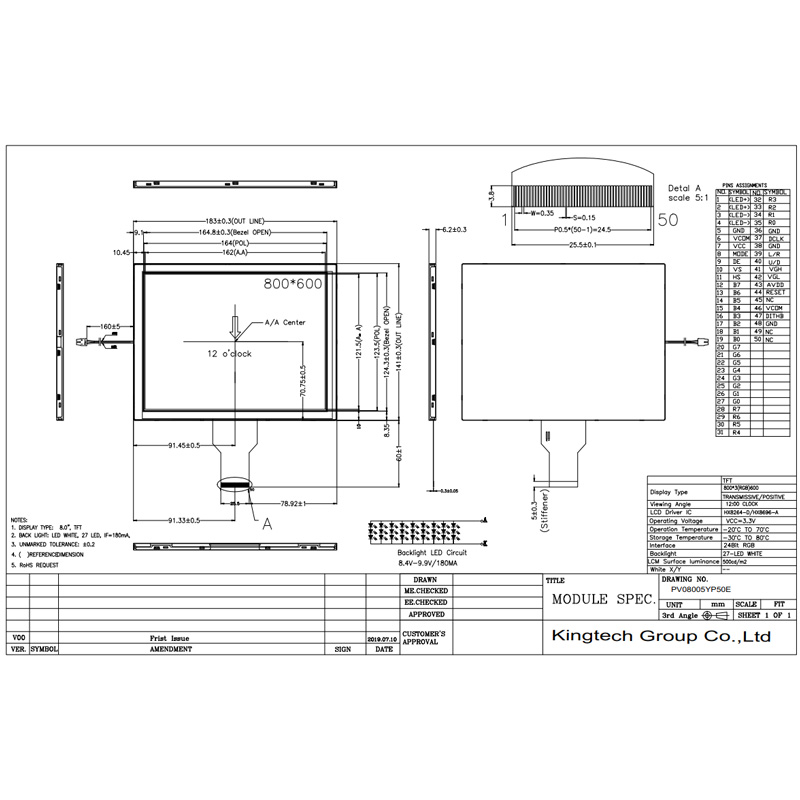

| Outline Dimension | 183.00*141.00*6.20 |
| Active Area(mm) | 162*121.5 |
| Interface | 24bit RGB |
| Driver IC | HX8264-D/HX8696-A |
| Brightness | 500nits |
| Viewing Angle | 12 O'clock |
| LED life | 50000h |
| Display Mode | TN / Transmissive / Normally white |
| PIN | 50 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Custom resistive and capacitive touchscreen |
The 8inch 800x600 RGB interface TN display module can be used for agricultural equipment, medical devices, handheld device, game console, smart homes, etc.
