Kingtech 10.4 inch 1024*768 IPS LCD display supply is very stable. This 10.4inch XGA supports the LVDS interface. It is a wide work temperature of -30℃~80℃. The lifetime is 50000h, the brightness is 500nits sunlight-readable, and this 10.4-inch screen is All/Free/Full/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer’s requirements.
All/Free/Full/Wide viewing angle/IPS
1024x768 / XGA
Stable supply
Wide temperature/-30℃~+80℃
High brightness/Sunlight readable/outdoor/500nits
Can custom capacitive touch screen
| Item | 10.4inch 1024x768 LCD display |
| Model No | PV104004YH30E |
| Resolution | 1024x768 / XGA |

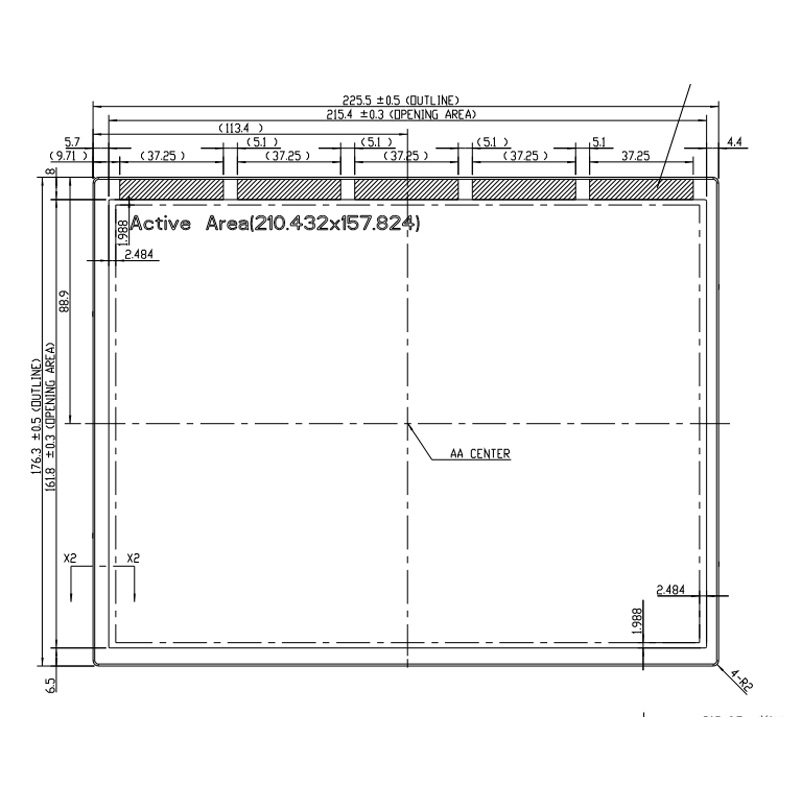

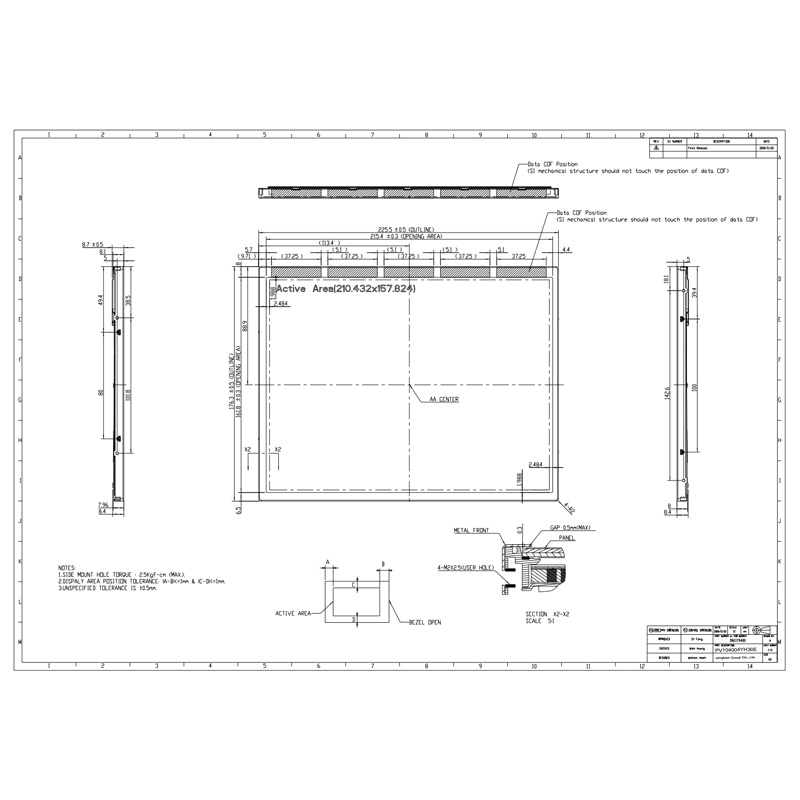

| Outline Dimension | 225.5 (H) x 176.3 (V) x 8.7 (T) |
| Active Area(mm) | 210.4 (H) x 157.8 (V) |
| Interface | LVDS |
| Brightness | 500nits |
| Viewing Angle | All |
| LED life | 50000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 30 |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 10.4inch 1024x768 IPS TFT LCD display can be used for industrial control, agricultural equipment, medical device, game console, outdoor and smart home, etc.
