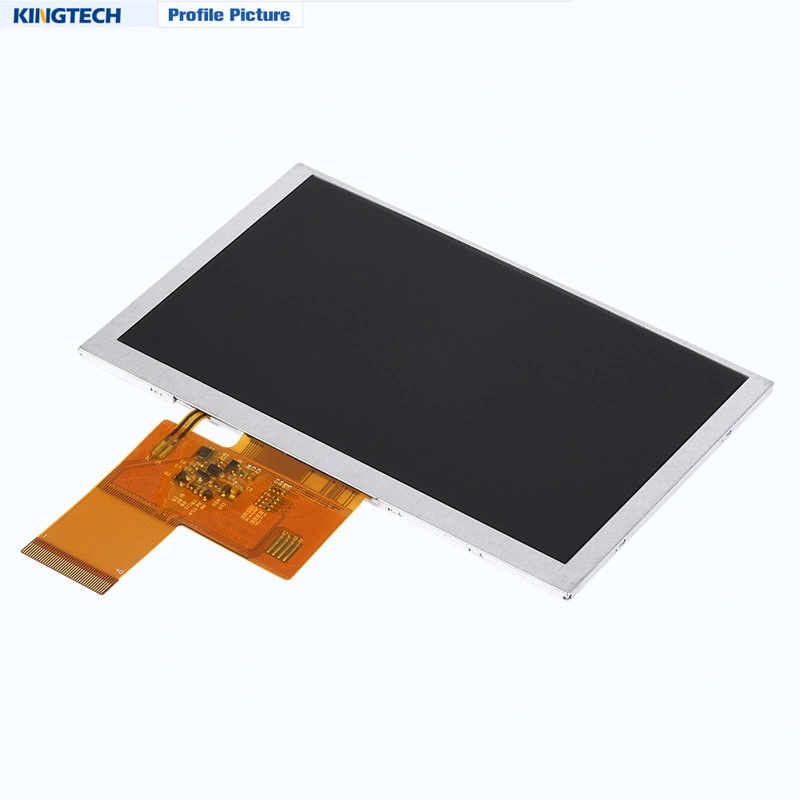

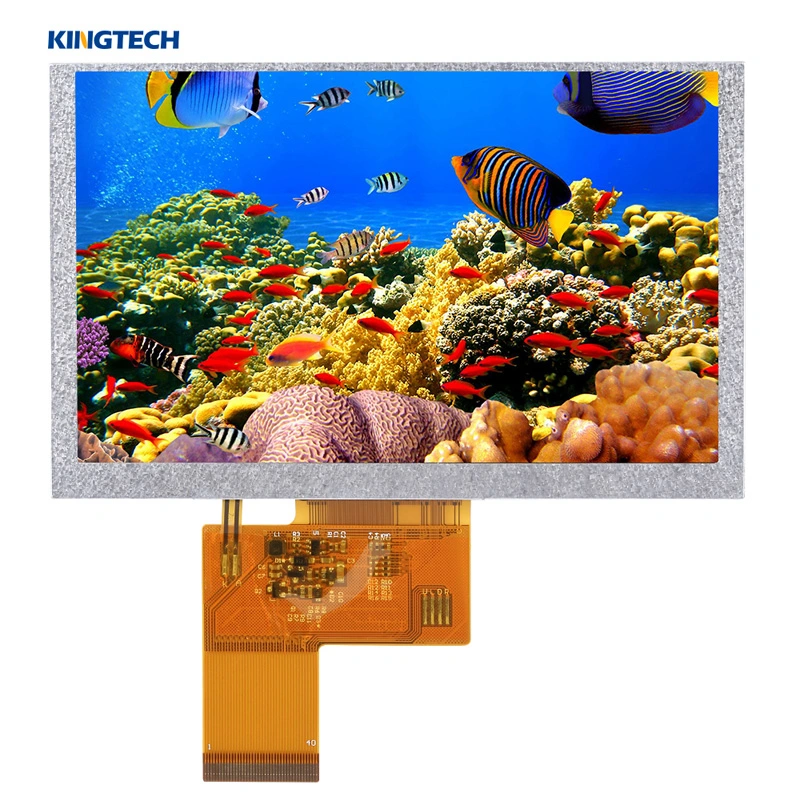

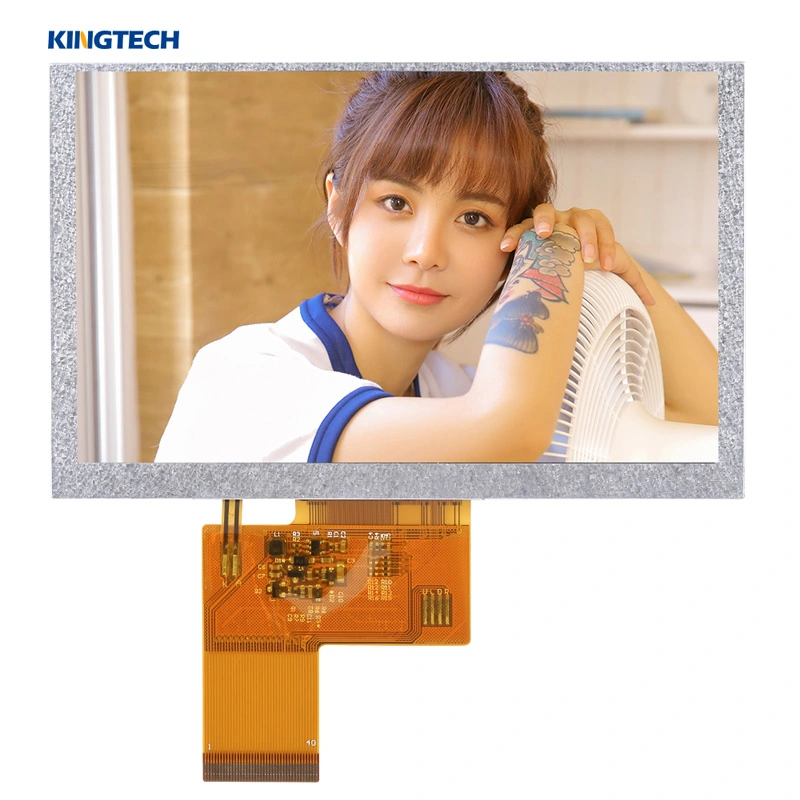

Kingtech 5.0 inch 800*480 TFT module display supply very stable. This 5.0 inch supports 24-bit Parallel RGB Interface. In addition, the 5.0 inch WVGA TFT display module brightness is 400-1000 nits high brightness, and this 5.0 inch screen is 12 o’clock. Both capacitive touch screen and resistive touch are available.
5.0 inch TFT display
800*480 /WVGA
Stable supply
12 O'clock
24-bit Parallel RGB Interface
400~1000nits brightness /Sunlight readable/ High brightness
Resistive touch and Capacitive touch
Medical, industrial,Smart Home Appliance,Security device
| Item | 5.0 inch TFT 800x480 LCD module display |
| Model No. | PV05015Y0140R |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.7*75.8*2.90 |
| Active Area (mm) | 108*64.80 |
| Viewing Angle | 12 o'clock |
| Brightness | 400-1000nits |
| Interface | 24-bit Parallel RGB Interface |
| Backlight | 6*2LED |
| Driving IC | ILI6122+ILI5960 |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Resistive touch screen and capacitive touch screen |
| Application | Medical, POS, industrial, Smart home Appliance |
The 4.3 inch 800*480 WVGA TFT display module can be used for Medical, Smart Home Appliance, Access control, industrial or others.
