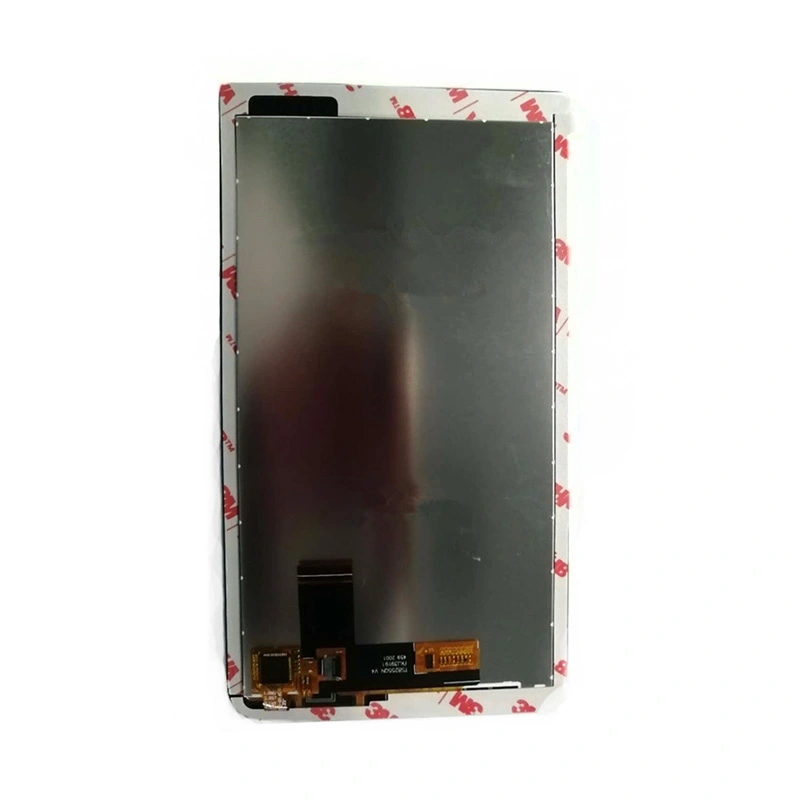

Kingtech PV05708D0140J-CT is a 5.7-inch 720*1440 dots TFT LCD module. It is composed of a TFT LCD panel, driver IC, FPC, backlight. It is IPS glass with Full viewing angle. LCD IC is integrated with JD9365D. It supports MIPI 4Line interface. Its work temperature is -10-60. It is with backlight of 7 Serial 2 Parallel LEDs (white). Its brightness is 500nits. Capacitive touch is optional. Touch driver ic is GT5688. It is suitable for mobile phone, industrial, medical, Hand-held device, smart home, outdoor, etc. This product accords with ROHS environmental.
5.7inch 720*1440 LCD with capacitive touch
Full/Wide/All viewing angle
High brightness/Sunlight readable/Outdoor
Support MIPI interface.
Can custom capacitive touch

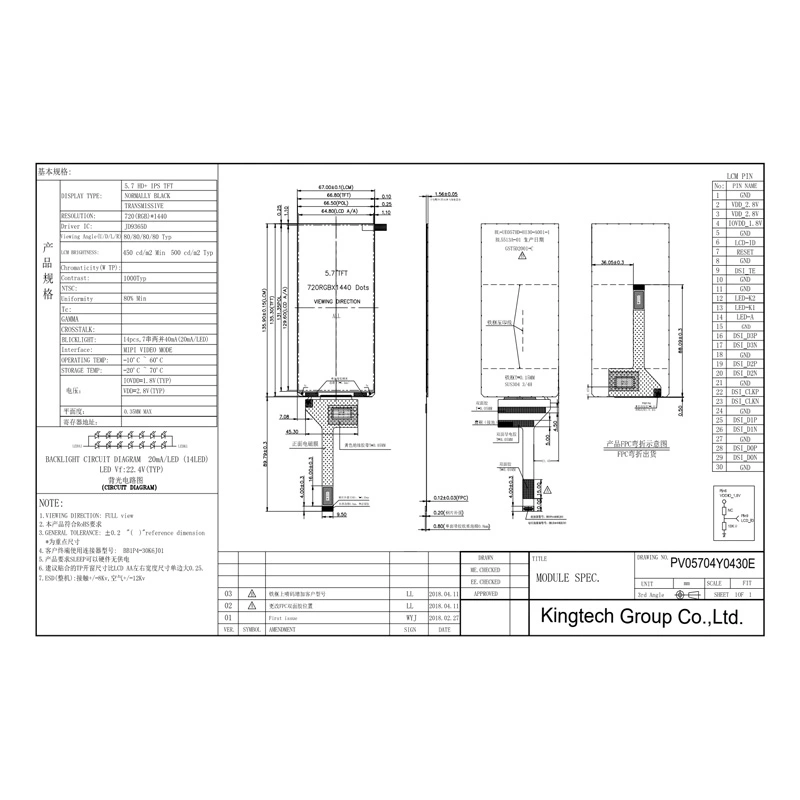

| Item | 5.7inch 720*1440 LCD Gorilla capacitive touch display |
| Model No. | PV05704Y0430E |
| Resolution | 720*1440 |
| Outline Dimension (mm) | 73.23*145.99*2.93 |
| Active Area (mm) | 64.8*129.60 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | MIPI 4 lane |
| Backlight | 7*2LED |
| Driving IC | JD9365D |
| Pin No. | 30 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Capacitive touch optional |
| Application | Industrial, Medical, Smart Home, Home appliance, Meter, outdoor |
The 5.7inch 720x1440 TFT LCD display application is for Medical, hand-held device, industrial, outdoor, advertising, E-bike, thermostat, elevator, video door, automotive and 3D printer, etc.
