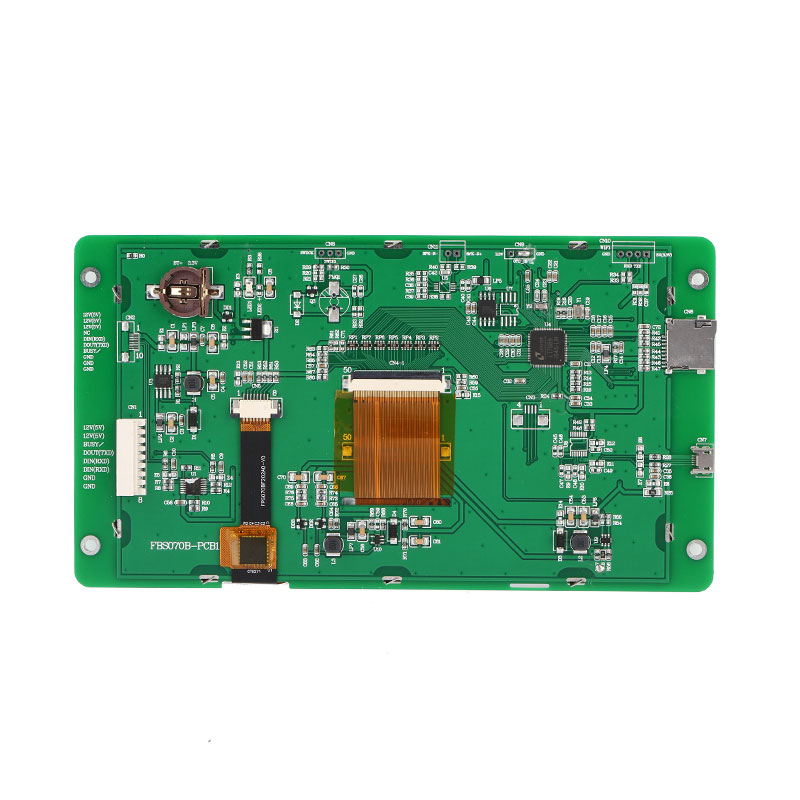

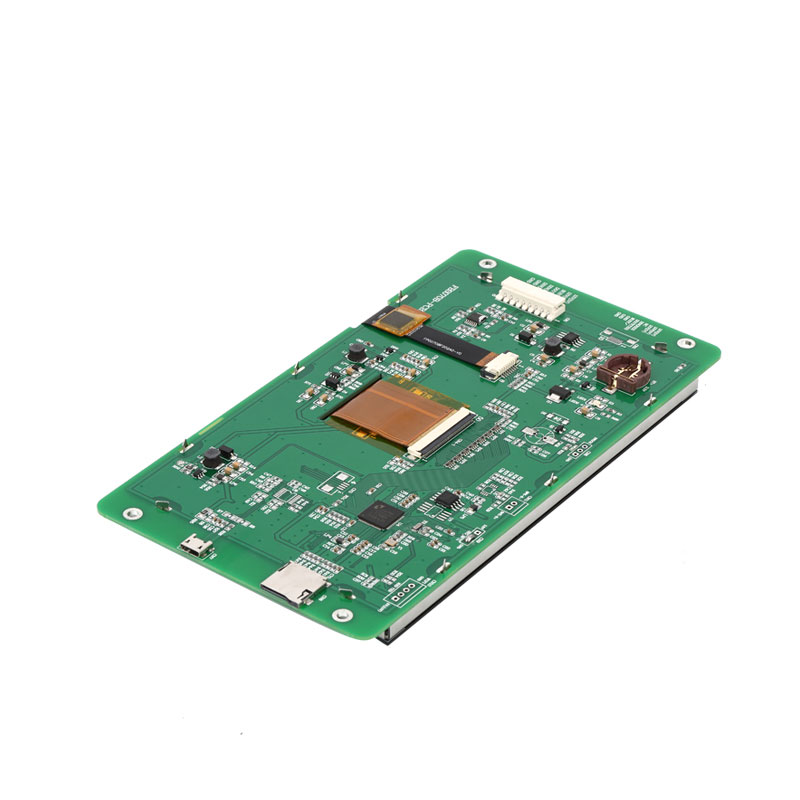

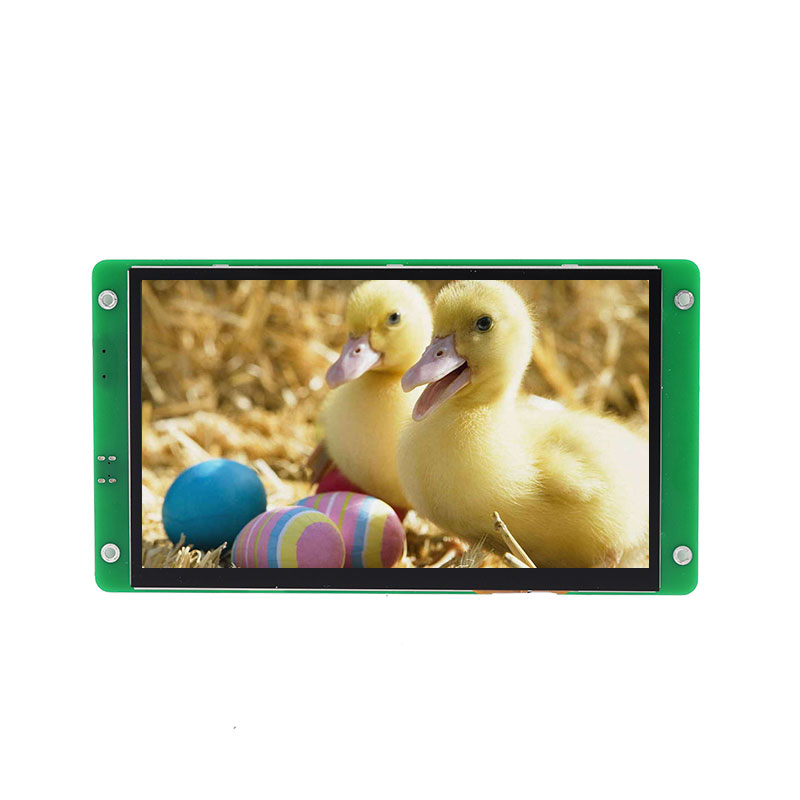

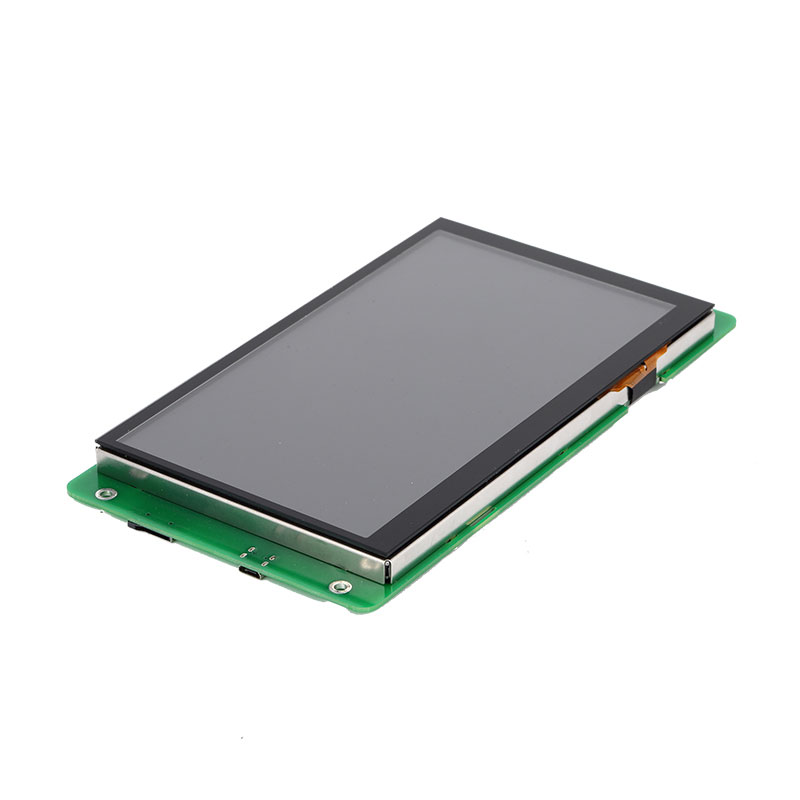

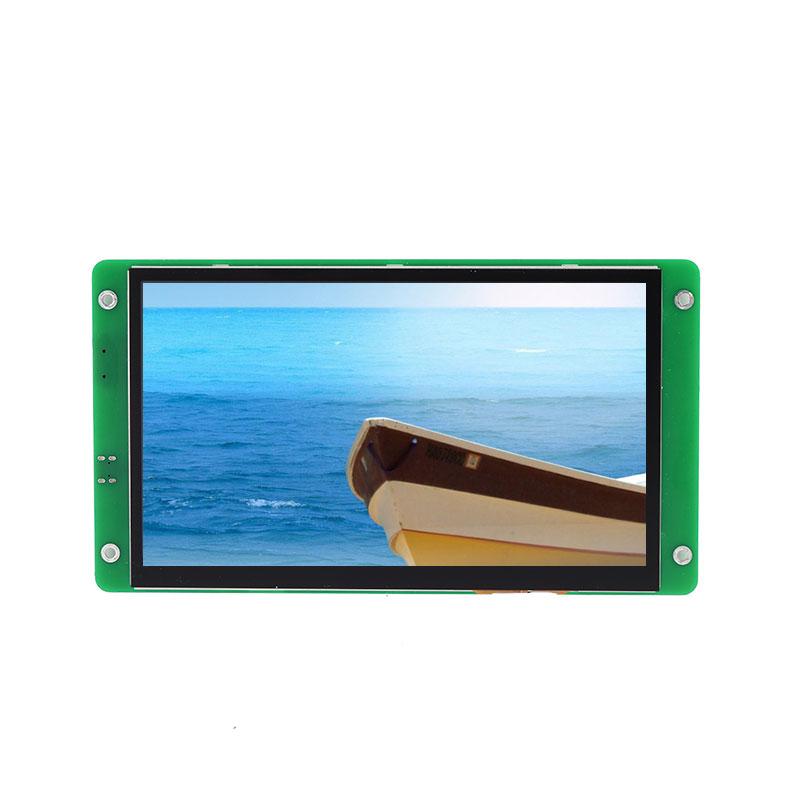

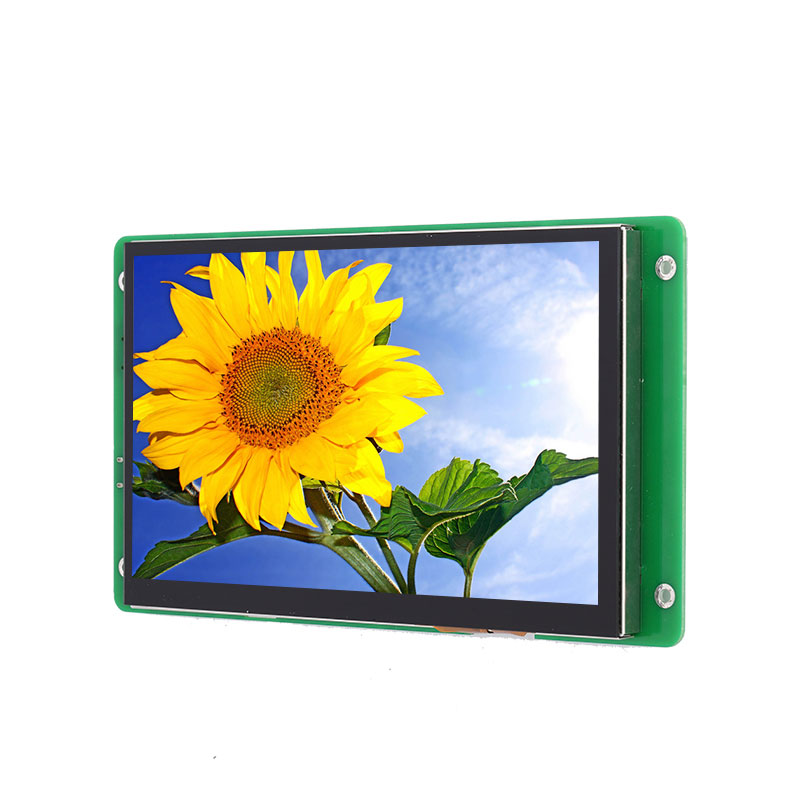

Kingtech 7 inch 800*480 Uart Serial Hmi Displayl Module supply very stable. This 7inch WVGA LCD supports RS232 (TTL UART) interface, LT7689 Driver IC. In addition, the 7 inch TFT module brightness is 500nits, and this 7 inch screen is TN Viewing Angle / 6 O’ CLOCK Viewing Angle type. For the touch part, can provide capacitive and resistive touch .
1. Landscape / Horizontal
2. 800*480 / WVGA
3. Stable supply
4. RS232 (TTL UART) interface
5. 500nits brightness/ High brightness / Sunlight readable
6. Provide capacitive touch and resistive touch
| Item | 7 inch 800*480 Uart Serial Displayl Module |
| Model No | PVS070800480R001C |
| Resolution | 800x480 |
| PCBA Outside | 190.5(W)*105.4(H)*16(T) |
| Outline Dimension | 165(W)*100(H)*3.50(T)mm |
| Active Area(mm) | 154.08(W)*85.92(H)mm |
| Viewing Angle | 6.0' CLOCK/ TN |
| Driver IC | LT7689 |
| Interface | RS232 (TTL UART) |
| Input Voltage | 5.0V or 12V（VDD） |
| Backlight Luminance | 500 |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch screen | Capacitive touch |
The 7 inch 800*480 /WVGA Uart Serial Displayl Module can be used for agricultural equipment, medical device, and smart home etc.
