7" 450nits 1024x600 TFT LCD display module

7″ 450nits 1024×600 TFT LCD display module

Key Specifications:

Model No.: PV07063Y0150Q
Screen Size: 7.0 inches (diagonal)
Resolution: 1024×600 (WSVGA)
Brightness: 450 nits – suitable for indoor & semi-outdoor applications
Viewing Angle: All-angle (IPS-like performance)
Interface: TTL (Digital RGB, 24-bit)

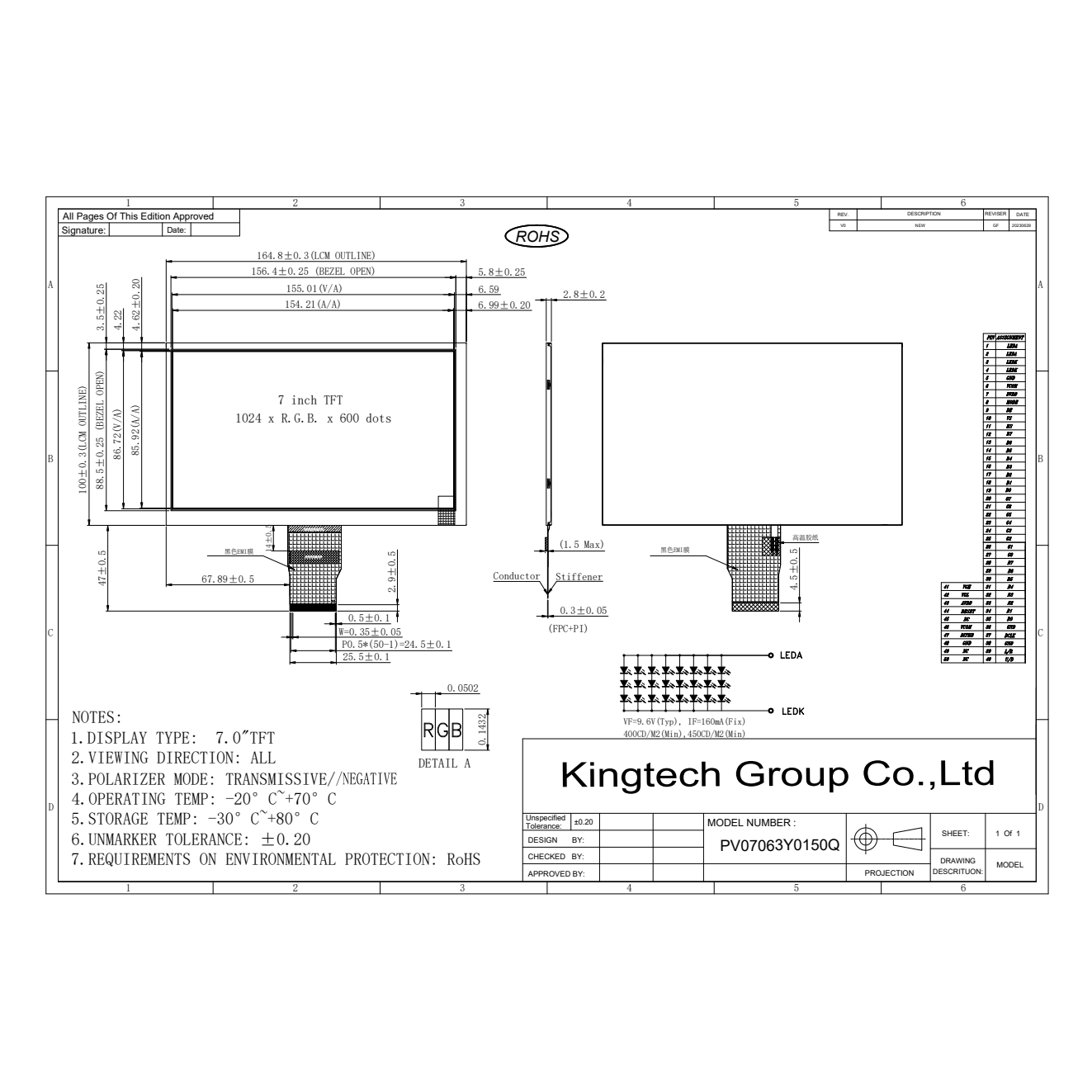

Active Area: 154.21mm × 85.92mm
Outline Dimension: 164.80mm × 100.00mm × 2.8mm
Backlight: 3*8 LED for long life and energy efficiency
Pin Count: 50 pins
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C

Touchscreen & Board Options:

Supports capacitive or resistive touch panel customization
Optional HDMI driver board available for plug-and-play integration
FPC, connector, or signal customization available for project matching

Typical Applications:

Industrial automation equipment
Touchscreen POS and kiosk terminals
Smart vending and self-service machines
Automotive dashboards and vehicle monitors
Embedded systems & control panels
Portable medical instruments

For product pricing,customization,or other inquiries:

Share to:

Description

Overview:
The PV07063Y0150Q is a 7.0-inch TFT LCD module with a 1024×600 pixel resolution, delivering sharp images and vibrant colors across a full viewing angle IPS panel. Featuring a TTL (RGB) digital interface, 450nits brightness, and optional HDMI controller board, this module is designed for high-reliability display needs in industrial, automotive, and commercial sectors.

Advantages:
