7.0 inch 1280×800 MIPI all view landscap screen with JD9366 IC TFT LCD display

Item 7inch 1280X800 IPS MIPI interface display
Model NoPV07015YP24R
Resolution 1280 x 800
Outline Dimension 170*115*4.75
Active Area(mm)150.72*94.2
Interface MIPI Interface
Viewing AngleAll
Driver ICJD9366
Display Mode Transmissive / Normally Black
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Brightness300nits
Touch screencapacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

All view 7 inch 1280×800 resolution IPS MIPI interface TFT LCD display

1.  PV07015YP24R mainly application for Industrial ,medical equipment .
2. It with1280x800 resolution , 300nits brightness, MIPI interface, JD9366 Driver IC, IPS / Full / All/ Wide viewing angle, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

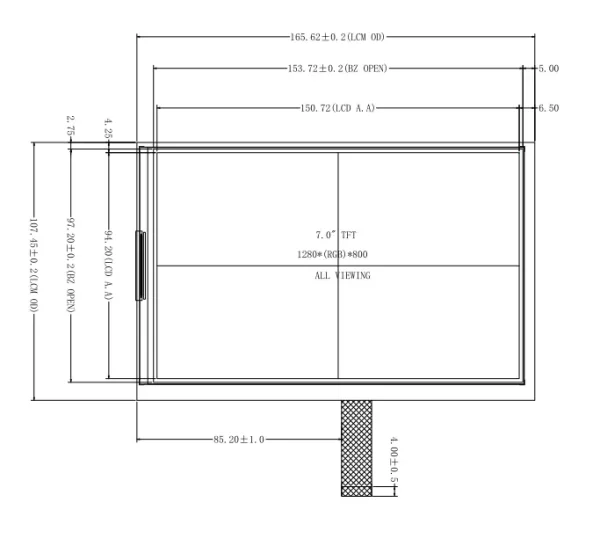

IPS 7.0 inch TFT LCD front view

PV07015YP24R front

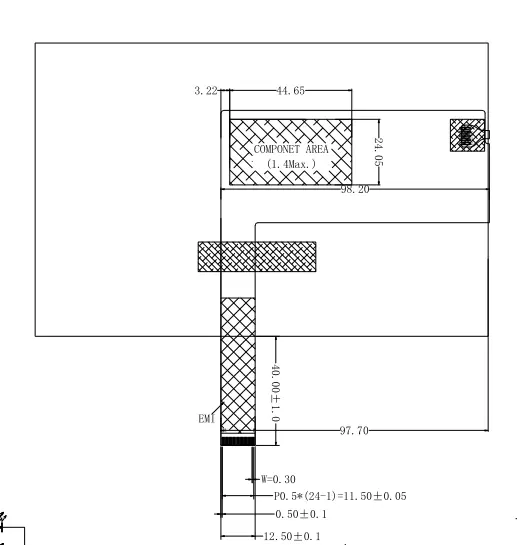

MIPI interface 7.0 inch TFT LCD back view

PV07015YP24R back
