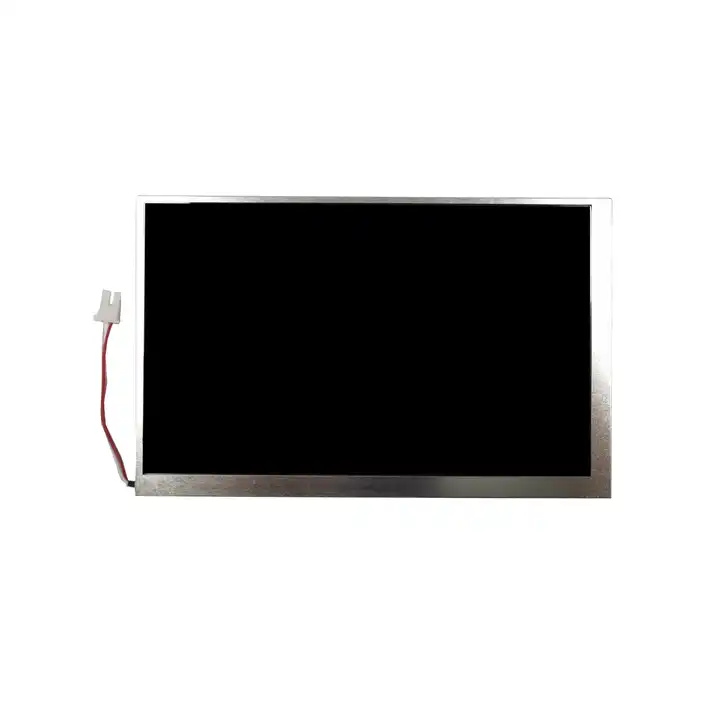

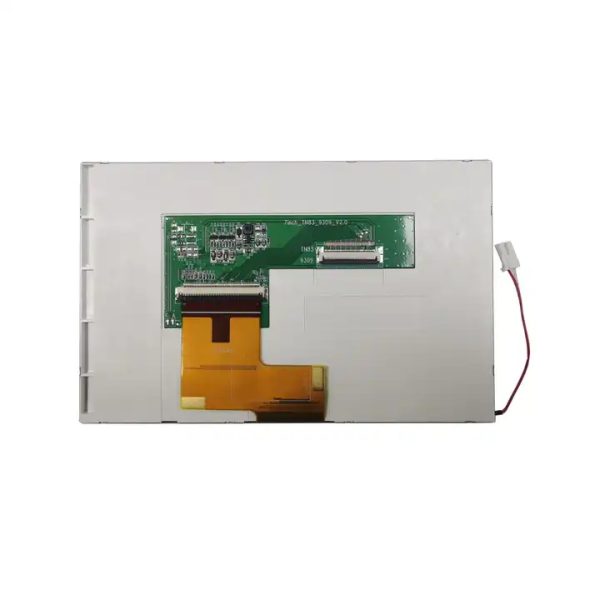

7 inch 800×480 TFT module display
| Item | 7.0 inch TFT 800×480 module display |
| Model No. | PV07055T0140G |
| Resolution | 800*480 |
| Outline Dimension (mm) | 165.00*104.54*5.2 |
| Active Area (mm) | 152.4*91.44 |
| Viewing Angle | 12 O’clock |
| Brightness | 500nits |
| Interface | 18bit interface |
| Backlight | 3*8LED |
| Driving IC | EK9713B+EK73002 |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | With/without capative touch screen |
| Application | Industrial equipment such as small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator. |
For product pricing,customization,or other inquiries:
Share to:
- TN TFTLCD display
- 800×480 /WVGA
- Stable supply
- 12O’clock
- 18 bit RGBinterface
- 500nits brightness
- With/without capacitive touch
- Industrial equipment, such as small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator.
