40 pin 800×480 7″ 7 inch tft lcd module display

Item7.0 inch 800*480 TN83 TFT module display
Model NoPV07005YP40E
Resolution800×480
Outline Dimension165*104.54*5.2  MM
Active Area(mm)152.40*91.44
Interface18-BIT RGB
Viewing Angle12 O’clock
Driving ICHX8262+HX8678
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness430nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 resolution RGB interface tft lcd display

1.PV07005YP40E mainly application for Industrial ,medical equipment .

2.It with800x480 resolution , 430nits brightness ,RGB interface ,HX8262-+HX8678 driver IC .

3.It also can custom touch panel as customer ‘s requirement .

4.It is A grade product , the good quality well use for Industrial ,medical application .

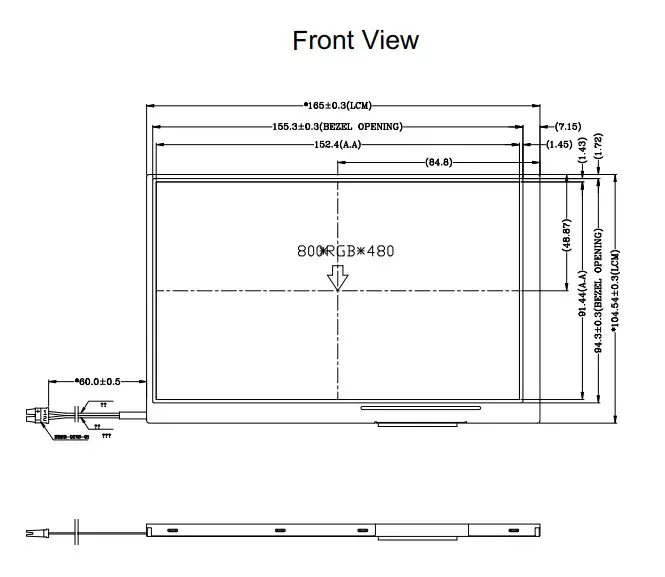

7 inch 800×480 resolution RGB interface tft lcd display Front View

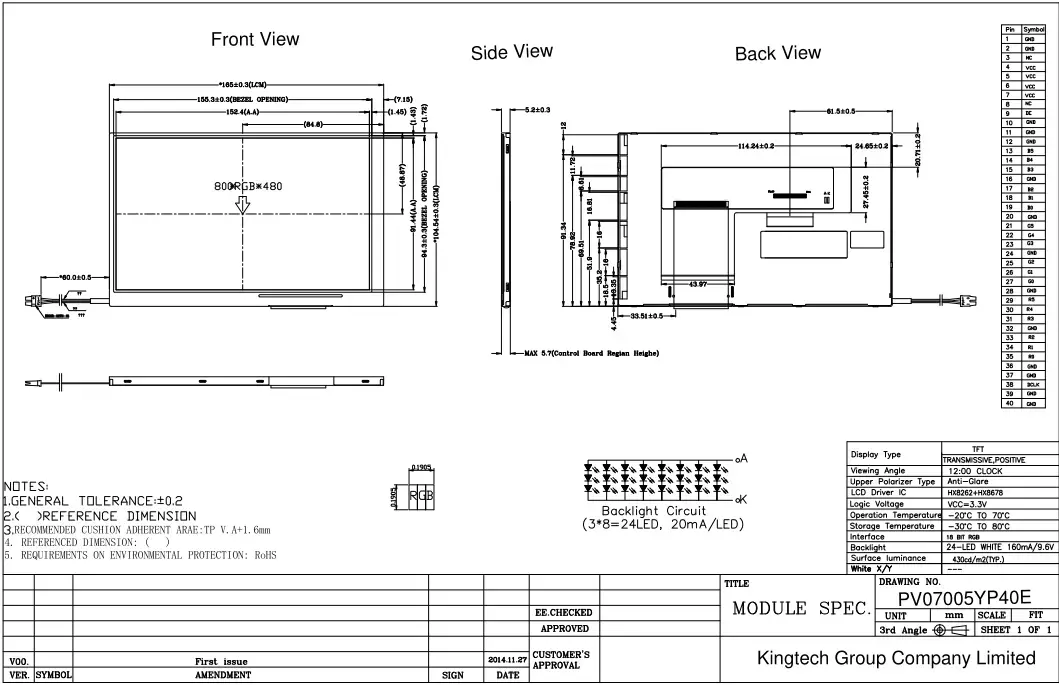

7.0 inch 800*480 TN83 TFT module display

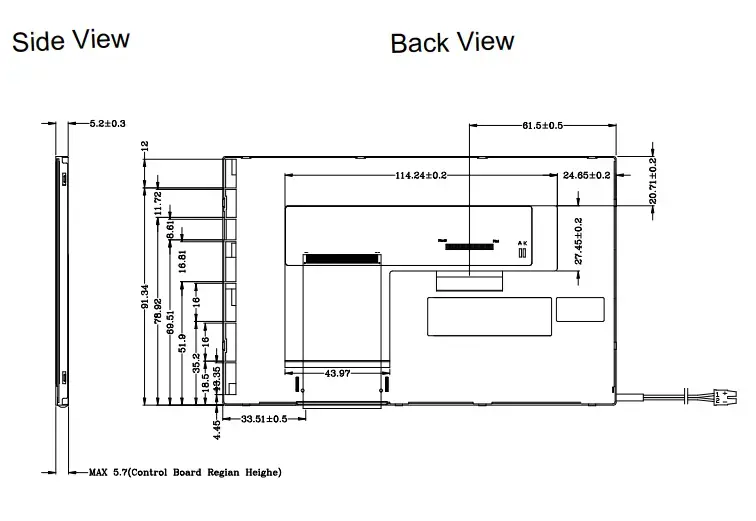

7 inch 800×480 resolution RGB interface tft lcd display Back View

7.0 inch 800*480 TN83 TFT module display
