TFT LCD Display

Kingtech produce difference sizes of transflective LCD display.

transflective LCD display – that is, the mirror on the back of the reflective screen is replaced by a mirror reflective film. And add full penetration type backlight;  It can be said that semi – reflective semi – transparent screen is a hybrid of reflective screen and full – transparent screen.  It brings together the best of both, with a reflective screen for excellent outdoor reading in sunlight, and a fully transparent screen for excellent reading in low light and no light.

transflective LCD display features: the backlight brightness automatically adapt to the outdoor environment.  The backlight (sunlight) reflected by the reflective film is as strong as the outdoor sunlight.  No matter how strong the outdoor sunlight brightness is, the stronger the ambient light is, the stronger the reflected backlight is. In the outdoor environment, it can completely not rely on additional backlight lighting equipment, so it saves a lot of electricity in the outdoor than the full-penetration screen, and the reading effect is much better.

Areas of application: A, aircraft display instrument: aircraft, fighter aircraft, helicopter airborne display screen, B, on-board display: on-board computer, GPS, smart meters, TV screen, C, high-end phones, D, outdoor instrument: handheld GPS, three phones, E, portable computers: three computers, UMPC, high-end mids, high-end tablets, hand-held computers.

We have below transflective LCD display available:

1.19inch transflective LCD display/240×240 resolution/diameter 30.24mm round display/RGB interface/IPS free viewing angle/sunlight readable with low power consumption.

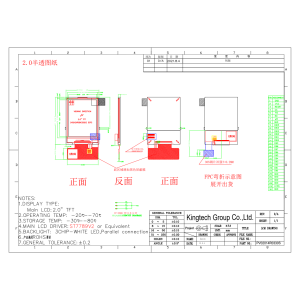

2.0inch transflective LCD display/320×240 resolution/active area dimension 40.8×30.6mm/MCU interface/IPS free viewing angle/sunlight readable with low power consumption.

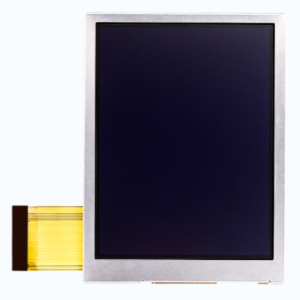

3.5inch transflective LCD display/240×320 resolution/SPI+18bit RGB interface/IPS free viewing angle/sunlight readable with low power consumption.

3.5inch transflective LCD display/480×640 resolution/RGB interface/IPS free viewing angle/sunlight readable with low power consumption.

If you have transflective display inquiry,welcome to contact us at anytime.
