TTL/RGB interface 7 inch 1024×600 resolution IPS LCD module

Item7 inch 1024×600 ips display
Model NoPV07026LZR50B
Resolution1024×600
Outline Dimension164.90(W)*100.00(H)*2.8(T)
Active Area(mm)154.21(W)*85.92(H)
Brightness450nits / 1000nits
Viewing AngleAll
InterfaceTTL / RGB
PIN50
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
TouchResisitve / capacitive touch screen
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

7 inch 1024×600 ttl/RGB interface IPS 450NITS brightness LCD display

1. PV07026LZR50B mainly application for  Industrial, medical equipment.
2. It with IPS/ All/ Wide viewing angle, 1024×600 resolution , 450nits/1000 nit brightness ,TTL/RGB interface , existing capacitive and  HDMI board to to support Raspberry PI.
3. It also can custom touch panel as customer ‘s requirement .
I4. t is A grade product , the good quality well use for Industrial ,medical application. And it have EMI protection.

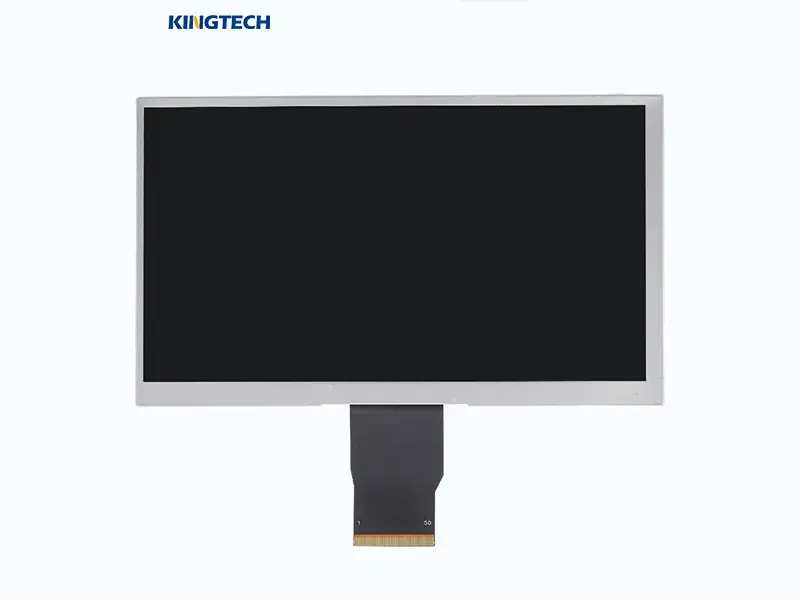

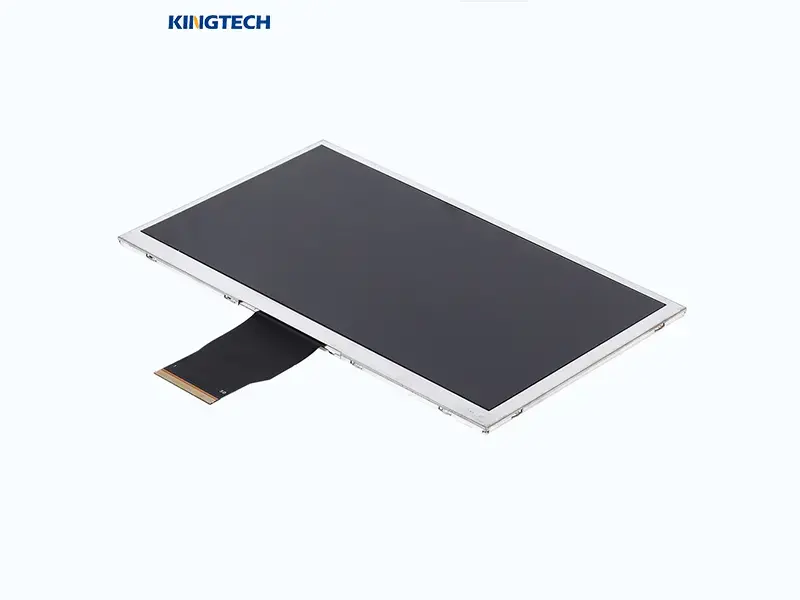

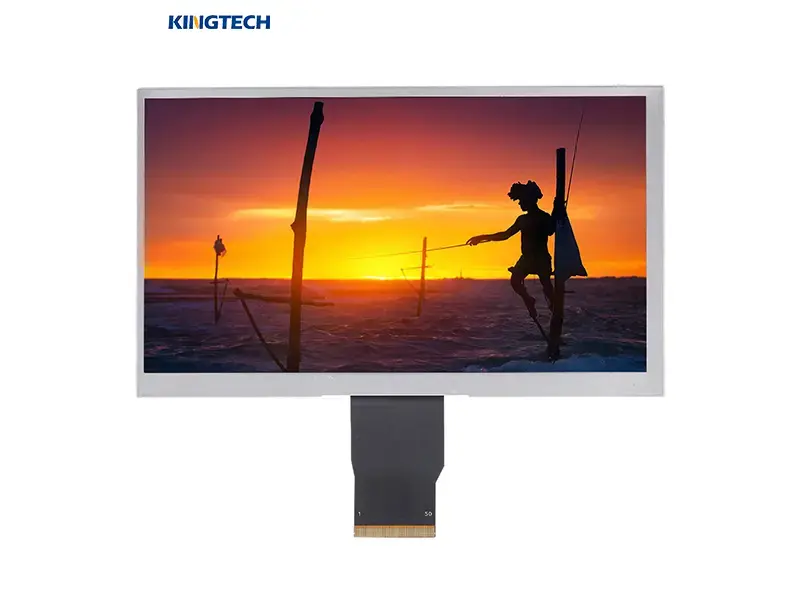

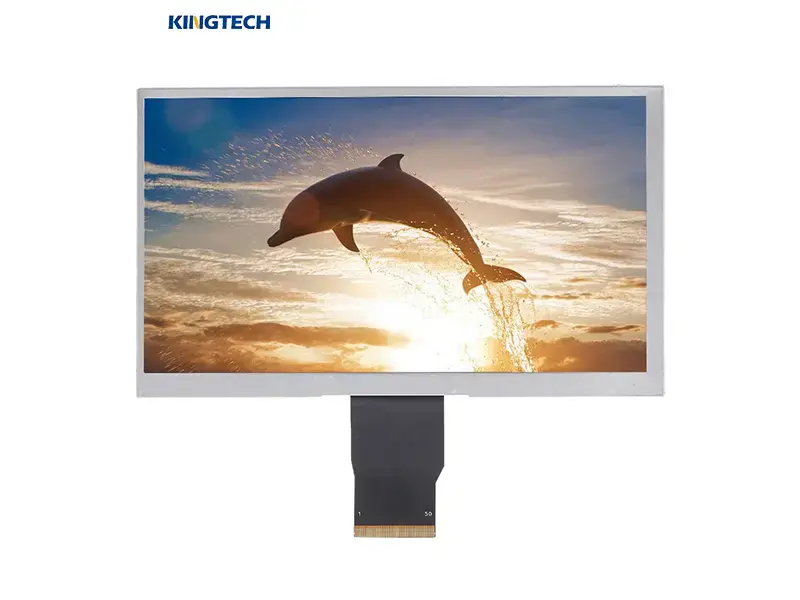

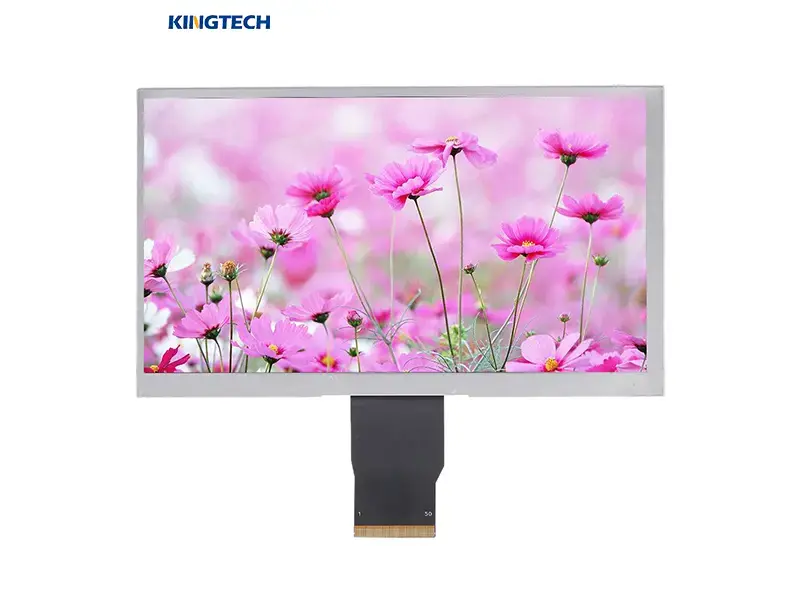

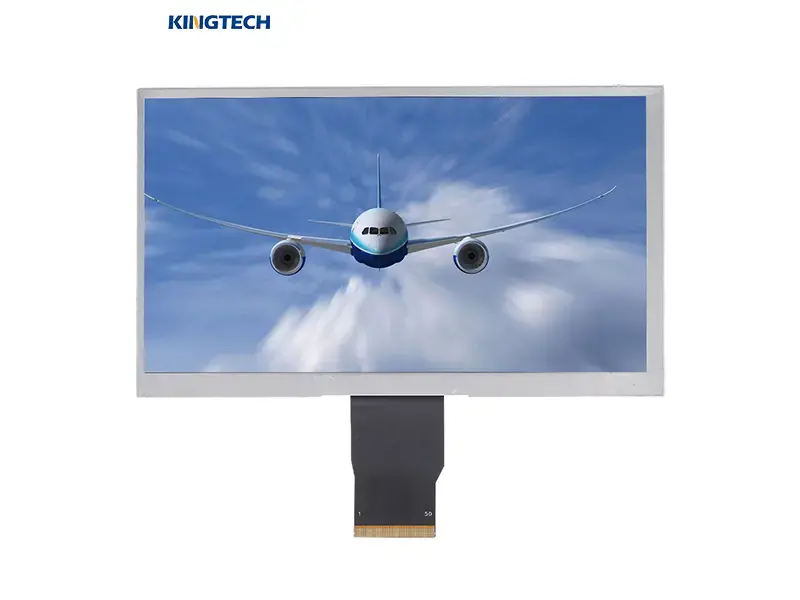

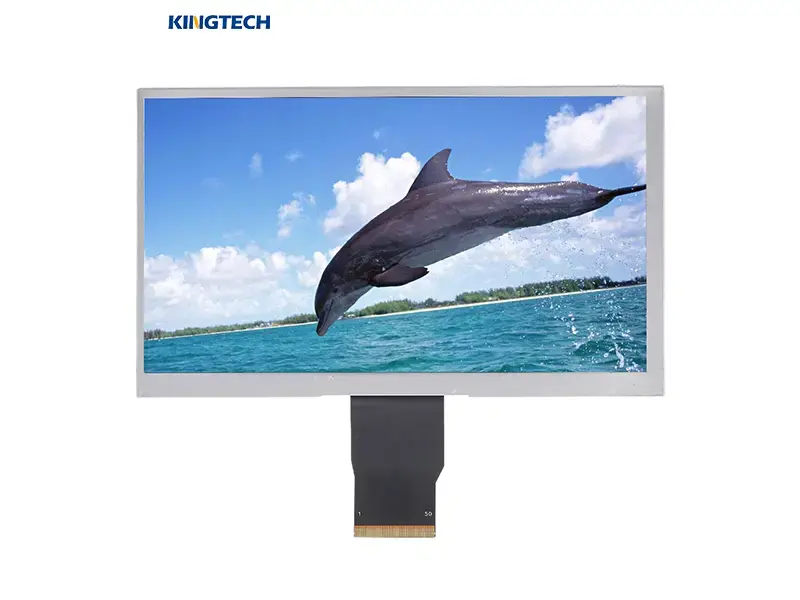

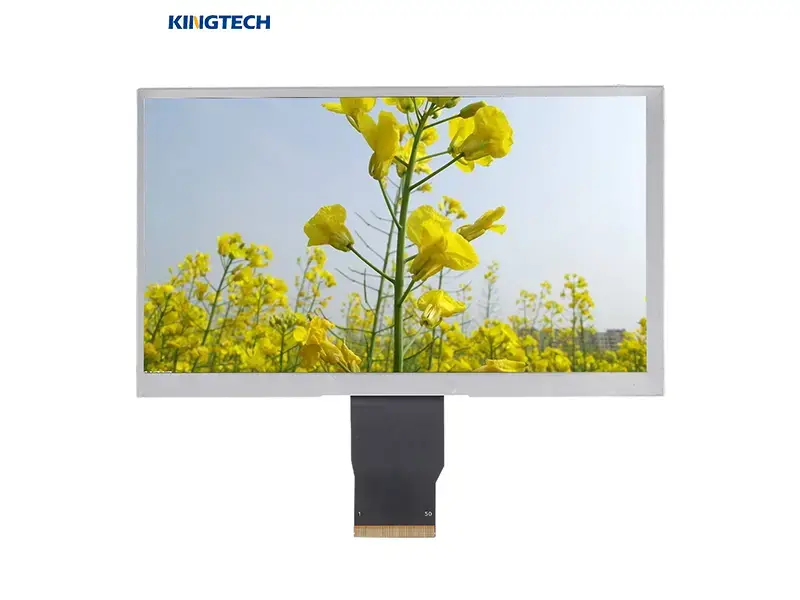

7 inch 1024×600 all view LCD display front view

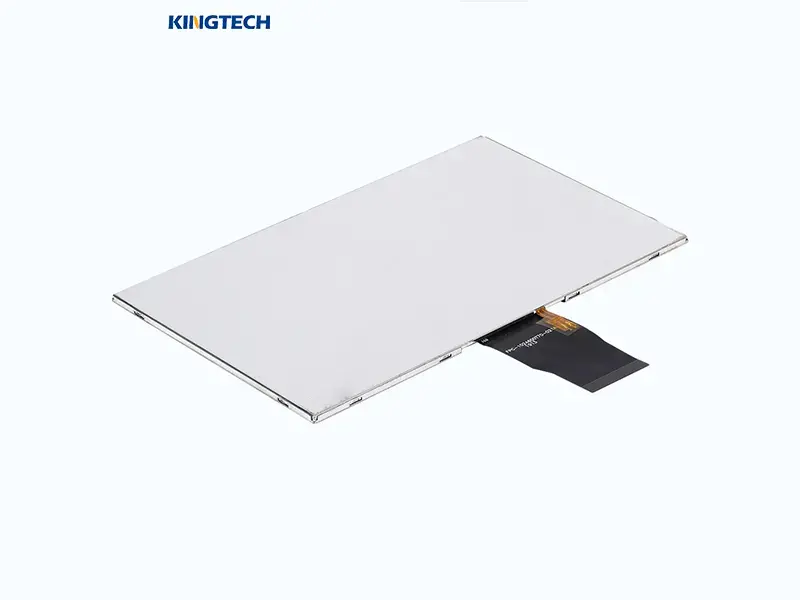

7 inch 1024×600 all view LCD display back view

7 inch 1024×600 all view LCD display HDMI boardRGB interface 7 inch 1024x600 resolution lcd module

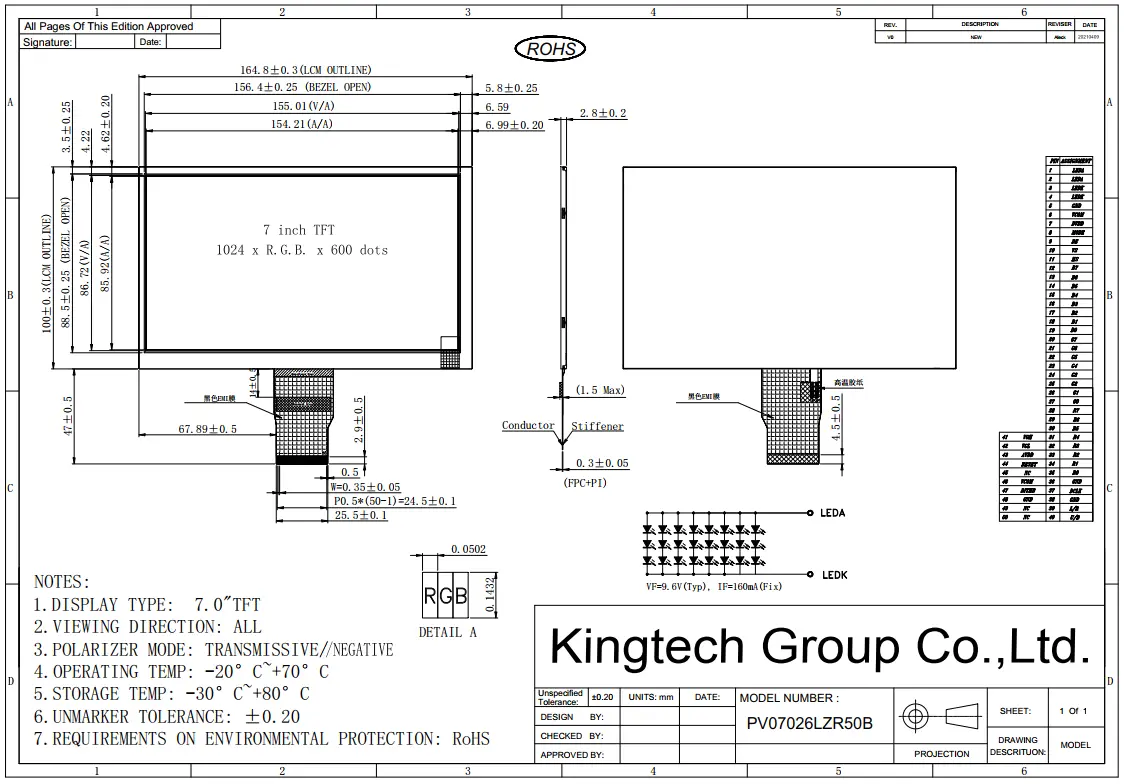

7 inch 1024×600 all view LCD display Machine Drawing
