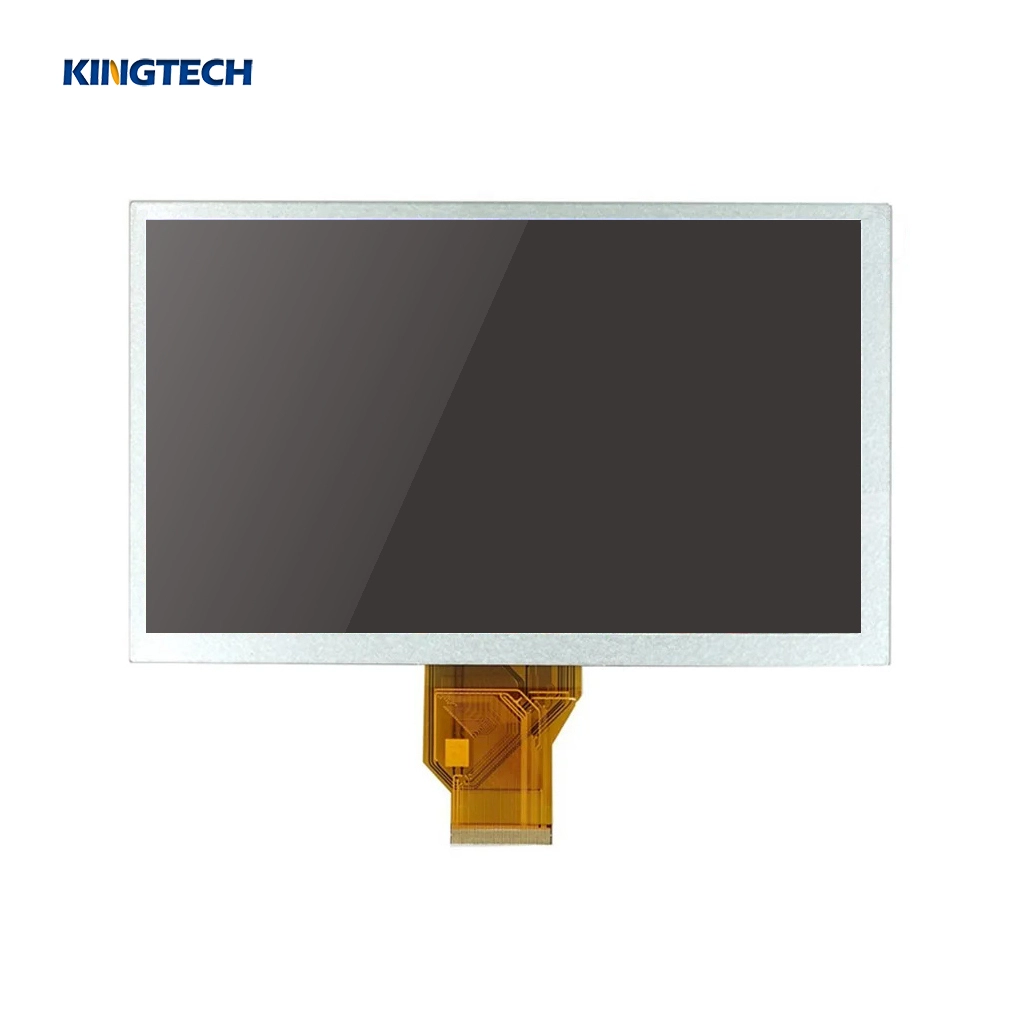

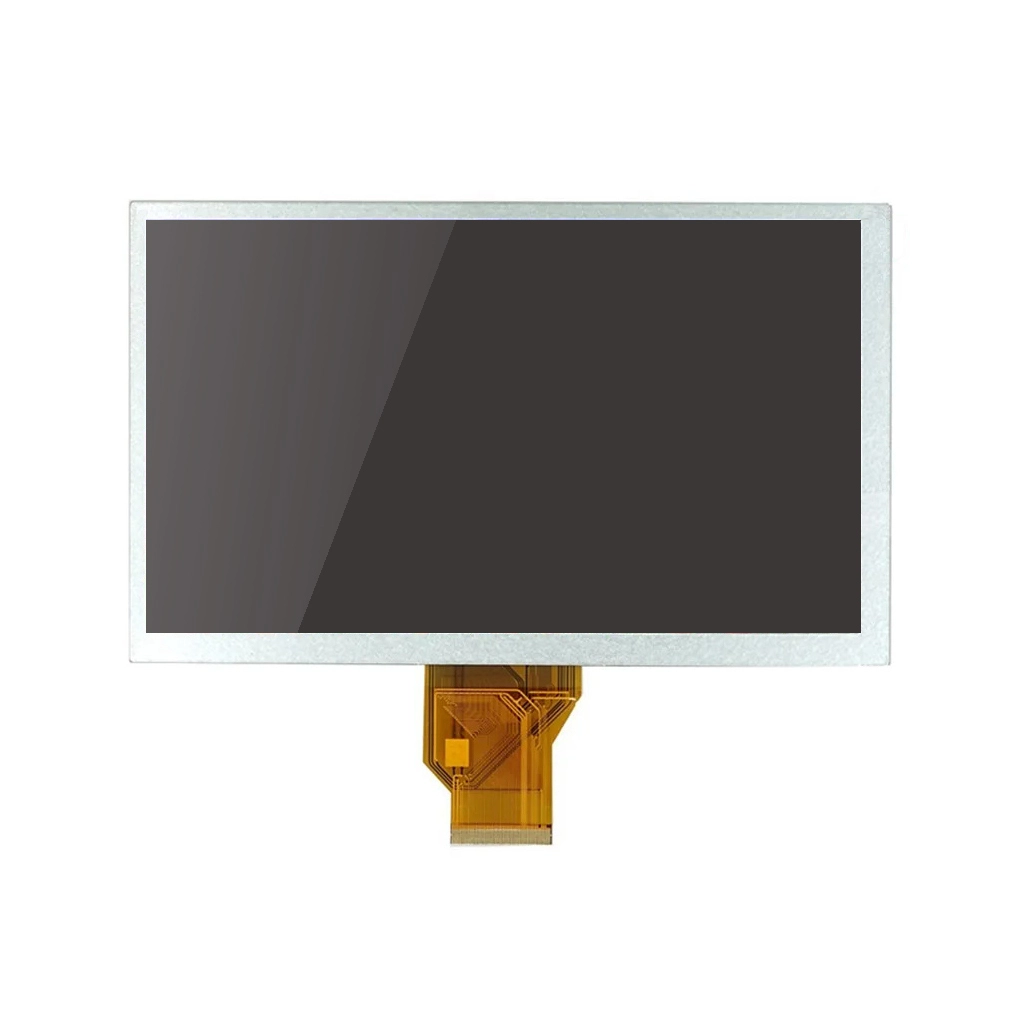

Kingtech 9 inch 1024*600 TFT display supply very stable. This 9 inch supports LVDS interface. In addition, the 9 inch 1024*600 TFT display module brightness is 450 nits, and this 9 inch WSVGA display is 6 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
9 inchTFT display
1024*600/WSVGA
Stable supply
6 O'clock
LVDS interface
450nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial

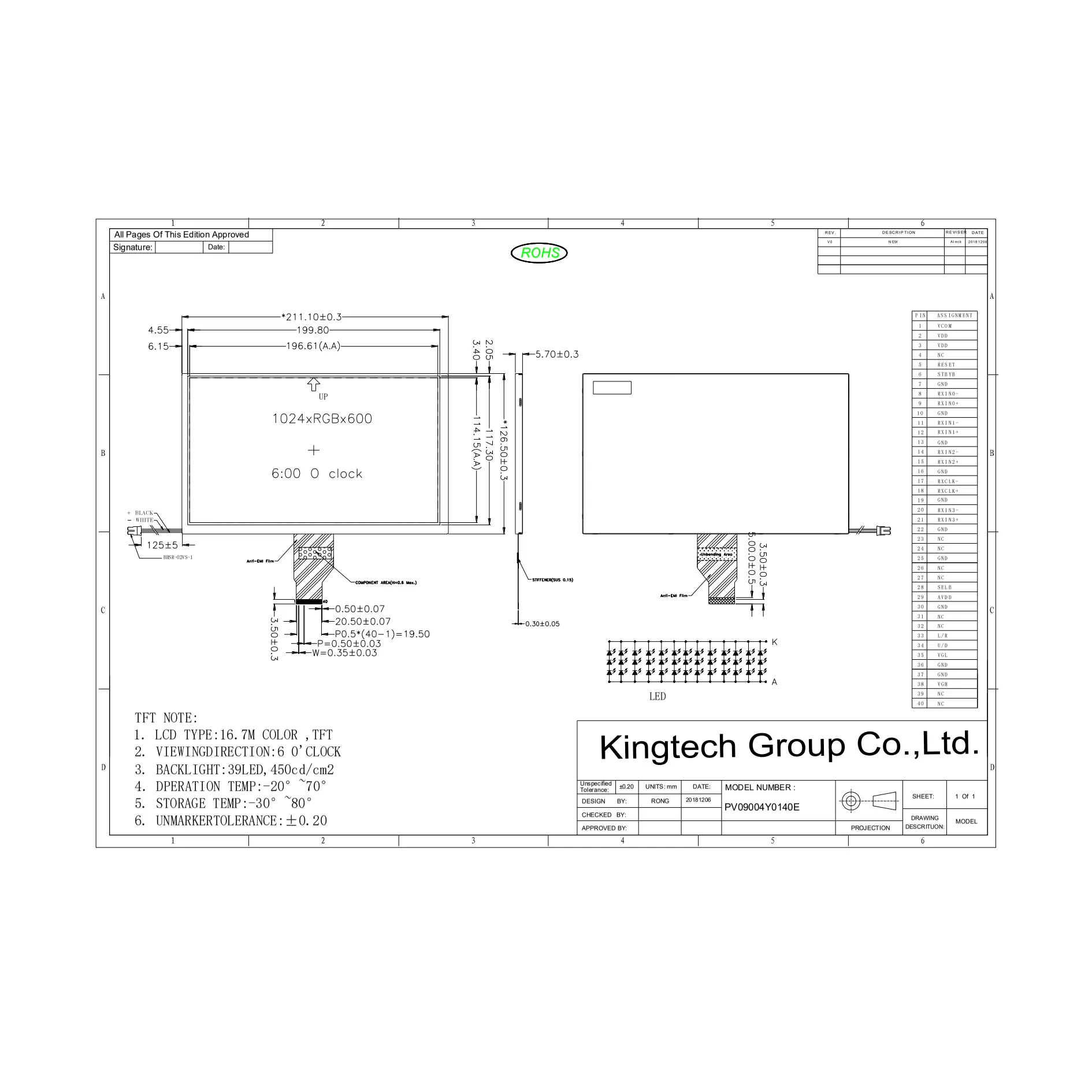

| Item | 9 inch TN 1024*600 TFT LCD display |
| Model No. | PV09004Y0140E |
| Resolution | 1024*600 |
| Outline Dimension (mm) | 211.1*126.50*5.7 |
| Active Area (mm) | 196.61*114.15 |
| Viewing Angle | 6 O'clock |
| Brightness | 450nits |
| Interface | LVDS |
| Backlight | 3*13LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial， |
The 9 inch 1024*600 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
