Kingtech is a high-standard LCD module supplier and manufacturer, and we have been in this field Since 2003. We provide 1.22 ~10.1 inch LCD module & customize service, with high quality and reasonable price. We have our own factory and big R&D team. We have over 95% of products that were customized by our big R&D team. In order to provide the one-stop solution to our customers, We have a strong team for the sea sales department to provide professional and timely replies to all technical questions. The following section will introduce our 3.5-inch monitors, mainly available in 320×240 resolution, 320×480 resolution, and 480×640 resolution.

For the 3.5 inch display with 320×240 resolution, we have PV03501H0154C in this model. It with 54 pins, an RGB interface, HX8238D IC, normal brightness 300 nits, all view angles ( IPS ). But this model without existing capacitive touch panel and resistive touch panel, if customer needs, we also can custom it for them. And this is a Transmissive display.

For the 3.5-inch display with 320×480 resolution, we have PV035HV-CINA5007_V00 in this model. It with 50 pins , 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB interface , ILI9488 IC , normal brightness 350 nits brightness , all view angle ( IPS ) . This model with existing capacitive touch panel and a resistive touch panel.

For the 3.5 inches with 320×480 resolution, we also have another module, Part NO. is PV035HV-0012, with high brightness. From 1000 nits ~ 2000 nits brightness. It is a sunlight-readable 3.5 inch TFT LCD display. It with 50 pins, MCU interface, IPS viewing angle, ILI9488 driver IC. But this model without existing capacitive touch panel and resistive touch panel, if customer needs, we also can custom it for them. And this is a Transmissive display.

For a 3.5 inch display with 480×640 resolution, we have a PV03502LZR40D transflective LCD display. It is also a sunlight readable LCD display. It with 40 pins,3-wire SPI + RGB interface, HX8363A driver IC. Full view angle ( IPS ) . But this model without existing capacitive touch panel and resistive touch panel, if customer needs, we also can custom it for them.

Application – 3.5 inch display

For these 3.5-inch Lcd display often application for car black box, handheld device, e-Bike, smart home and etc…

We can custom the touch panel ( Capacitive touch or resistive touch panel ) with different functions or shapes,  FPC ( shape and interface ), LCD display cover lens.

We also can customize the LCD display to match their project. For example, if customers use this 3.5-inch LCD display outdoor, we can customize the backlight‘s brightness to increase the brightness. Such as an e-Bike, the brightness must be more than 800nits.

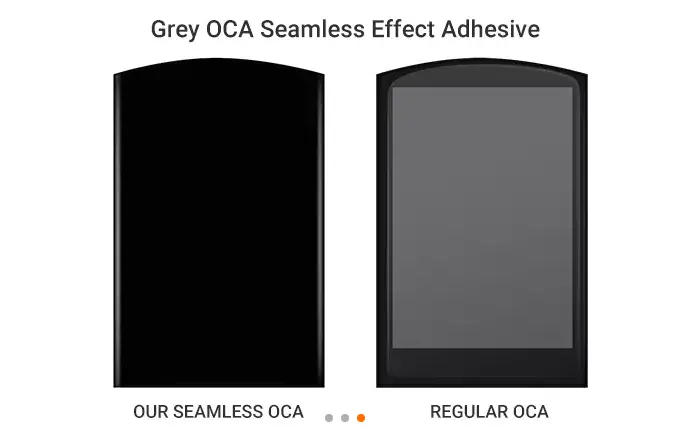

For a 3.5 inch display in a smart home application, we can customize the cover lens for customers. We have grey OCA to make the cover lens with a more beautiful appearance as below picture.

3.5 inch display

For the 3.5 inch display in-car black box, it requests a lower cost. And Customers often request a resistive touch panel for the device. If we don’t have an existing resistive touch panel, we also can help customers to custom it as their project‘s request.

For the 3.5 inch display in the e-bike application. This application mainly requests high brightness, such as 800nits,1000nits, 1500nits brightness or higher.

For this application, we will recommend our sunlight readable LCD display to our customers. Such as 3.5-inch 480×640 resolution, IPS, transflective LCD display, or our high brightness 3.5 inch LCD display with 1000nits ~ 2000nits brightness.

3.5 inch display3.5 inch display

If you have another request for a 3.5-inch LCD display, but you can not find it in this article, you can contact us. These 3.5-inch LCD displays are just our standard model in our company. We also have other parameters 3.5 inch TFT LCD display. Please kindly update your requirements to us, we can recommend the most suitable model for your project.

Or if you want to learn more about other size LCD displays, please kindly contact us at any time.

If you want to learn more or want to get a datasheet, get in touch!
