Wide Temperature Display

Kingtech produce difference sizes of wide temperature display.

The LCD supports normal temperature, wide temperature, and ultra wide temperature. The normal temperature LCD supports 0 ° C to 50 ° C, the wide temperature LCD supports -20 ° C to +70 ° C, and the ultra wide temperature LCD supports -40 ° C to +90 ° C.  Usually low temperature performance is good display, its high temperature performance will be poor.  The wider the operating temperature range, the higher the price accordingly.  Users can choose suitable display products according to the actual use conditions. Wide-temperature LCD refers to the LCD that can work in a wide range of temperatures.  Wide-temperature LIQUID crystal displays, also known as active matrix liquid crystal displays, are similar to passive matrices, with transparent electrodes made of indium tin oxide arranged vertically and horizontally on the upper and lower surfaces .Wide temperature display and display sharp contrast is very good, formed a very smooth change, and some main value, let the bright image in the presence of using it in the current good situation, you can also play in a wide range of temperature to the relevant features, and on the basis of good transformation can also be more access to the entire product.  Wide temperature LIQUID crystal display has the characteristics of anti-vibration, anti-electromagnetic interference, stable picture quality and wide temperature range.

Wide temperature display can be widely used in military, telecommunications, electric power, metallurgy, machinery, NUMERICAL control, petroleum, chemical, medical, transportation, instrumentation, aerospace and all kinds of field control and monitoring.

We are promoting below types of wide temperature display:

0.91inch 128×32 PMOLED,300nits brightness,SPI interface,IPS free viewing angle,-40~70 working temperature,-40~85 storage temperature.

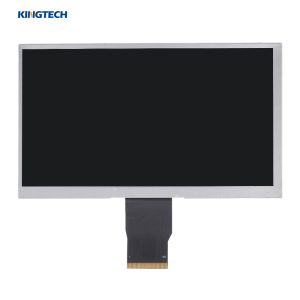

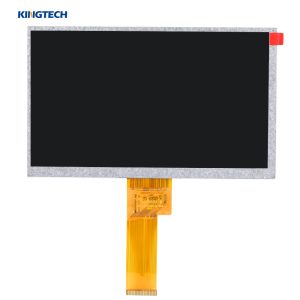

7inch 800X480/color TFT/800nits brightness/RGB/TTL interface/IPS free viewing angle/-30~85 working temperature/-30~85 storage temperature.

10.1inch 1280X800,color TFT,1000nits brightness,LVDS interface,IPS free viewing angle,-30~80 working temperature,-30~85 storage temperature.

10.4inch 1024X768,color TFT,1000nits brightness,LVDS interface,IPS free viewing angle,-30~80 working temperature,-30~80 storage temperature.

12.1inch 1024X768/color TFT/600nits brightness/LVDS interface/IPS free viewing angle/-30~85 working temperature/-30~85 storage temperature.

12.3inch 1920X720/color TFT/750nits brightness/LVDS interface/IPS free viewing angle/-30~85 working temperature/-40~90 storage temperature.

15inch 1024X768/color TFT/500nits brightness/LVDS interface/IPS free viewing angle/-30~80 working temperature/-40~80 storage temperature.
