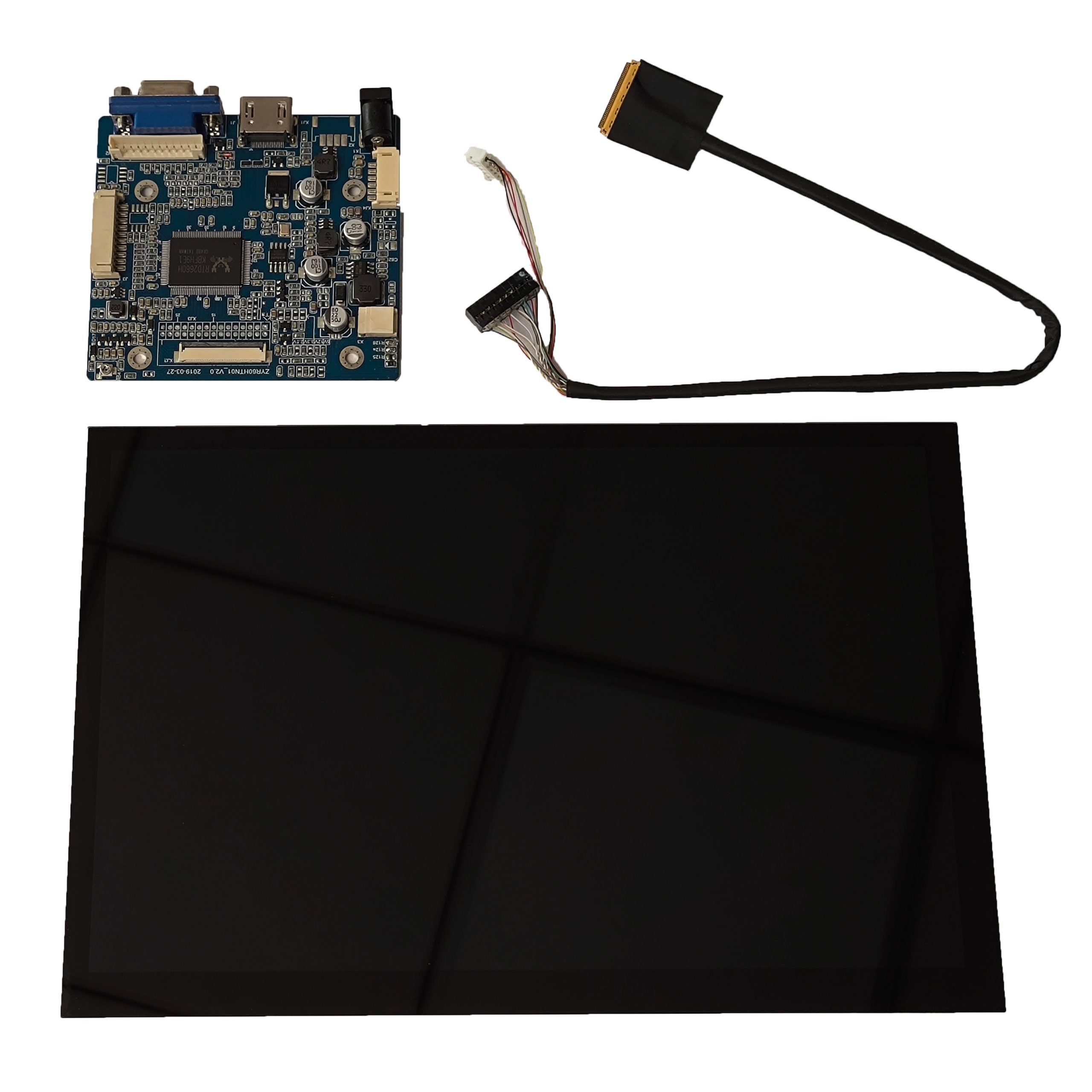

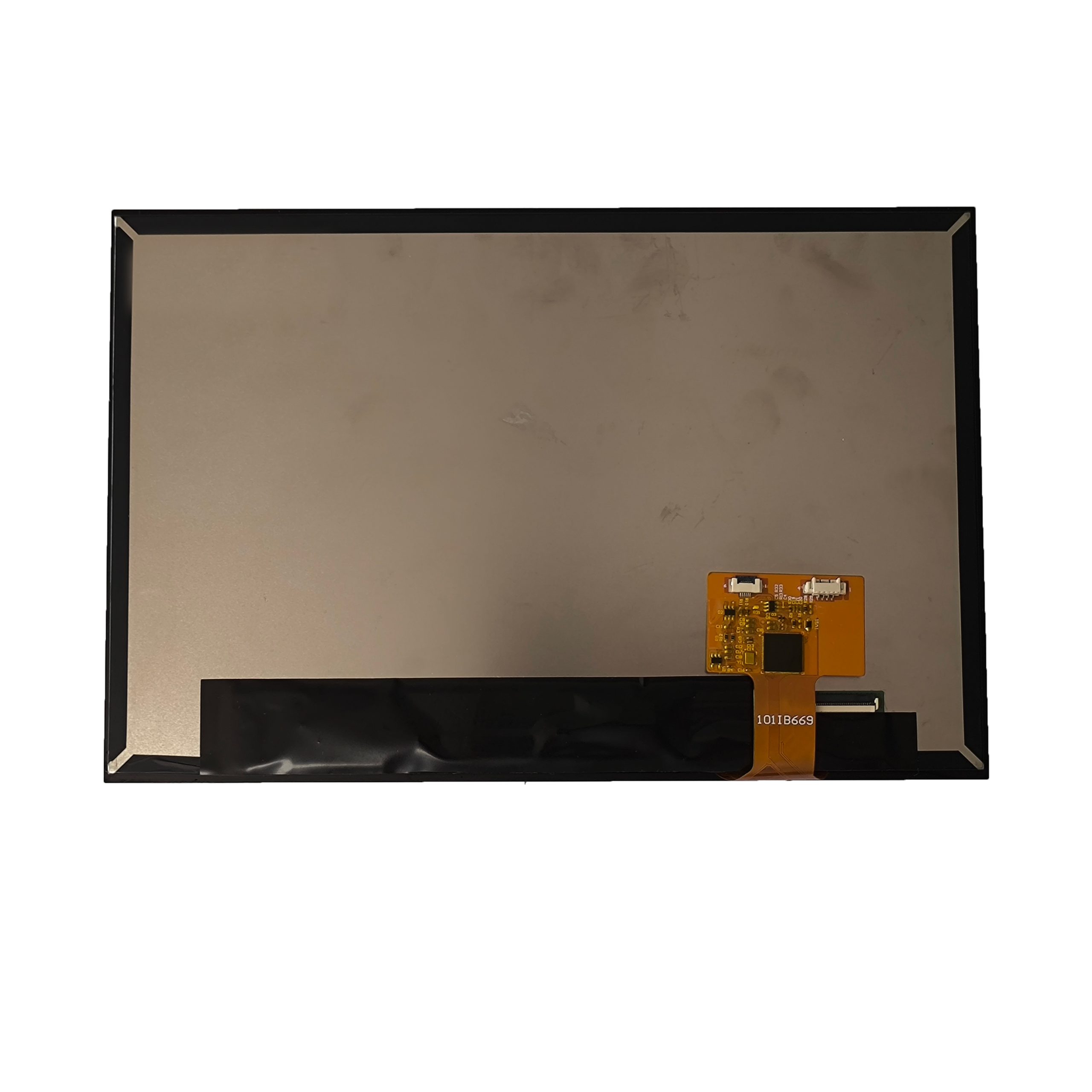

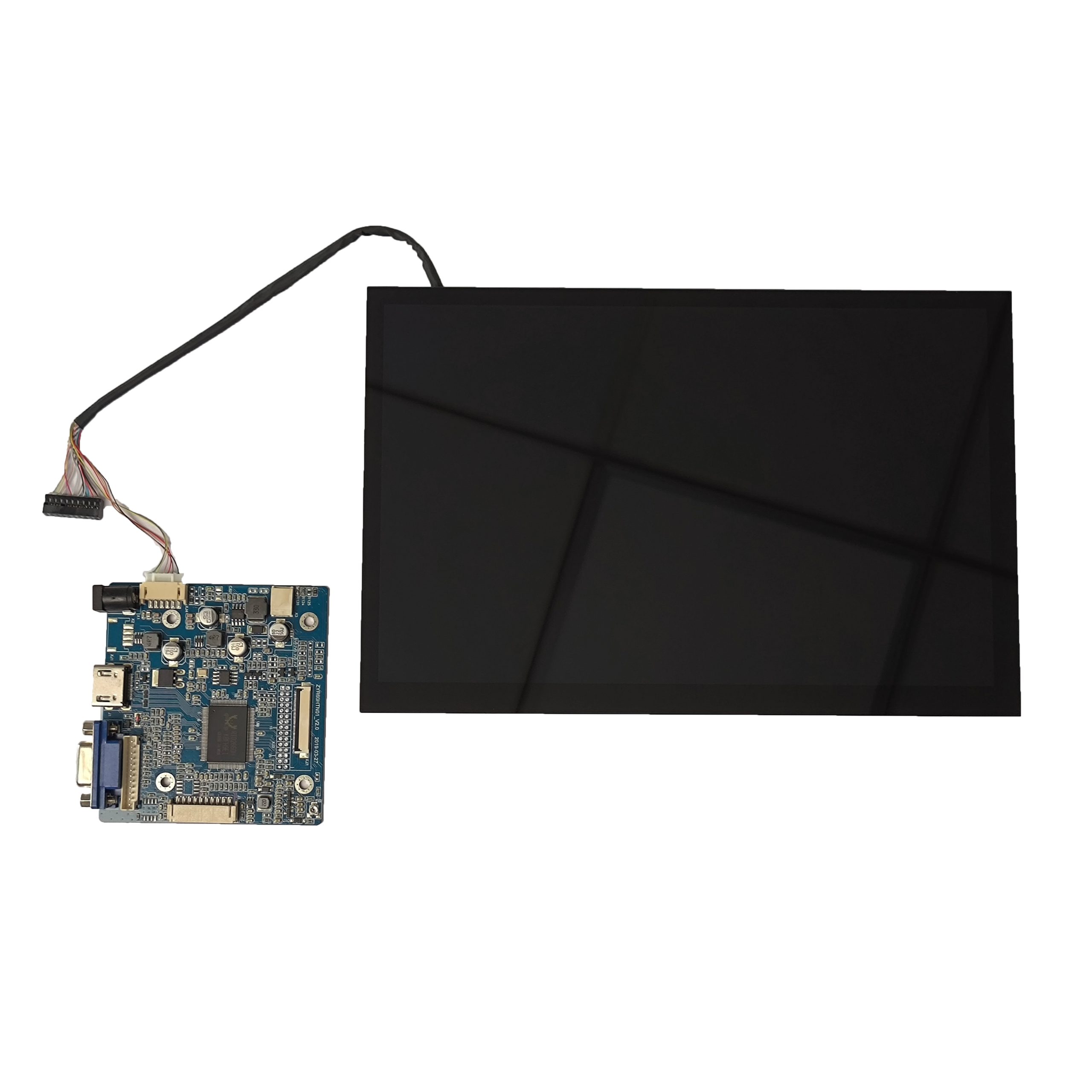

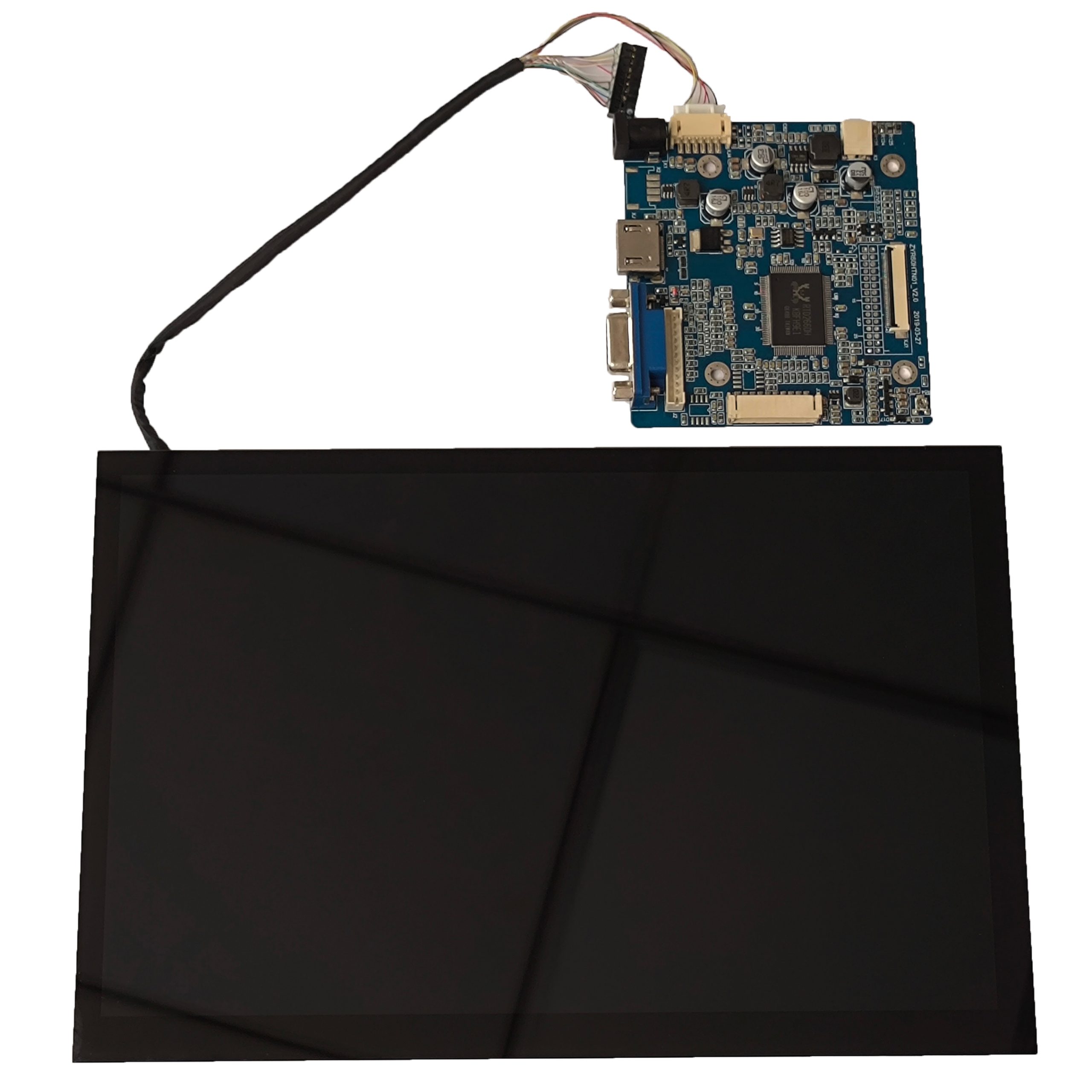

10.1 inch 1280×800 LVDS TFT LCD display with controller board & cable

Product Specifications:

  • Model No.: PV101037Y0140B

  • Display Type: IPS TFT LCD

  • Resolution: 1280×800 pixels

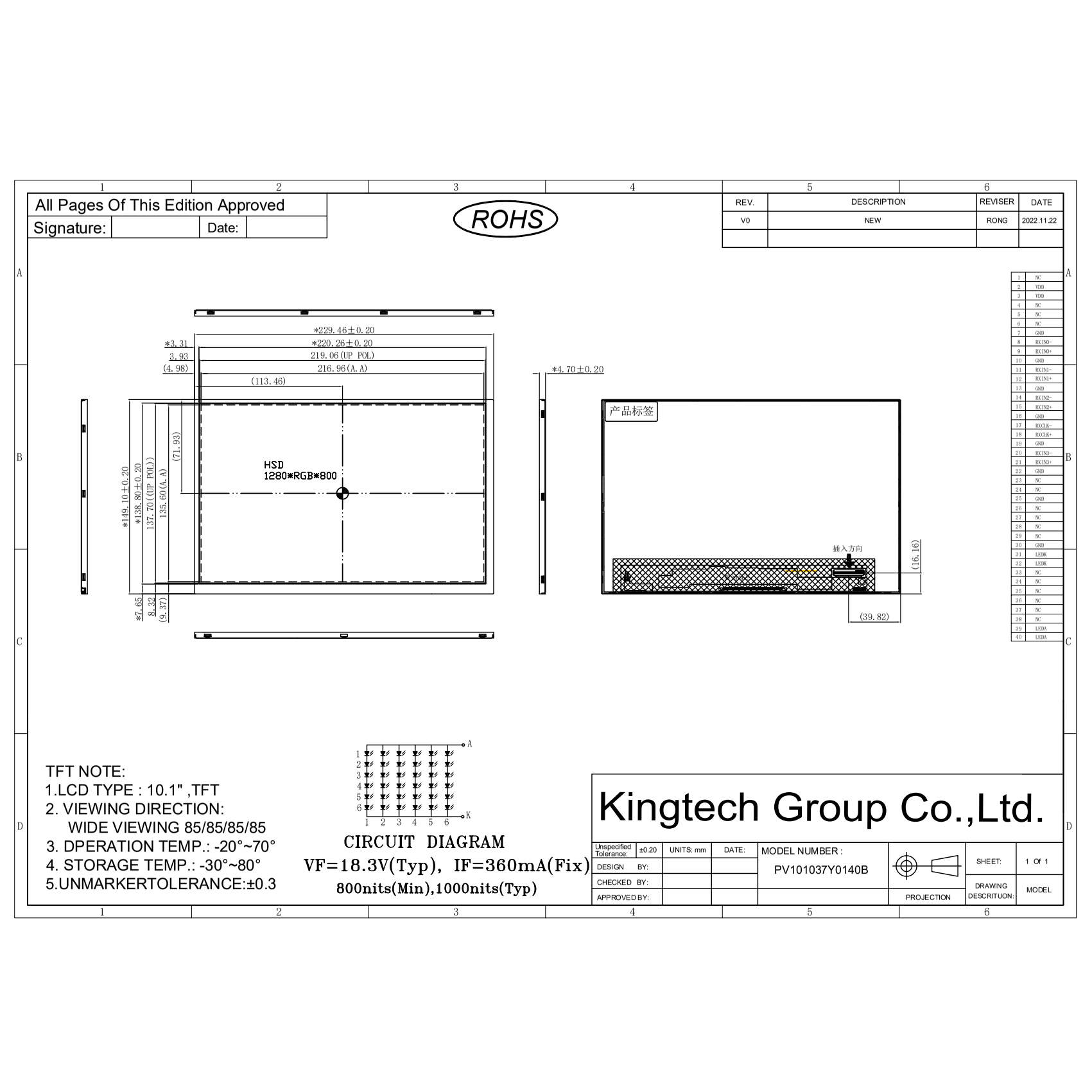

  • Outline Dimension: 229.46 x 149.1 x 4.70 mm

  • Active Area: 216.96 x 135.6 mm

  • Viewing Angle: All directions (IPS technology)

  • Brightness: 1000 nits

  • Interface: LVDS

  • Backlight: 6*6 LED

  • Driving IC: Integrated solution

  • PIN Number: 40 pins

  • Operating Temperature: -20℃ to 70℃

  • Storage Temperature: -30℃ to 80℃

  • Touch Screen: Optional resistive or capacitive touch customization

Key Features:

  • Ultra-High Brightness: 1000 nits ensures excellent visibility even under direct sunlight.

  • Full Viewing Angle: IPS panel offers vibrant and consistent image quality from any direction.

  • Industrial-Grade Design: Stable performance in wide temperature environments.

  • Flexible Interface: LVDS interface simplifies integration with advanced systems.

  • Customization Ready: Support for resistive and capacitive touch screens based on project needs.

  • Robust Construction: Engineered for long-term reliability in demanding applications.

For product pricing,customization,or other inquiries:

Share to:

Product Overview:
The 10.1 inch IPS TFT LCD Display (Model PV101037Y0140B) features a 1280×800 high resolution, ultra-high 1000 nits brightness, and wide viewing angles, making it ideal for E-Bike displays, medical equipment, industrial control panels, and handheld devices. With strong sunlight readability and reliable performance, it is perfectly suited for demanding outdoor and professional applications.

Application Scenarios:

  • E-Bike Displays: Sunlight-readable dashboards and smart displays.

  • Medical Devices: Portable diagnostic and monitoring equipment.

  • Industrial Instruments: Control panels, factory automation, rugged handheld devices.

  • Handheld Devices: Outdoor communication tools, measurement instruments, and field devices.

Advantages:

  • Superior Visibility: High brightness design ideal for both indoor and outdoor use.

  • Stable Supply and Support: Reliable delivery schedule and comprehensive technical assistance.

  • Easy System Integration: Streamlined LVDS connectivity speeds up your product development.

  • Durability Guaranteed: Withstands harsh environmental conditions with industrial-grade build quality.

Procurement Information:

  • MOQ: Negotiable based on project requirements

  • Lead Time: Fast production and flexible delivery solutions

  • Support: Professional technical guidance and full customization services for B2B customers

Power Your Outdoor and Industrial Applications with Kingtech’s 10.1 Inch High Brightness IPS LCD Display!
