ST7789V MCU 10 pin tft lcd screen

Item  2.4 inch 240×320 QVGA LCD display
Model No PV02412HZ10M
Resolution 240×320
Outline Dimension  42.72*60.4*2.16
Active Area(mm) 36.71*48.96
Brightness 280NITS
Viewing Angle 12 O’clock
Interface MCU
Driving IC  ST7789V
Operating Temperature  -20 to +70℃
Storage Temperature  -30 to +80℃
Touch Can custom capacitive/resistive

For product pricing,customization,or other inquiries:

Share to:

2.4 inch 240×320 QVGA MCU interface portrait LCD display

1. PV02412HZ10M mainly application for handheld device , Industrial ,medical equipment .
2. It with 240X320 resolution QVGA , MPU interface 12 O’clock/ TN  viewing angle, ST7789V driver IC, support 280 nits  brightness  .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

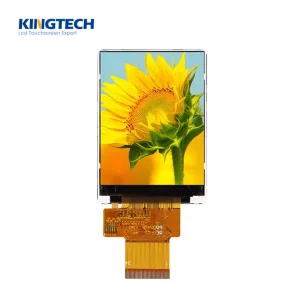

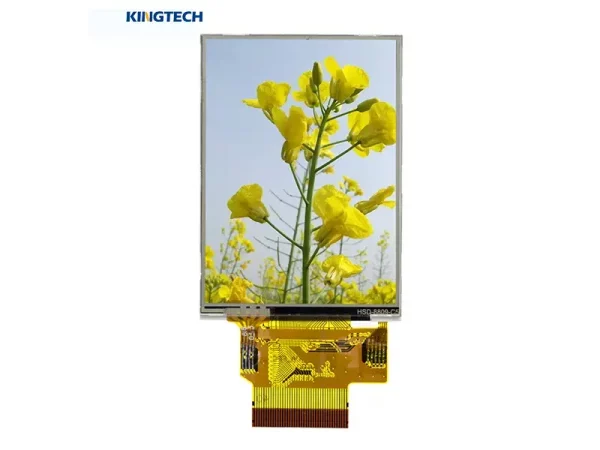

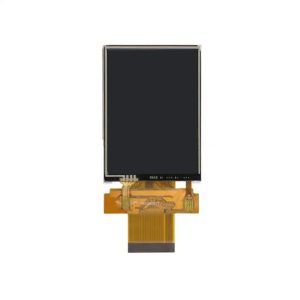

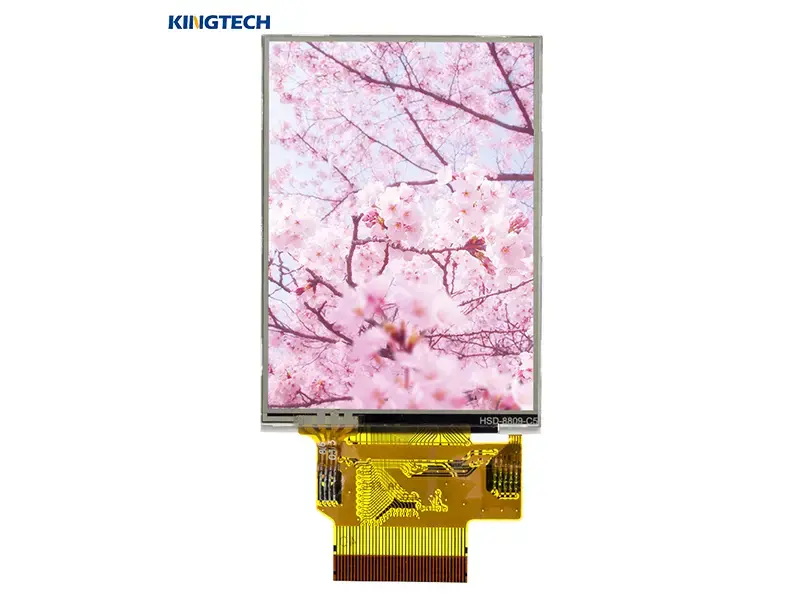

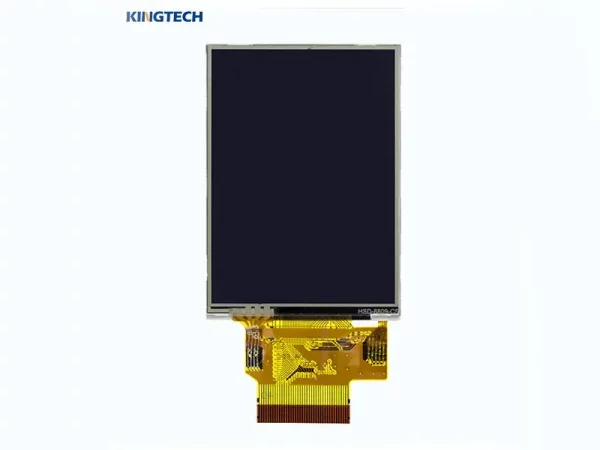

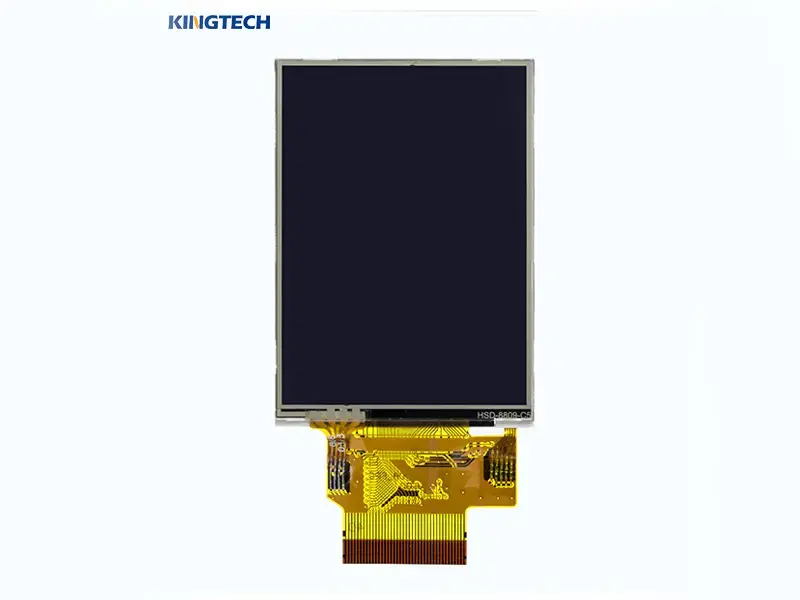

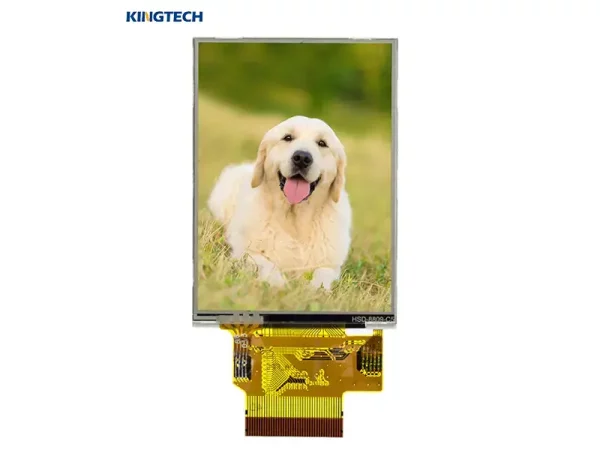

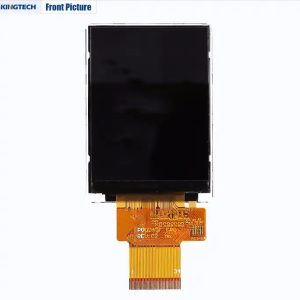

2.4 inch QVGA LCD display front view

2.4 inch tft lcd screen

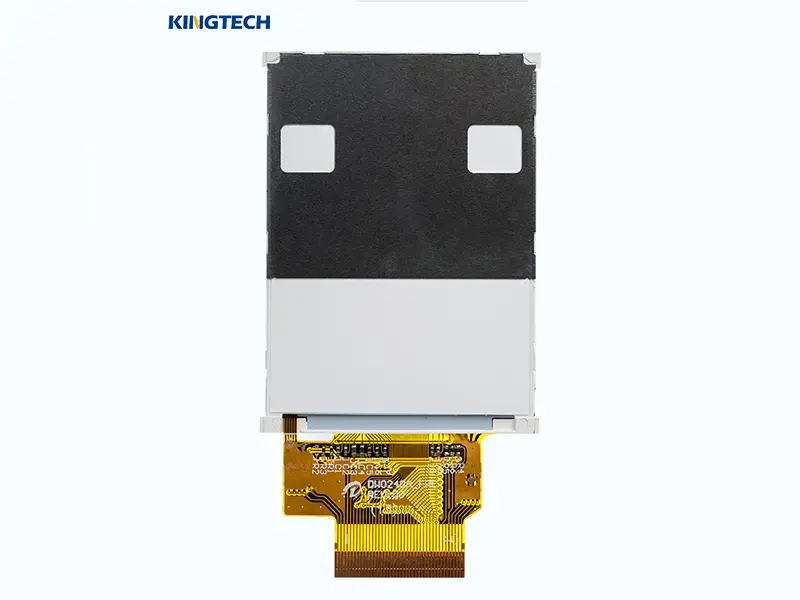

2.4 inch QVGA LCD display back view

2.4 inch tft lcd screen

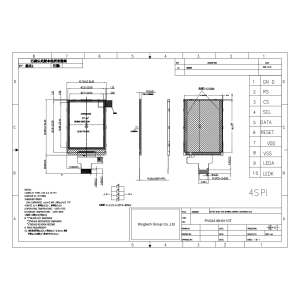

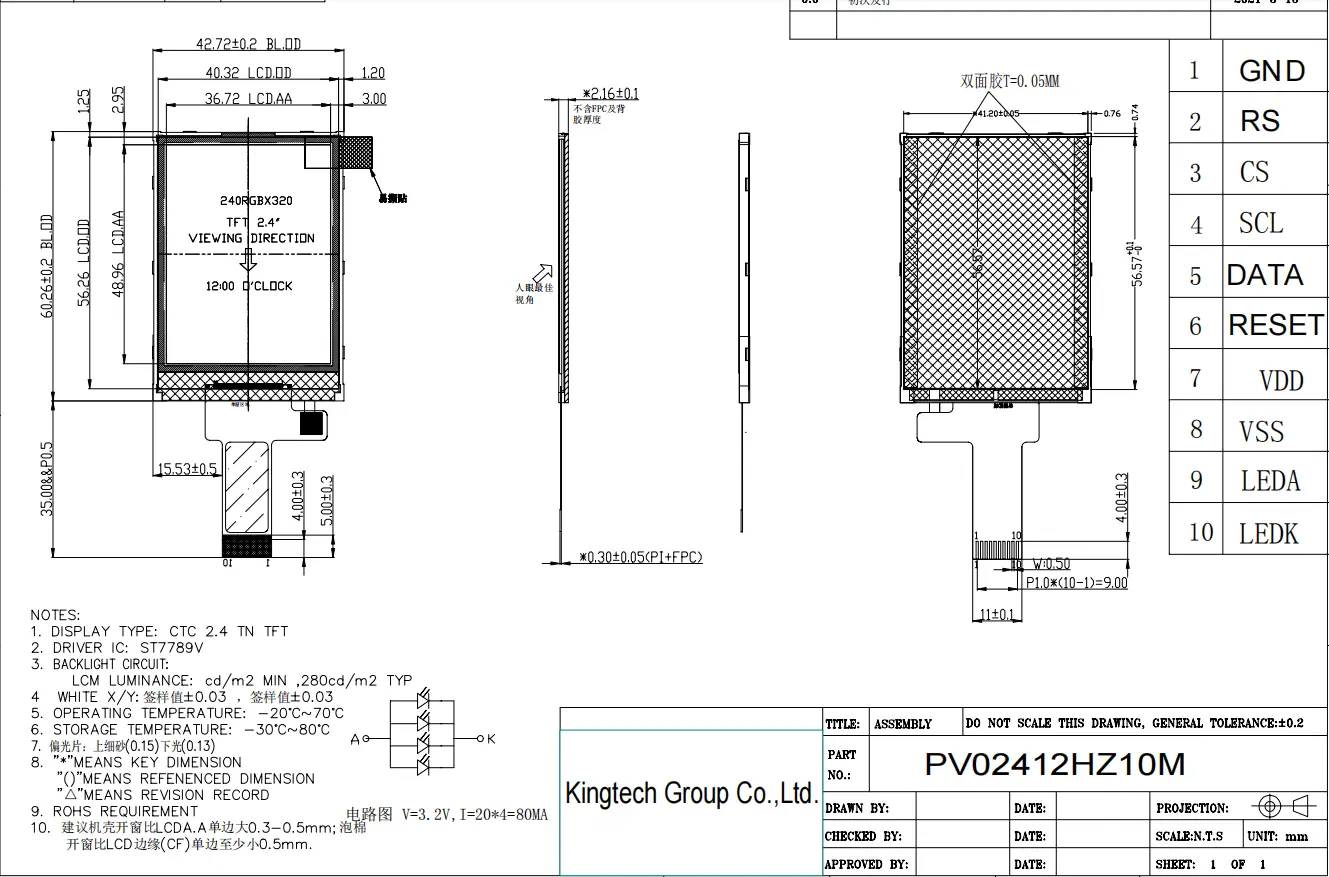

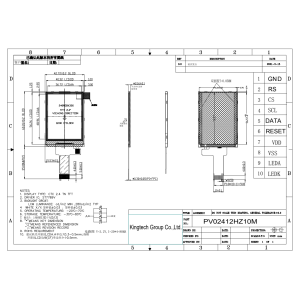

2.4 inch ST7789V LCD display Machine Drawing
