3.4 inch 800×800 ips MIPI interface round lcd display

Item3.4 inch 800×800 IPS round TFT
Model NoPV03400AR39A
Resolution800×800
Outline Dimension99.0*96.6*3.98
Active Area(mm)87.6*87.6
Brightness350nits
Viewing AngleAll
InterfaceMIPI 3 lane
Driving ICILI9881C
PIN39
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
TouchCapacitive touch
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

3.4 inch 800×800 high resolution IPS MIPI round LCD display
1. PV03400AR39A mainly application for smar home, handheld device
2. It is IPS/All/Free/Full viewing angle, with MIPI interface, 800×800 high resolution, ILI9881C Driver IC, existing capacitive touch panel anf HDMI board to support Raspberry PI.
3. It also can custom touch panel as customer ‘s requirement.
4. This model with high resolution , the excellent display effect , very suitable for the Advertising equipment application .

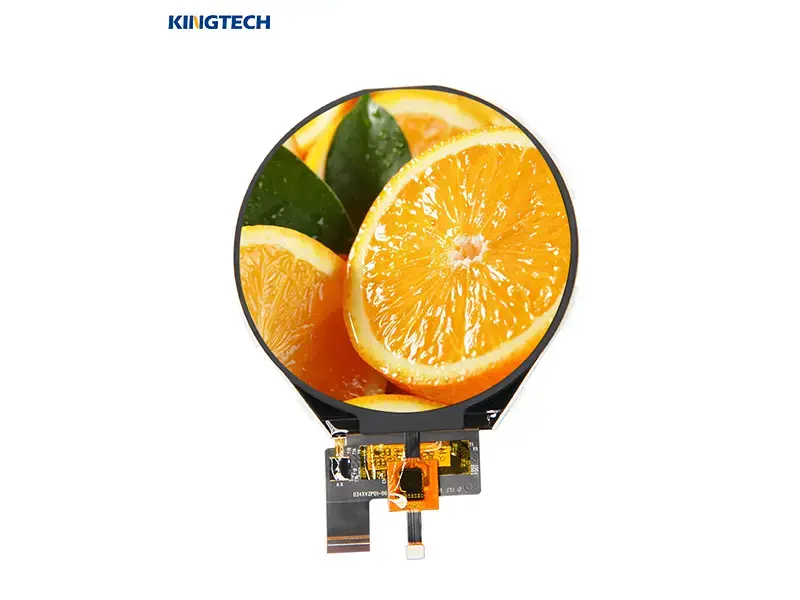

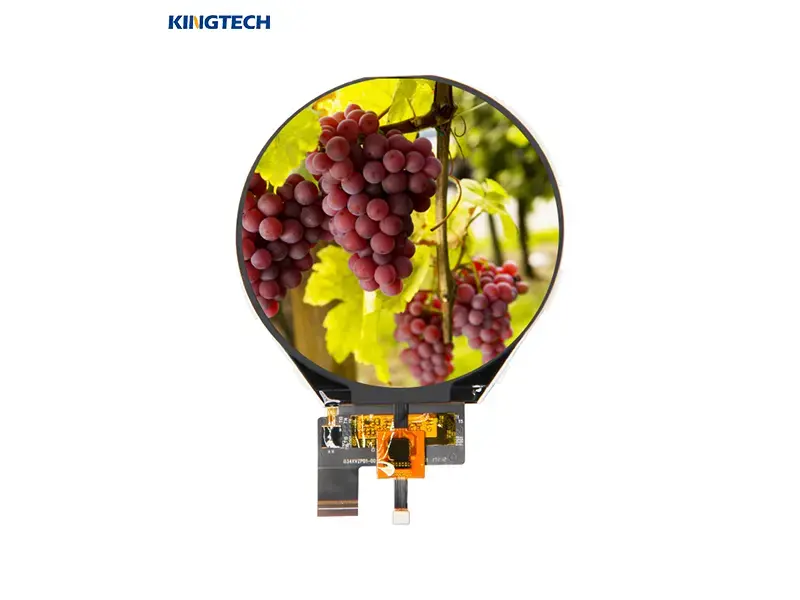

3.4 inch 800×800 MIPI round LCD display Machine front view

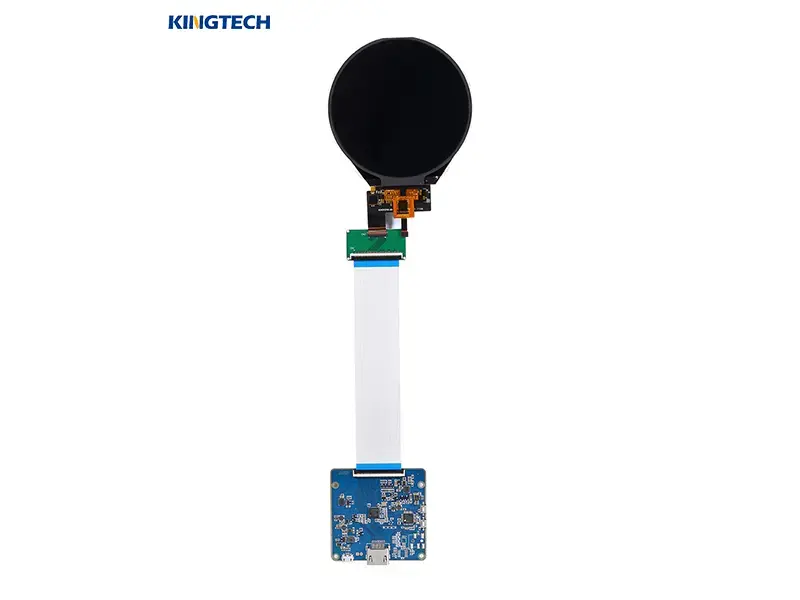

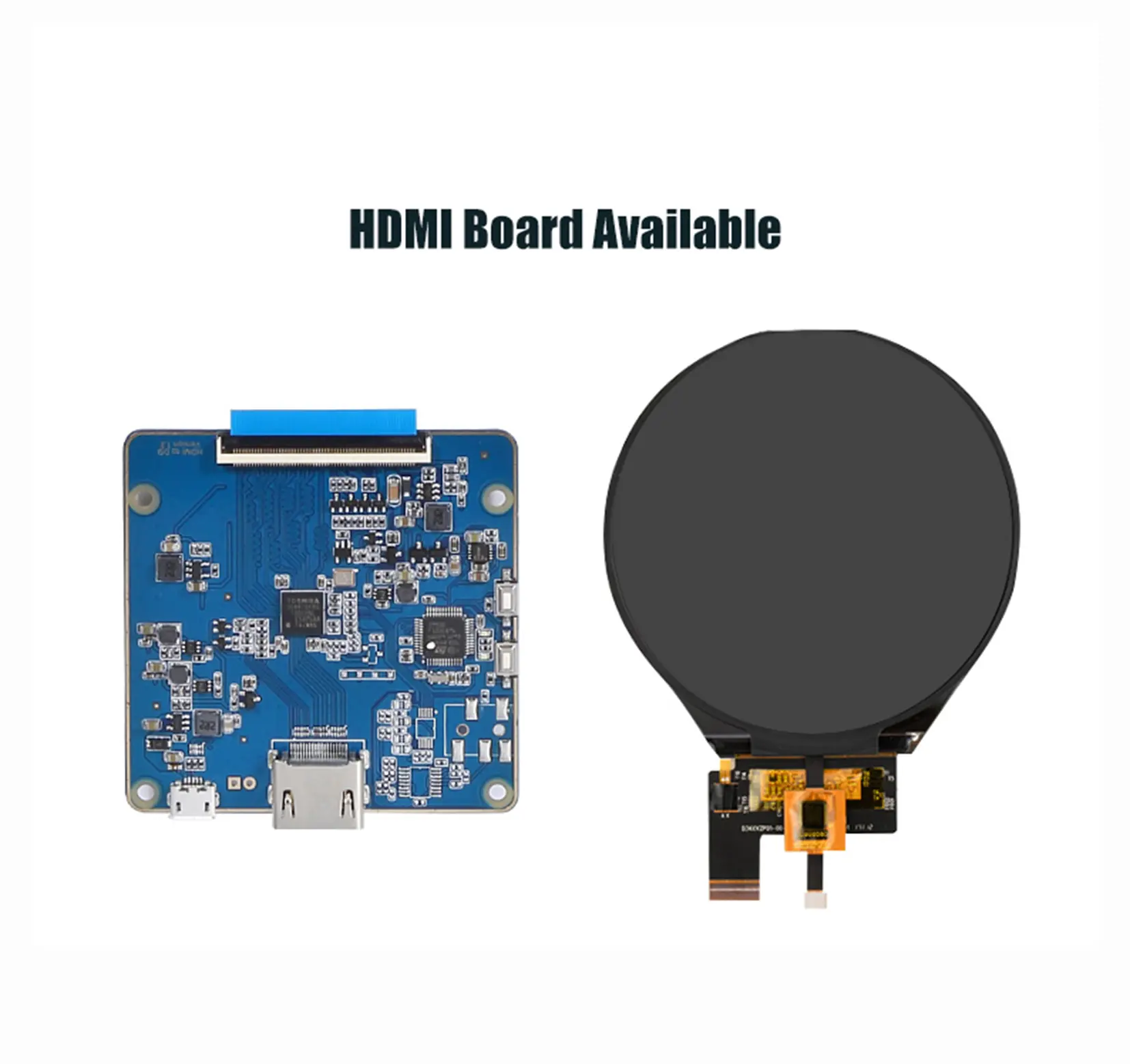

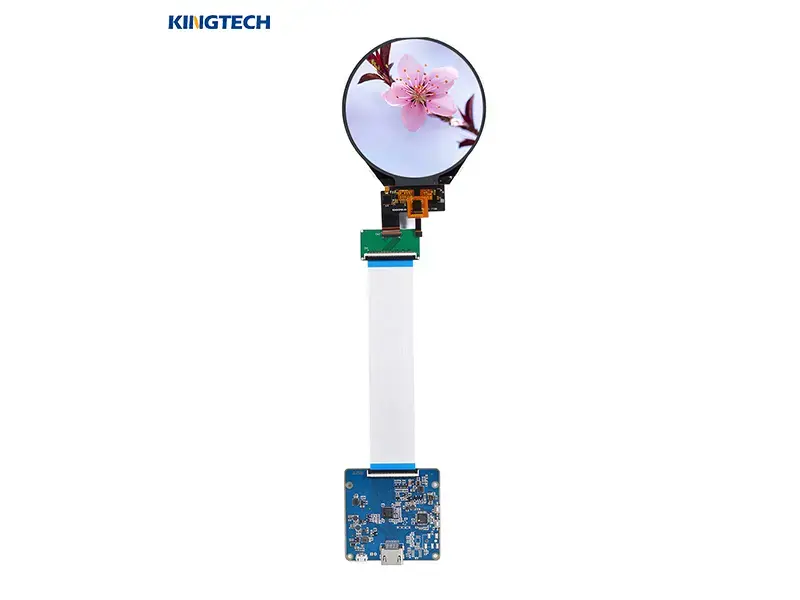

3.4 inch 800×800 MIPI round LCD display Machine with HDMI board view

3.4 inch 800x800 MIPI interface round lcd display

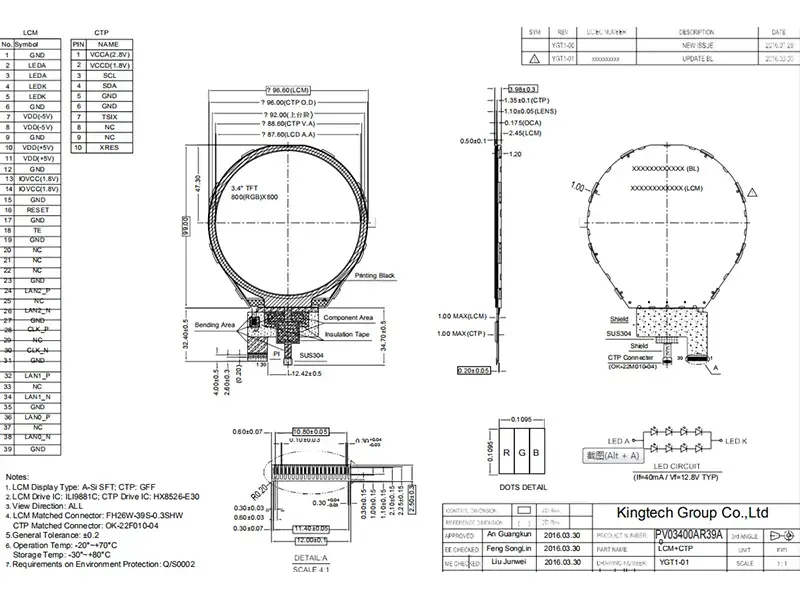

3.4 inch 800×800 MIPI round LCD display Machine Drawing

3.4 inch 800x800 MIPI interface round lcd display
