368×448 400 nit ips 1.78″” oled for smart watch

Item 1.78 inch 368×448 AMOLED display
Model No PV017800T45A
Resolution 368×448
Outline Dimension 30.6 ×37.99 x 0.305 MM
Active Area(mm) 28.704×34.944 mm
Interface MIPI /3-wire SPI/4-wire SPI/QAD-SPI
Viewing Angle ALL
Driving IC RM69090/TMA525C (TOUCH IC)
Display Mode AMOLED
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness 350nits
Touch screen Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

1.78 inch 368×448 IPS QSPI interface small AMOLED display
1.PV017800T45A mainly application for smart watch and wearable devices
2.It with IPS free viewing angel ,368*448 resolution , QSPI interface , existing capacitive touch panel .
3.And it can custom touch panel as customer ‘s requirement;
4.AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super     power saving of … power. It can be well used for both indoor and outdoor .

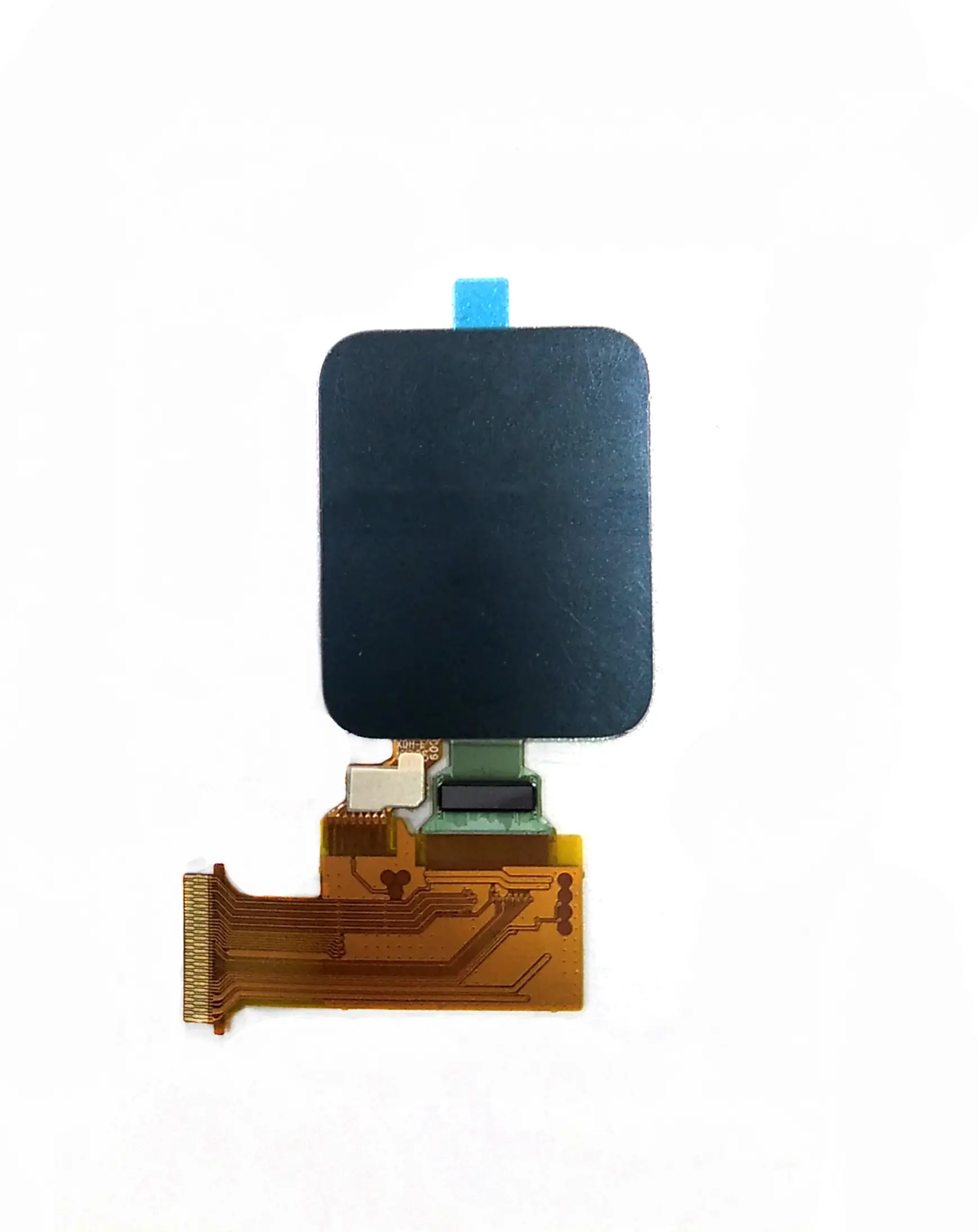

1.78 inch  368×448 AMOLED display Front View

1.78 inch display

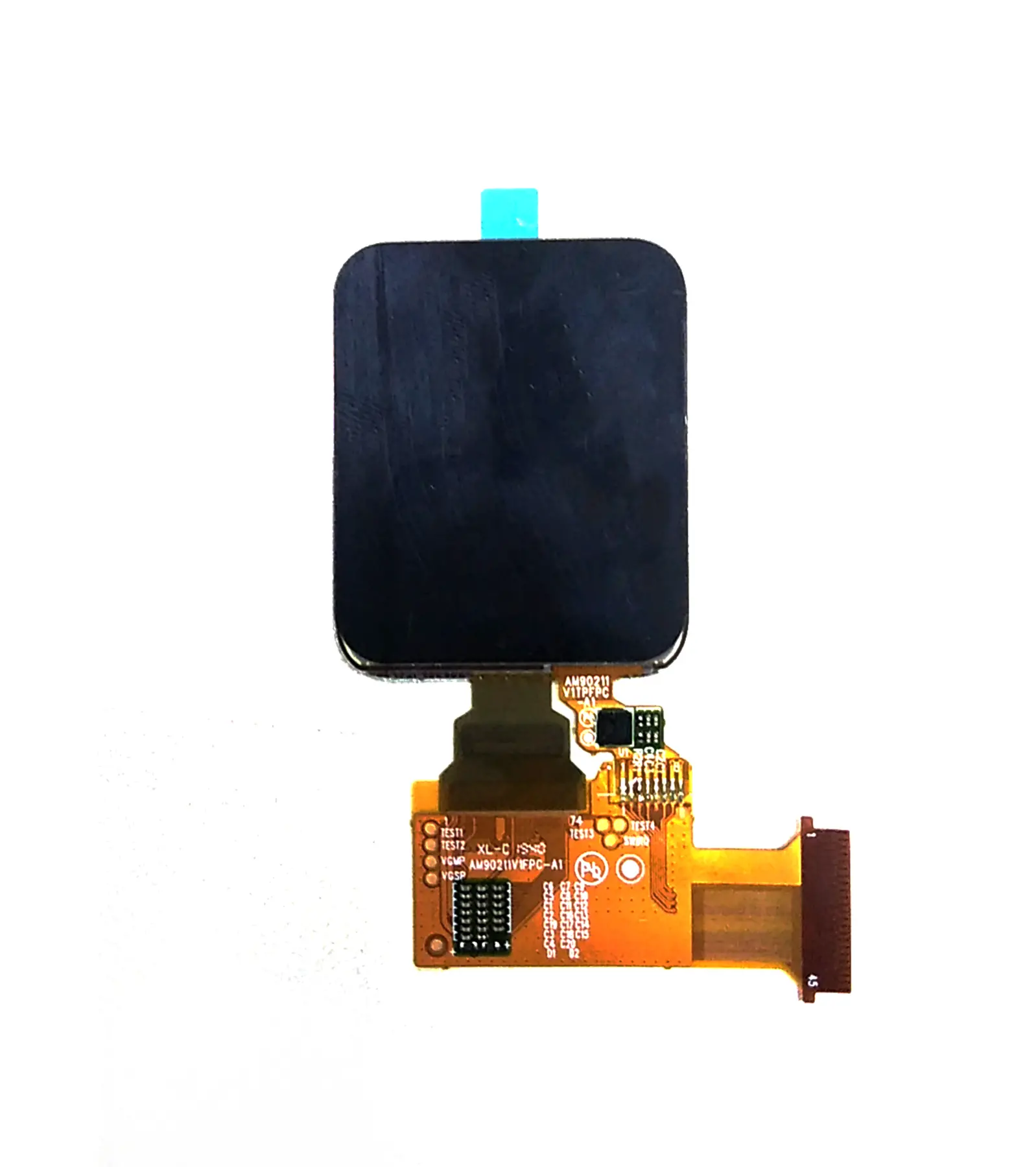

1.78 inch  368×448 AMOLED display Back View

1.78 inch display

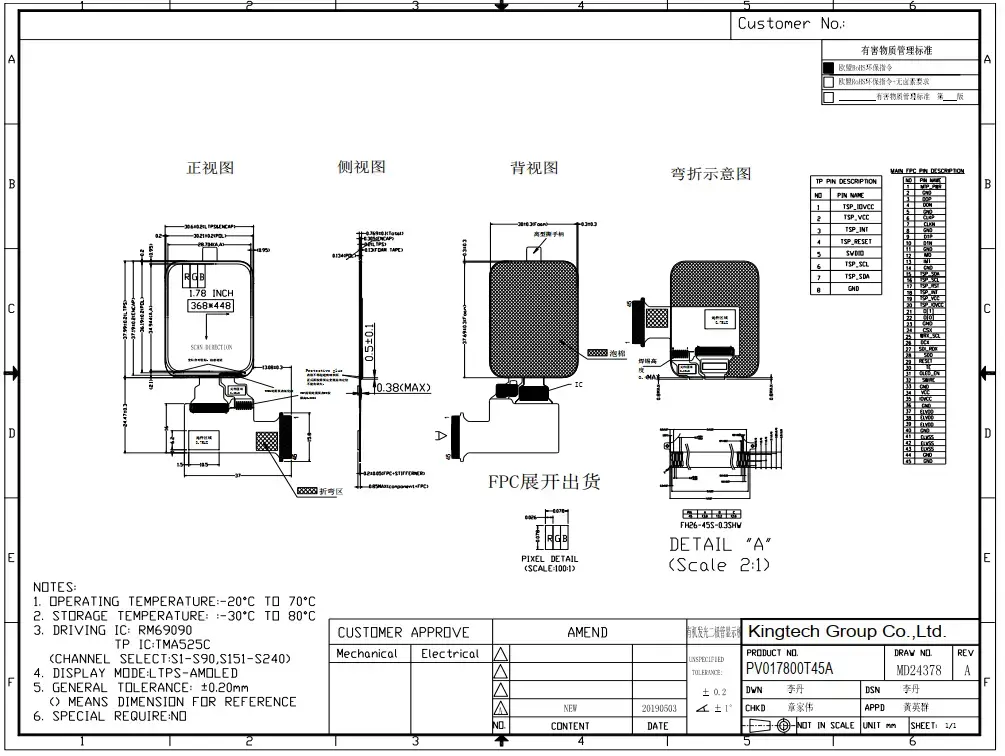

1.78 inch  368×448 AMOLED display Machine Drawing

1.78 inch 368×448 AMOLED display
