MCU/RGB interface Resistive touch 320×480 uart lcd display

Item3.5 inch 320*480 Resolution UART Serial
Model NoPVS035320480M002
Resolution320×480
Outline Dimension55.50(W)*84.96(H)*2.45(T)
Active Area(mm)48.96(W)*73.44(H)
InterfaceMCU interface /RGB interface
Viewing Angle12 O’ Clock
Pixel pitch (L*W)0.153*0.153
Operating Temperature-20℃ to +80℃
Storage Temperature-30℃ to +80℃
Brightness300nits
Touch screenResistive touch

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×480 HVGA  UART Serial HMI Display Module

1. PVS035320480M002 mainly application for instruments and equipment, handheld devices .
2. It with 12 O’ Clock TN viewing angle, 300nits brightness, ILI9488 or compatible Driver IC.
3. And it can custom touch panel as customer ‘s requirement .
4. This Serial Port HMI display model can used in smart home and office devices.

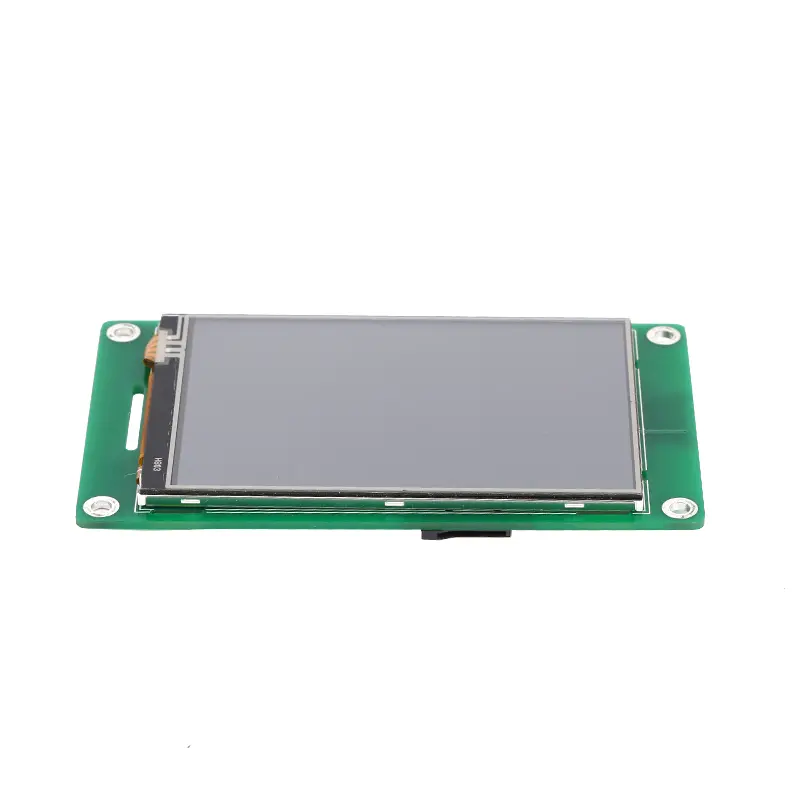

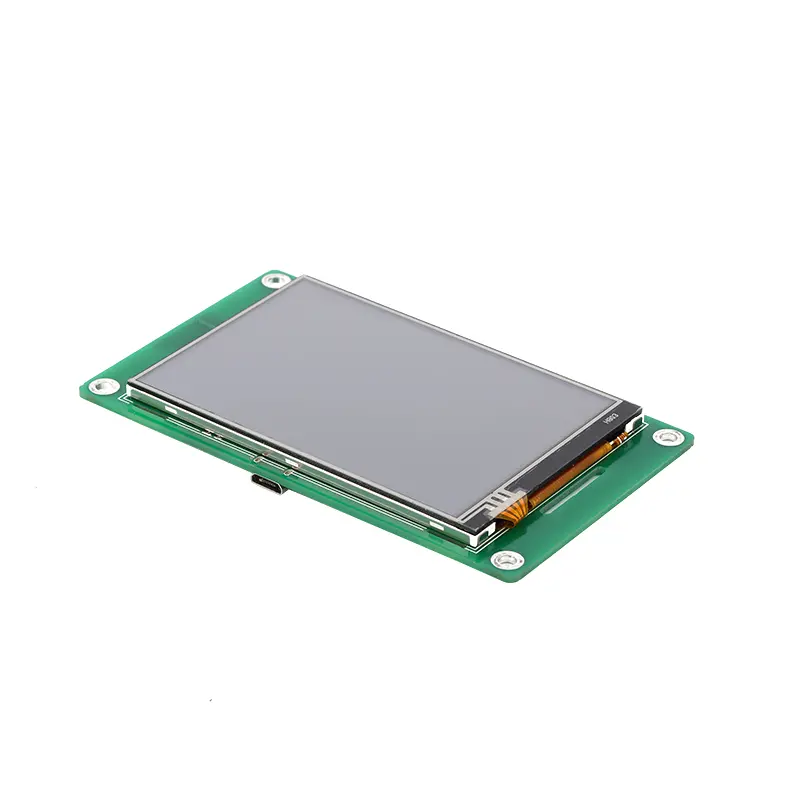

3.5 inch touch screen UART Serial HMI display fron view

uart lcd displayuart lcd displayuart lcd display

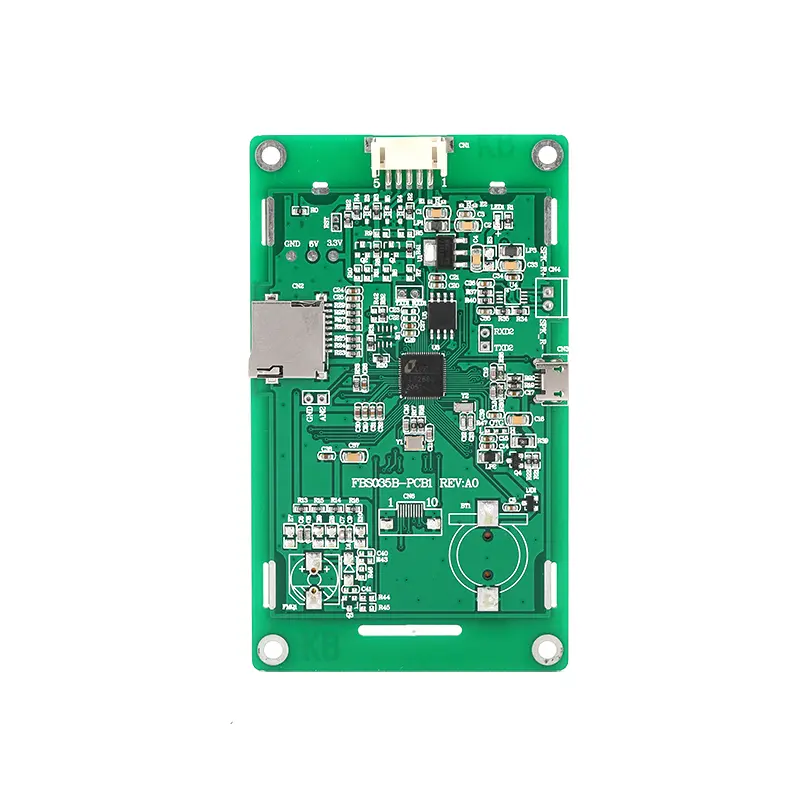

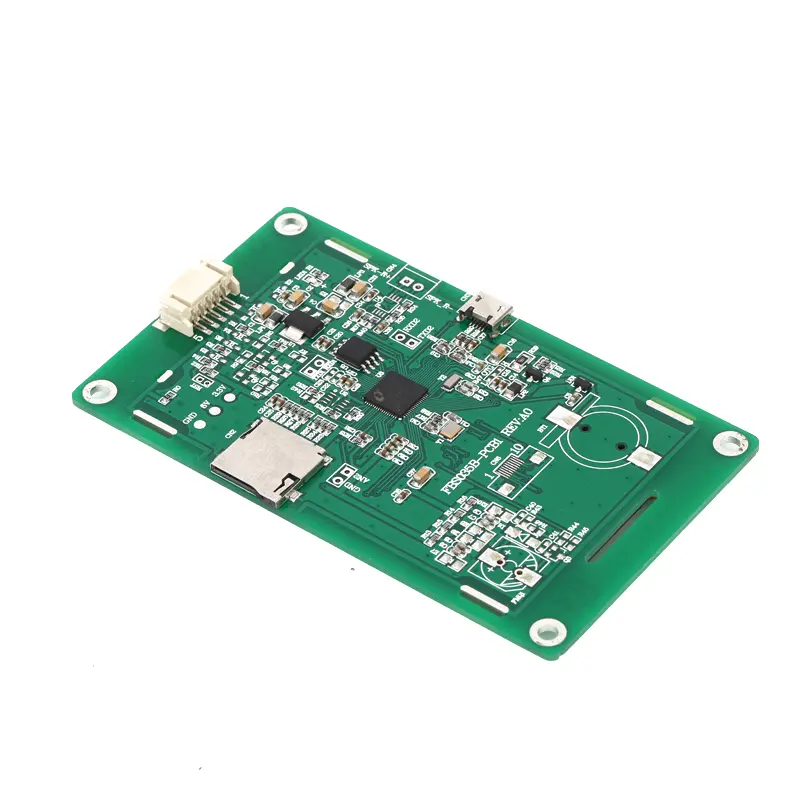

3.5 inch touch screen UART Serial HMI display back view

uart lcd displayuart lcd display

3.5 inch UART Serial HMI display Machine Drawing
