4.3 capacitive touch screen 4.3 inchlcd display

Item 4.3 inch TFT 480*272 display
Model No PV043012HZ40M
Resolution 480(RGB)×272
Outline Dimension 105.5*67.2*3.0
Active Area(mm) 95.04*53.86
Interface RGB 24 bits
Viewing Angle 6 O’CLOCK
Driving IC ST7282
Display Mode TFT/TRANSMISSIVE
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness 1000nits
Touch screen Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

4.3 inch 480×272 resolution RGB interface 1000nits brightness lcd display
1.PV043012HZ40M mainly application for  Industrial ,medical equipment .
2.It with 480×272 resolution , 1000nit brightness ,RGB interface ,4311+ST7282 driver IC , existing capacitive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

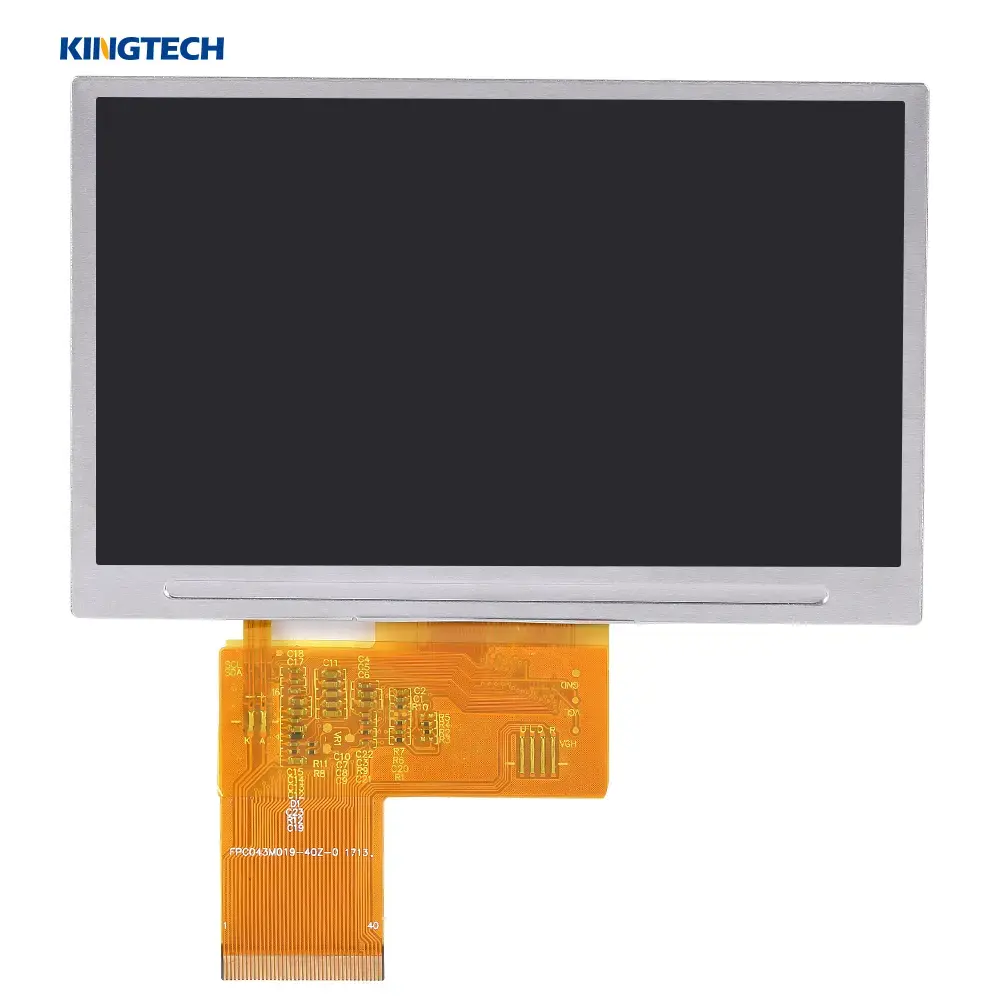

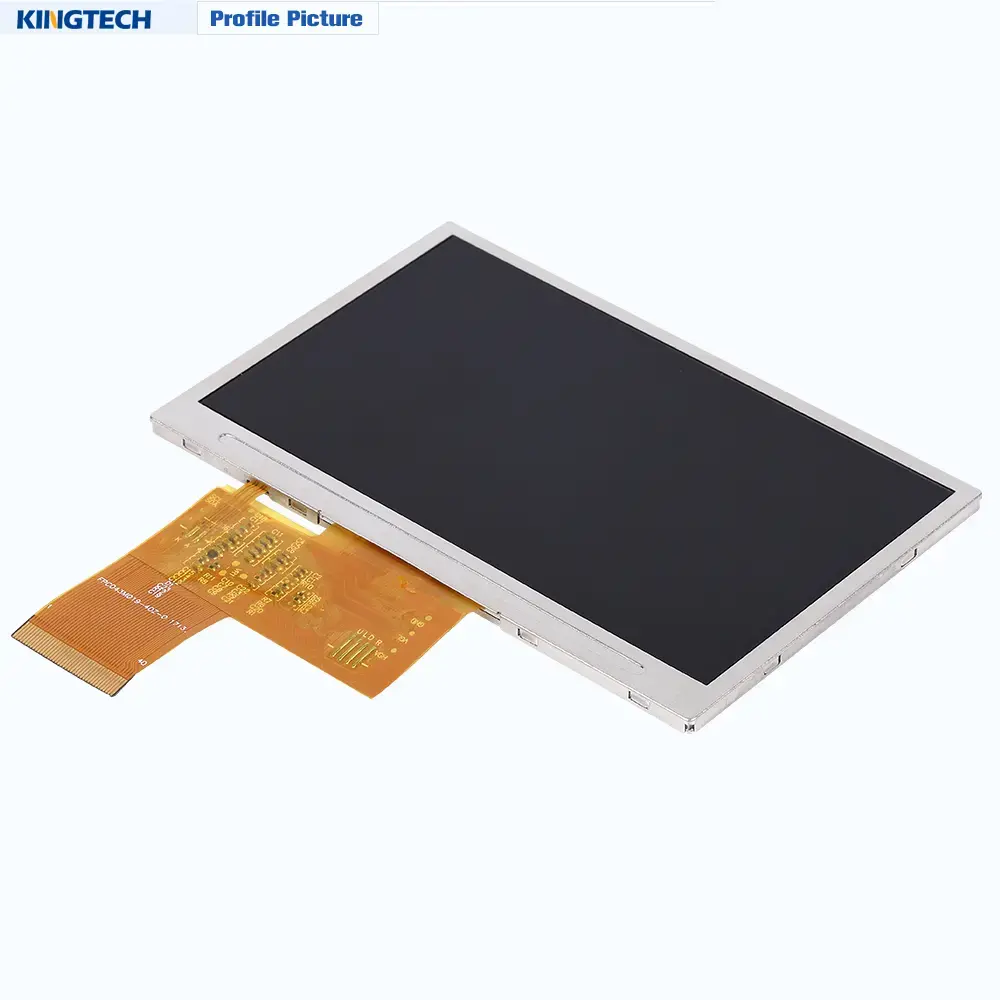

4.3 inch 480×272 lcd display Front View :



4.3 inchRGB 24 bits 480*272 display

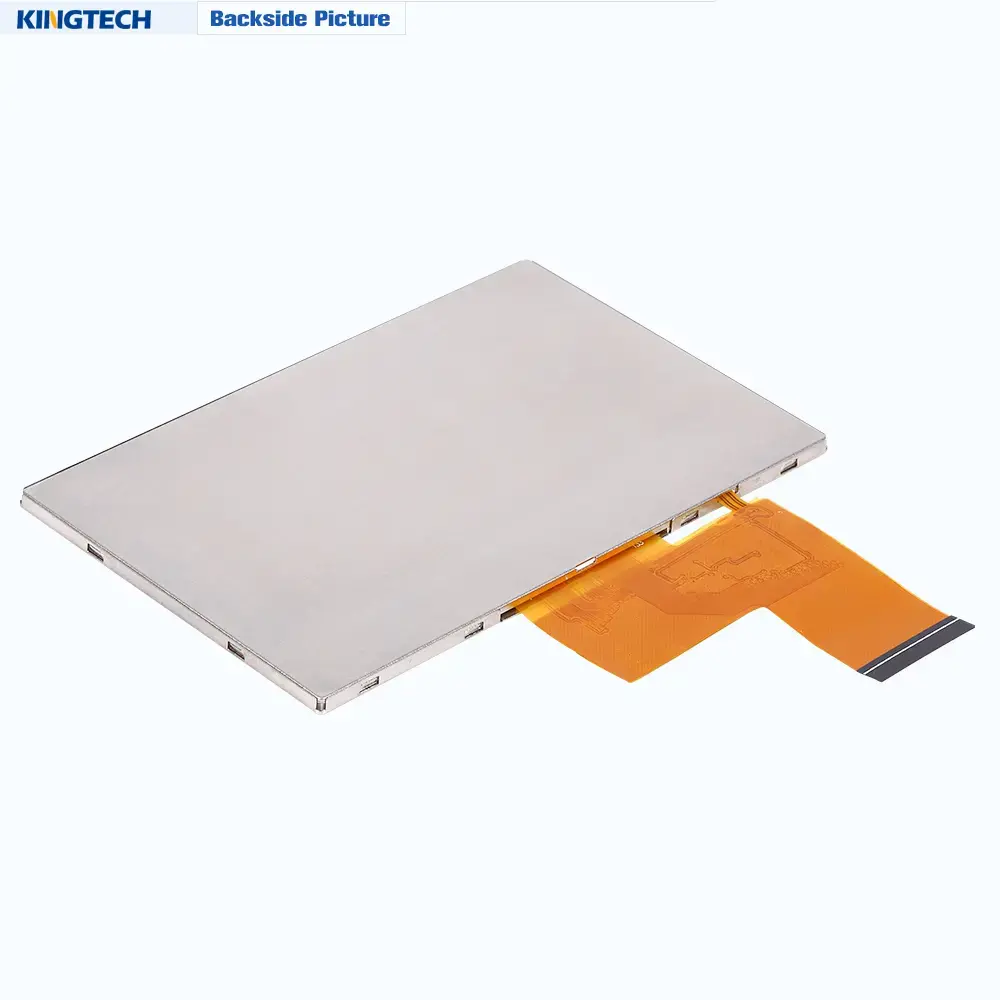

4.3 inch 480×272 lcd display Back View :

4.3 inchRGB 24 bits 480*272 display
