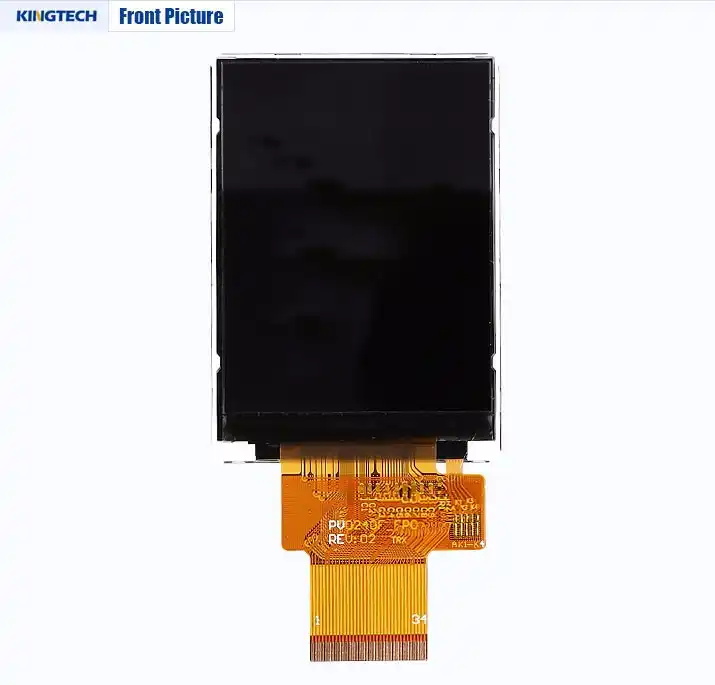

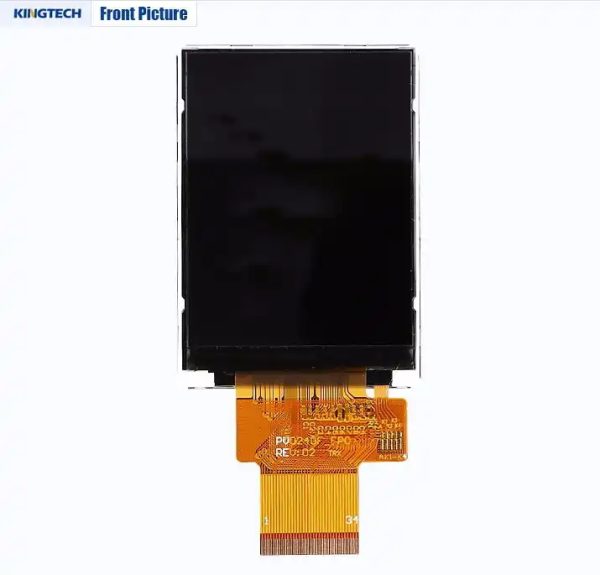

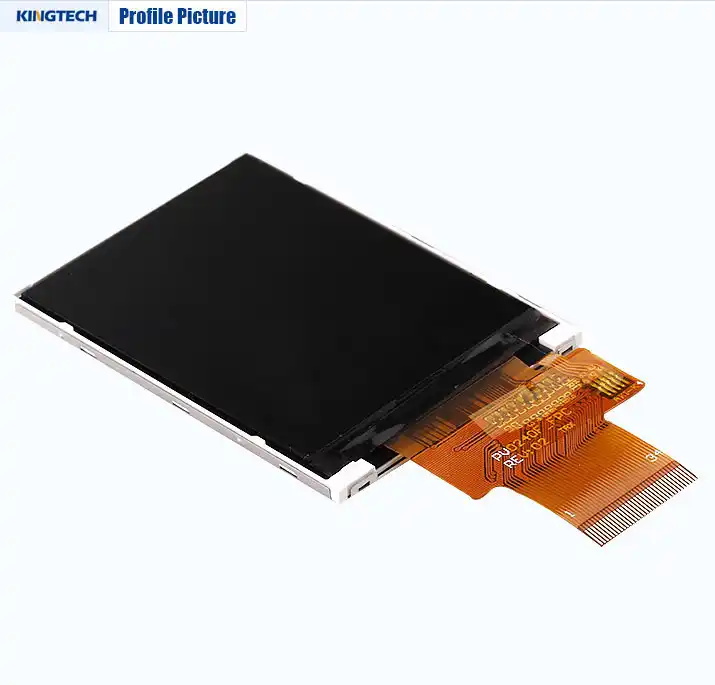

2.4 inch 240*320 resolution TFT LCD display

2.4 inch 240*320 resolution TFT LCD display

Key Features:

Display Size: 2.4 inch diagonal
Resolution: 240×320 (QVGA)
Display Type: IPS panel for full viewing angle
Brightness: 250 nits (suitable for indoor and low-light environments)
Interface: 16-bit MPU parallel interface
Driver IC: ILI9341V – widely supported and highly compatible
Backlight: 1*4LED array for uniform illumination
Touchscreen: Customizable with resistive or capacitive touch panels
Operating Temp: -20°C to 70°C, suitable for most industrial environments
Storage Temp: -30°C to 80°C

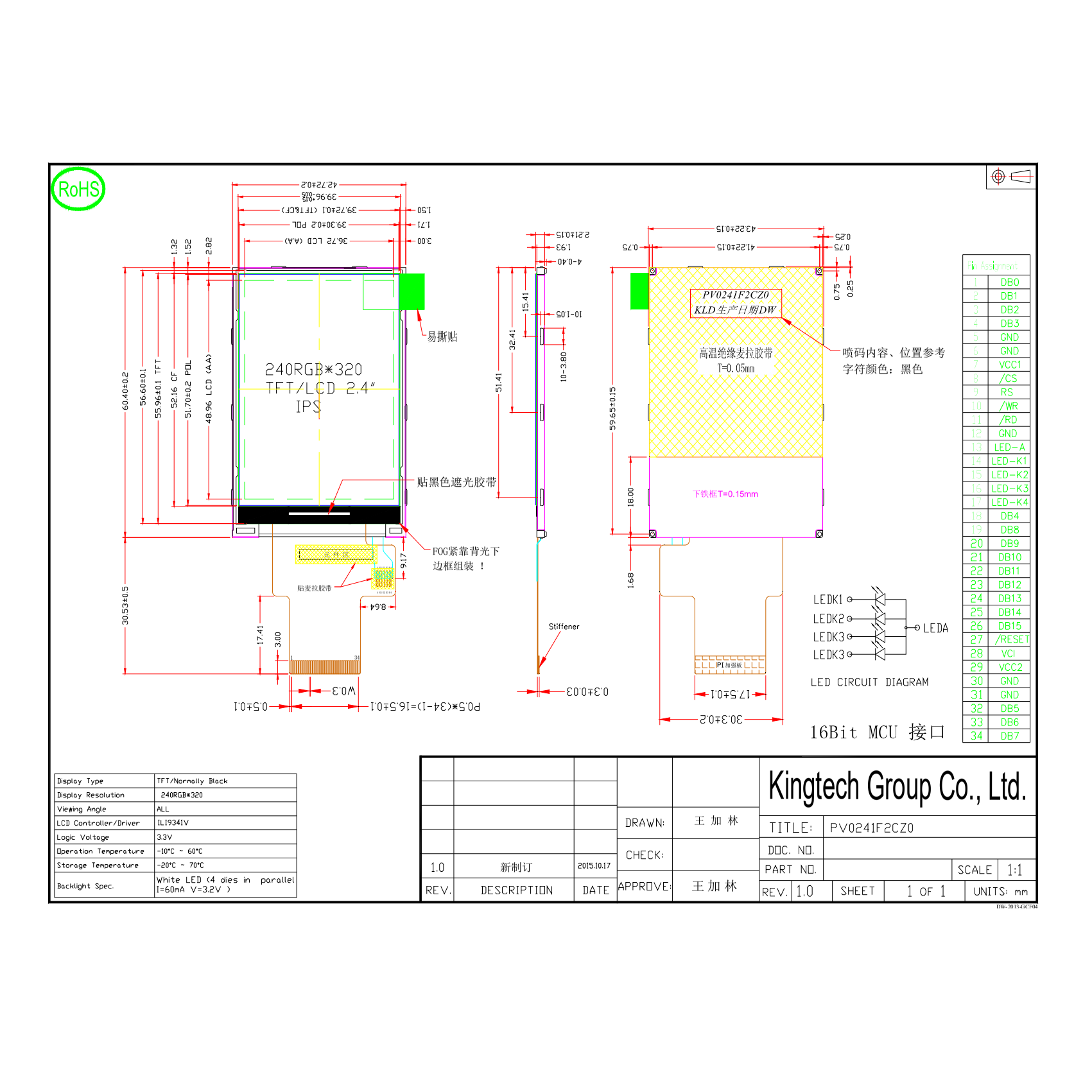

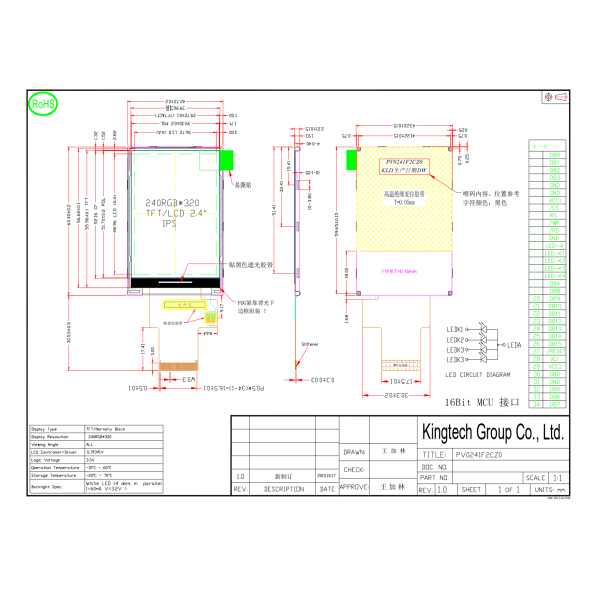

Dimensions: 60.4mm x 42.72mm x 2.21mm
Active Area: 48.96mm x 36.72mm
Pin Count: 34-pin configuration

Applications:

Portable medical equipment
Industrial handheld terminals
Smartwatches and wearable devices
Measurement instruments and control panels

For product pricing,customization,or other inquiries:

Share to:

Description

Overview:
The PV0241F2CZ0 is a high-quality 2.4 inch IPS TFT LCD module offering a 240×320 QVGA resolution and a 16-bit MPU interface. Designed for stable, clear, and reliable visual performance, it is ideal for integration into industrial handheld equipment, medical devices, smart wearables, and compact user interfaces.

Customization Options:

Capacitive/Resistive touchscreen integration
Brightness or interface adjustment
Optional FPC design modification
OEM/ODM logo printing and packaging available

Why Choose This Module:
The PV0241F2CZ0 is engineered for long-term reliability, low power consumption, and outstanding image clarity. Its compact size and wide compatibility make it a practical choice for embedded display applications that require a stable, cost-effective solution.
