2.4 inch 240*320 games java ili9341 touch screen

Item2.4 inch 240×320 touch screen
Model NoPV2411HZ40L-CO
Resolution240×320
Outline Dimension44.23*76.73*3.33
Active Area(mm)36.72*48.96
InterfaceMCU Interface
Viewing AngleAll
Driver ICILI9341V
Display ModeTransmissive / Normally Black
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Brightness640nits
Touch screencapacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

2.4 inch 240×320 touch scrren IPS TFT LCD display

1. PV2411HZ40L-CO mainly application for handheld device , Industrial ,medical equipment .
2. It with 240X320 resolution QVGA , MPU interface , IPS viewing angle , ILI9341V driver IC, 640 nits high brightness, with capacitive touch opital bonding .
3. It also can custom  touch panel, interface and brightness as customer ‘s requirement .
4. It is high brightness can be sunlight readable , it can be well used for both indoor and outdoor.

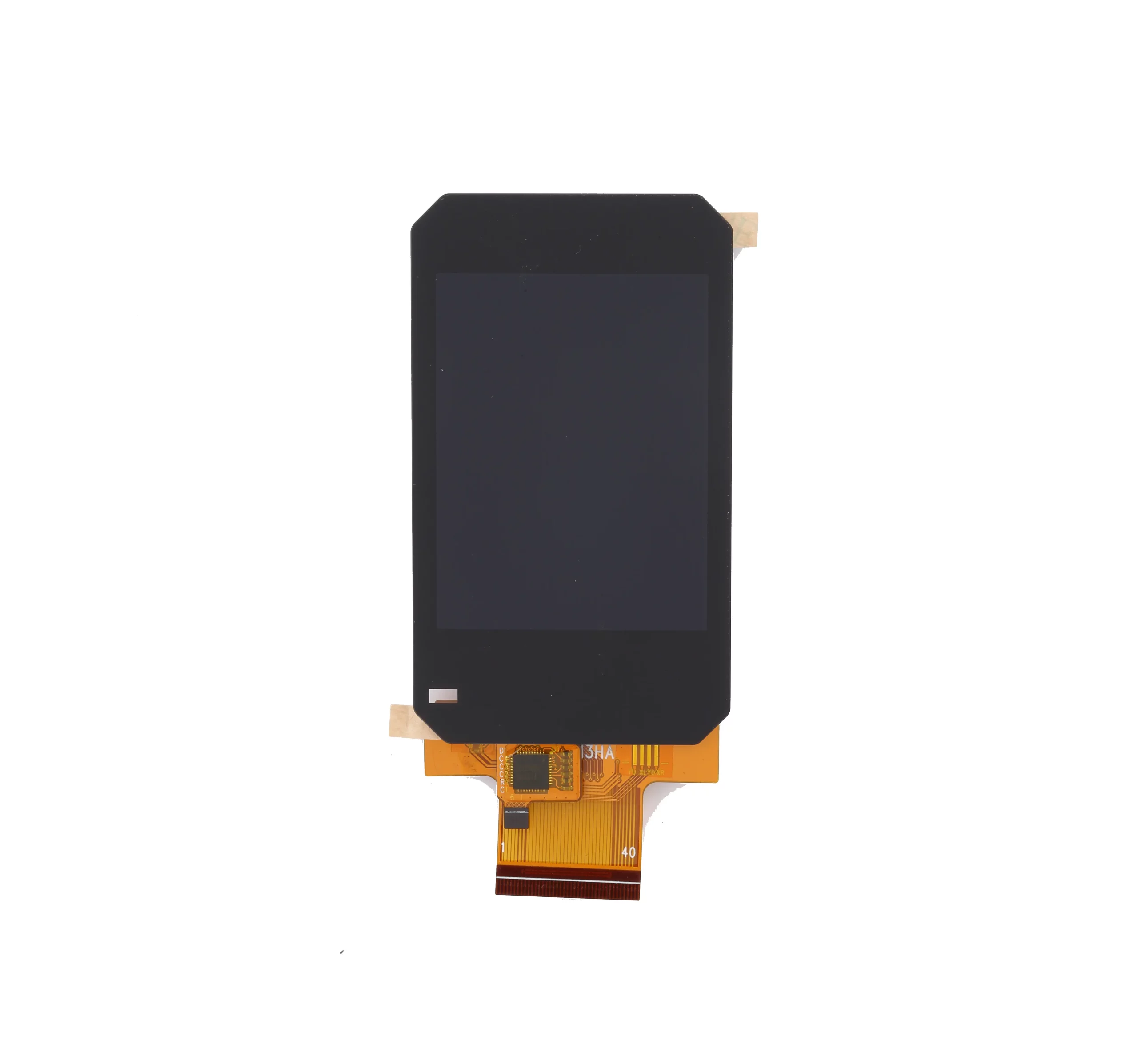

2.4 ” touch screen 240×320 front view

IMGL8546

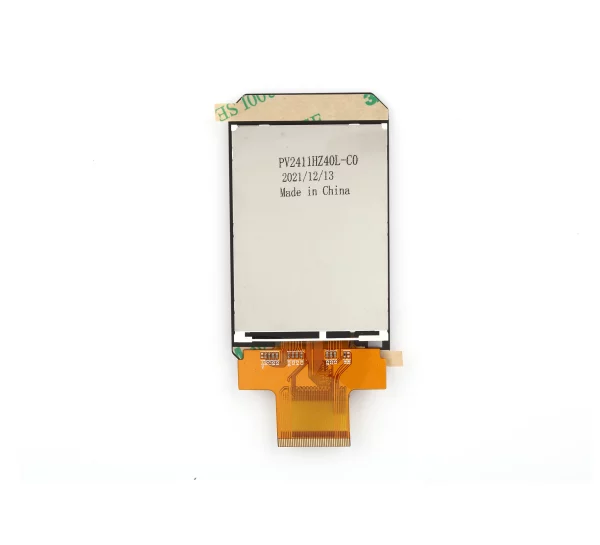

2.4 ” LCD display back view

IMGL8549
