Outdoor active matrix ips tft module display 1024×600 lcd 7

Item 7.0 inch IPS 1024×600 TFT module display
Model NoPV07025LZR50A
Resolution 1024×600
Outline Dimension 164.90(W)*100.00(H)*5.6(T)
Active Area(mm)154.21(W)*85.92(H)
Interface 24-bit Parallel RGB Interface
Viewing AngleAll
Display Mode TFT/TRANSMISSIVE
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness1000nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 resolution TTL/RGB interface IPS LCD display
1.PV07028LSB40D mainly application for  Industrial ,medical equipment .
2.It with 800X480 resolution , TTL/RGB interface ,wide work temperature -30~85 degrees , square 1:1 pixel
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

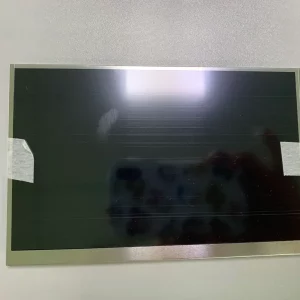

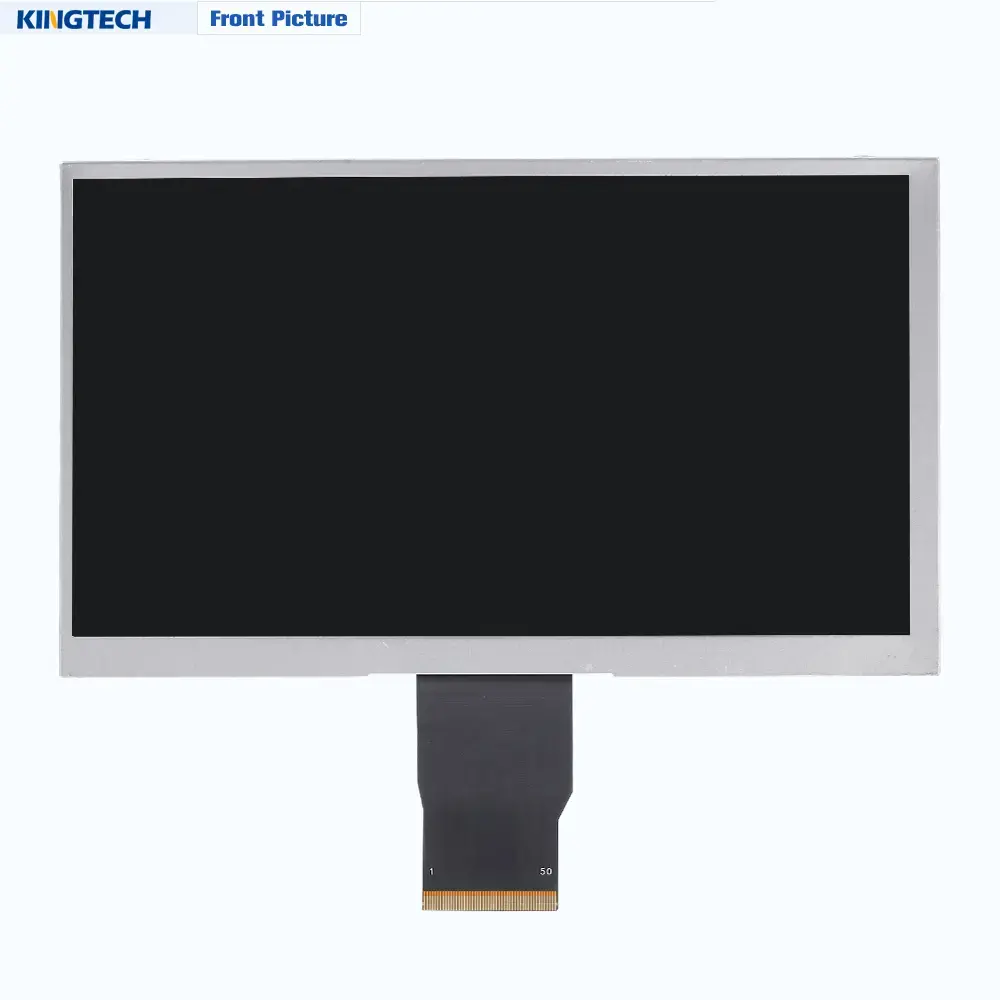

7.0 inch IPS 1024×600 TFT module display Front view



7.0 inch IPS 1024x600 TFT module display

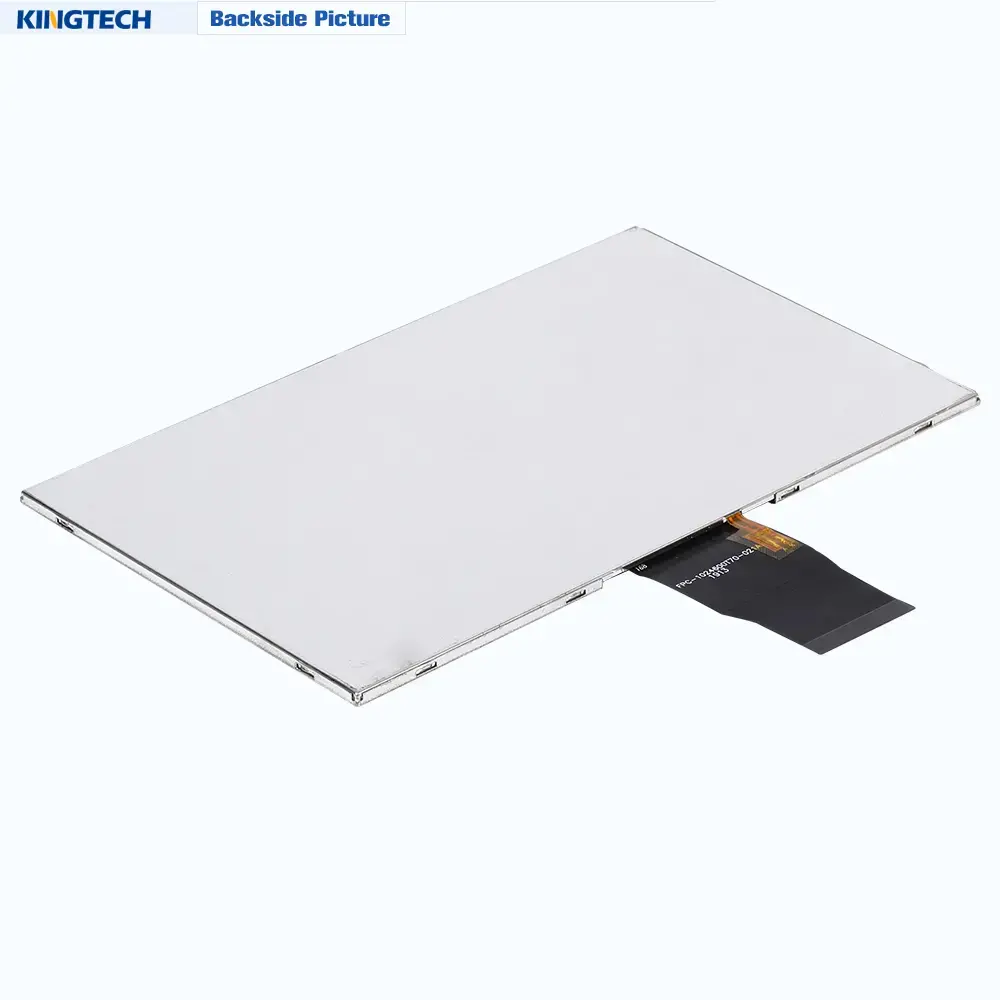

7.0 inch IPS 1024×600 TFT module display back view

7.0 inch IPS 1024x600 TFT module display

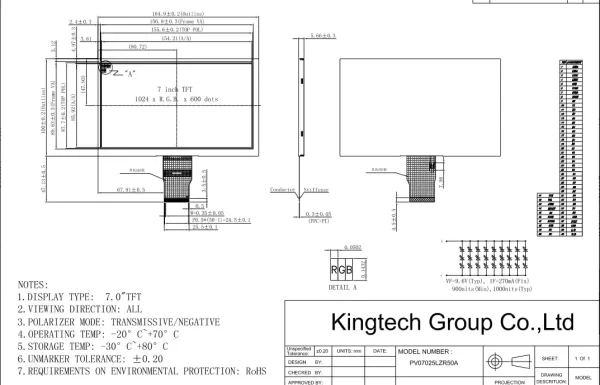

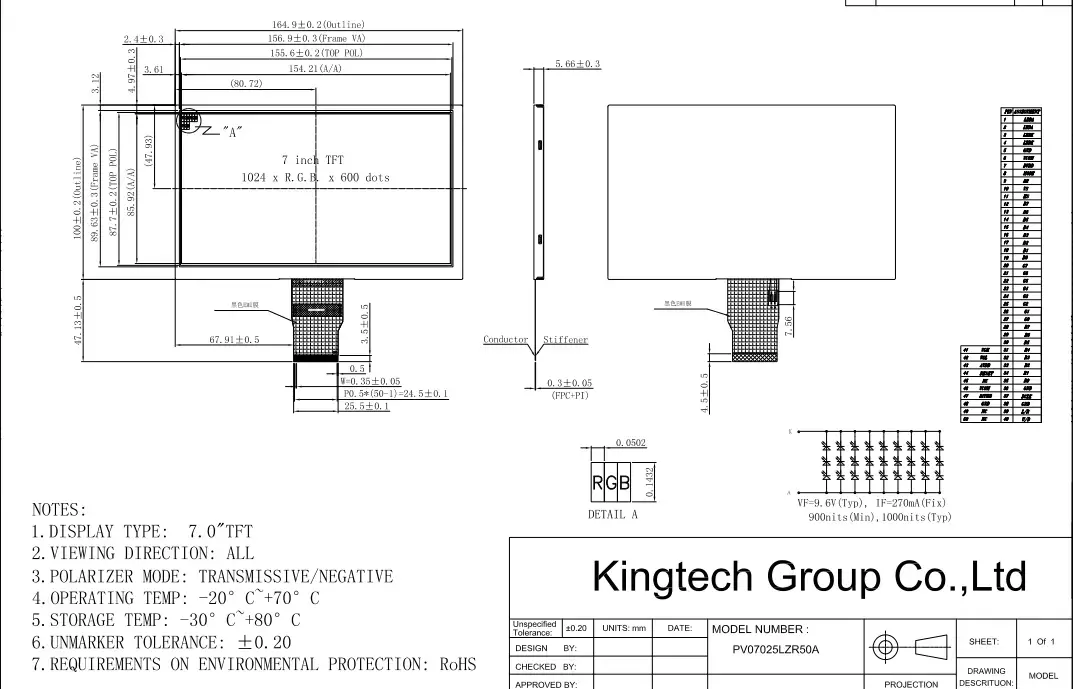

7 inch lcd display Machine Drawing

7.0 inch IPS 1024x600 TFT module display
