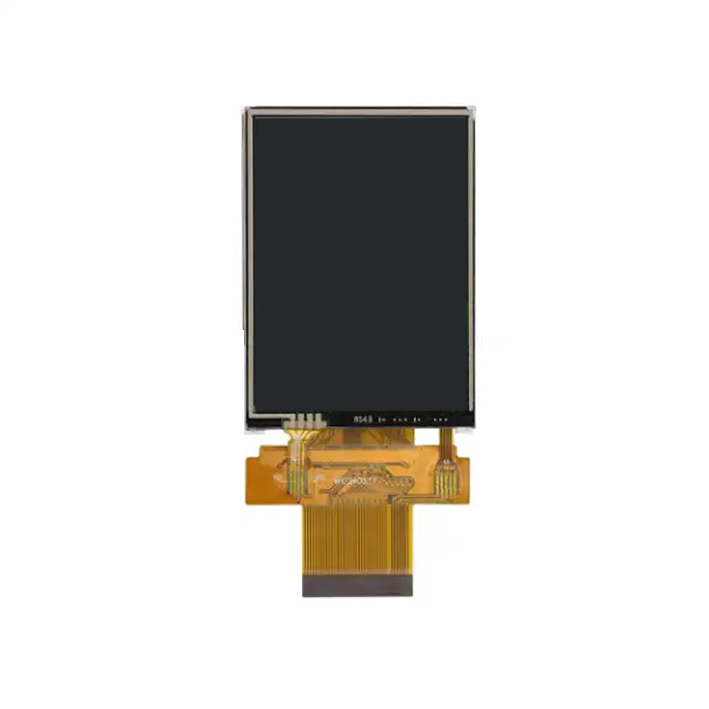

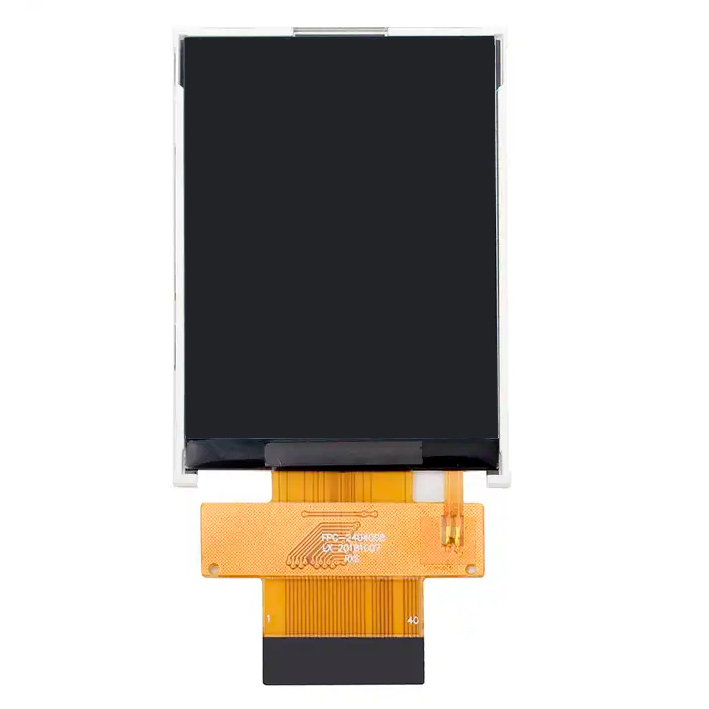

2.4 inch 240*320 resolution LCD display

Item2.4 inch  240*320 resolution SPI LCD display

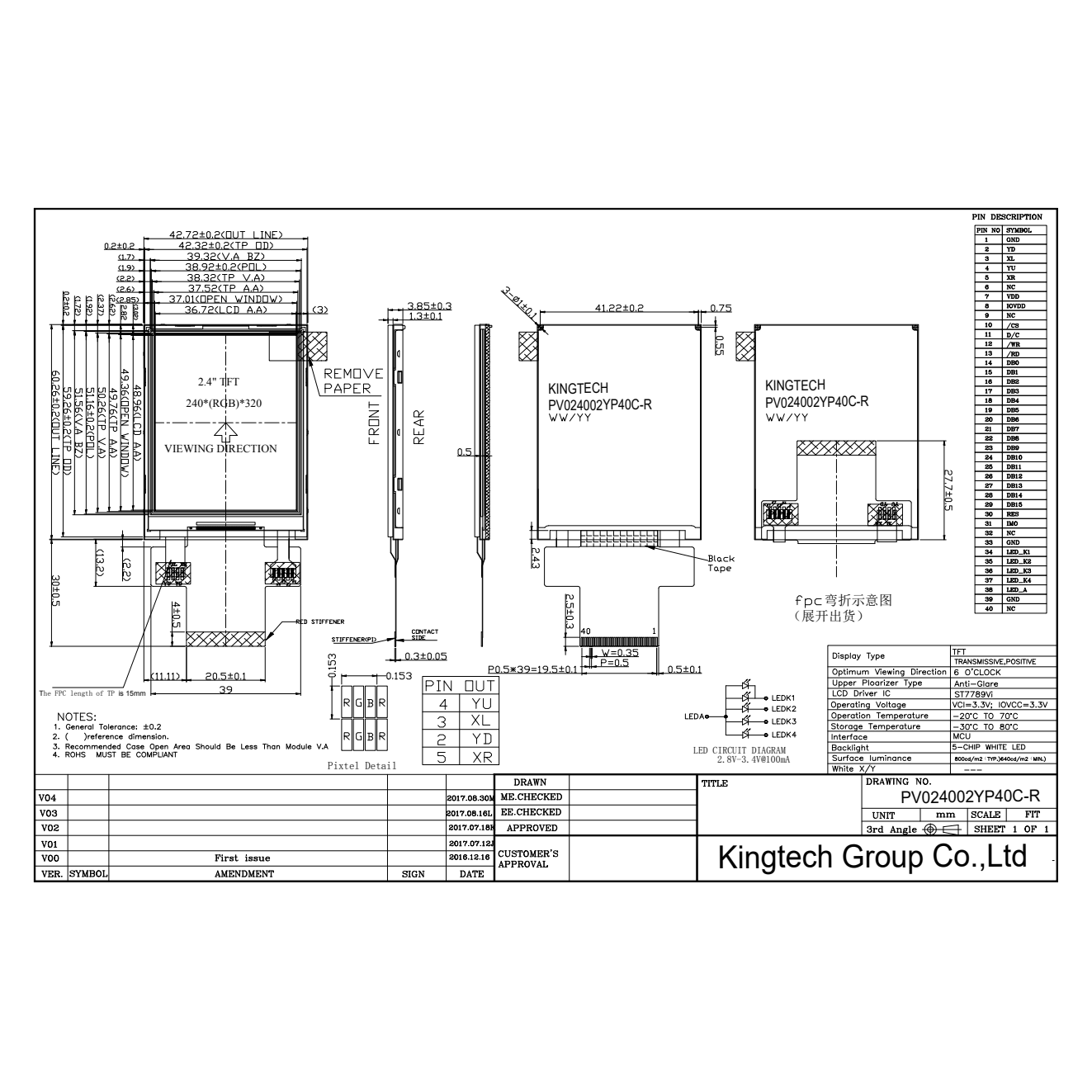

Model No.PV024002YP40C-R
Resolution240*320
Outline Dimension (mm)42.72*60.26*3.85
Active Area (mm)48.96*36.72
Viewing Angle6 O’clock
Brightness800nits
InterfaceMCU
Backlight1*5LED
Driving ICST7789VI
PIN No.40
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationMedical, hand-held device, industrial, smart watch

For product pricing,customization,or other inquiries:

Share to:

  1. TFT lcd display
  2. Stable supply
  3. QVGA resolution
  4. High brightness/outdoor/Sunlight readable
  5. Can custom resistive touch and capacitive touch
  6. Medical, hand-held device, industrial, out door application, charging station, forklift

2.4 inch 240*320 LCD display 2.4 inch 240*320 LCD display

2.4 inch 240*320 LCD display
